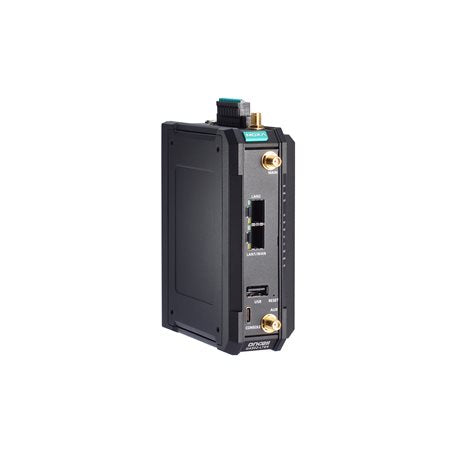

MOXA OnCell G4302-LTE4-AU Industrial Cellular Router

MOXA OnCell G4302-LTE4-AU Industrial Cellular Router
$2,243.00 CAD
$2,243.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Integrated LTE Cat. 4 module with US/EU/APAC band support
  • Cellular link redundancy with dual-SIM GuaranLink support
  • Supports WAN redundancy between cellular and Ethernet
  • Support MRC Quick Link Ultra for centralized monitoring and remote access to the on-site devices
  • Visualize OT security with the MXsecurity management software
  • Power management support for wake-up time scheduling or digital input signals, suitable for vehicle ignition systems
  • Examine industrial protocol data with Deep Packet Inspection (DPI) technology
  • Developed according to IEC 62443-4-2 with Secure Boot
  • Rugged and compact design for harsh environments
View full details

Description

Data sheet

Specification

Interface:
SIM Card Slots: 2 x Nano SIM
LAN Ports: 2 x RJ45 10/100/1000BaseT(X) Ports
USB Ports: 1 x USB 2.0, Type A
Serial Port: 1 x RS-232/422/485 port
Other Ports: No WAN, FXO/FXS, DSL, Digital Input/Output, Memory card slot, MicroUSB
Cellular Standards:
Cellular Standards: LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
Cellular Antenna Connectors: 2 x SMA female
Network Frequencies:
2G: 900 MHz, 1800 MHz
3G: 2100 MHz, 850 MHz, 900 MHz
4G: 2100 MHz, 1800 MHz, 850 MHz, 2600 MHz, 900 MHz, 700 MHz
Software Specifications:
VPN: No specific details
Firewall: Filters for DDoS, Ethernet protocols, ICMP, IP address, MAC address, and Ports
Routing Redundancy: VRRP
Time Management: NTP Server/Client, SNTP
Management: GuaranLink, Power Management, LLDP, Syslog, MXview One, MXconfig, MXsecurity, Moxa Remote Connect (MRC)
Protocols: HTTP, HTTPS, SSH, DDNS, DHCP Server/Client, SMTP, SNMPv1/v2c/v3, ARP, Telnet, TCP/IP, UDP
Features:
Send and Receive SMS: Yes
3G Phone Calls: No
Create/Edit Phonebook: No
Broadcast Forwarding: IP directed broadcast, broadcast forwarding
Multicast Routing: Static Route
Security:
Encryption: HTTPS
Authentication: Local database, RADIUS, Access Control List
Serial Security: No specific details
Power Requirements:
Power Consumption: 7.6 W (typical), 11.52 W (max.)
Input Voltage: 12 to 48 VDC
Input Current:
0.96 A @ 12 VDC (max.)
0.63 A @ 12 VDC (average)
0.33 A @ 24 VDC (average)
0.18 A @ 48 VDC (average)
Reverse Polarity Protection: Yes
Power Input: Screw-locked terminal block
POE Support: No
Battery: No
LED Indicators:
Indicators: WAN, Power, Internet, Wireless Signal Strength
4G/3G/2G, LAN, SMS, WLAN, WPS: No
Physical Characteristics:
Dimensions: 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
Housing: Metal
Weight: 610 g (1.34 lb)
IP Rating: IP40
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Use: Industrial environment
Certifications:
Certifications: EMC, EMI, EMS, Freefall, Hazardous Locations (IECEx3, ATEX3, Class I Division 23), Railway, NEMA TS2
Carrier Approvals: Verizon, AT&T
Radio Frequency: EN 301 489-1/-19, EN 301 489-1/-52, EN 301511, EN 301908-1/-2/-13
Safety: Shock, Vibration, Road Vehicles
