Moxa

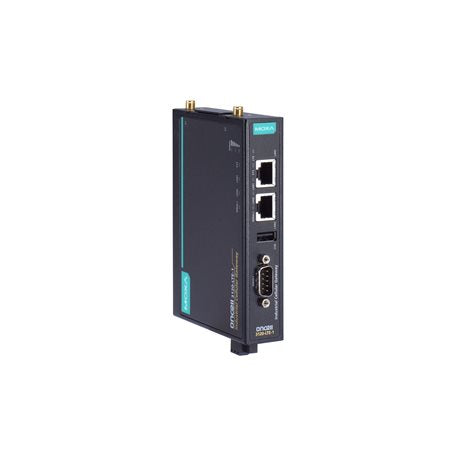

MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway

MOXA OnCell 3120-LTE-1-AU-T Industrial Cellular Gateway

$598.00 CAD
$598.00 CAD
Sale Sold out

Features and Benefits

  • Support MRC Quick Link Ultra for centralized monitoring and remote access to the on-site devices
  • Low power consumption (40 mW in standby)
  • GuaranLink for reliable cellular connectivity
  • Dual cellular operator backup with dual-SIM
  • Cellular WAN and Ethernet WAN backup mechanism for a complete path redundancy
  • Rugged hardware design well suited for hazardous locations (ATEX Zone 2/IECEx)
  • VPN secure connection capability with IPsec, GRE, and OpenVPN protocols
View full details

Description

The OnCell 3120-LTE-1 Series is a set of reliable, secure, low-power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage. These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios. With its efficient power-saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules. To enhance industrial reliability, the OnCell 3120- LTE-1 features GuaranLink to ensure robust cellular connectivity.

Remote Access Gateway with VPN and Network Security
• Managed by centralized IP management software, OnCell Central Manager
• Secure and reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality
• Cybersecurity features based on IEC 62443-4-2

Industrial-grade Reliability
• Rugged hardware design well suited for hazardous locations (ATEX, C1D2, IECEx)
• GuaranLink for reliable cellular connectivity
• Low power consumption: Less than 40 mW in standby mode

Data sheet

Specification

Interface:
SIM Card Slots: 2 SIM card slots
LAN Ports: 2 RJ45 10/100Mbps Ports
Serial Port: 1 RS-232/422/485 port
Other Ports: No WAN, USB, FXO/FXS, Digital Inputs/Outputs, Memory card slot, or MicroUSB
Radio Specifications:
2G/3G/4G Standards: LTE CAT-1, HSPA, UMTS, EDGE, GPRS, GSM
Radio Connection Type: GuaranLink
4G/3G/2G Antennas: 2 SMA female connectors
3G Network Frequency: UMTS/HSPA 2100 MHz / 850 MHz / 900 MHz
4G Network Frequency: LTE Band 3 (1800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 28 (700 MHz)
Software Specifications:
VPN: OpenVPN (client and server), Tunnel mode, TAP mode, 5 Tunnels
Firewall: MAC, IP protocol, port-based, Access IP list filtering
Protocols: SNTP Client, HTTPS, NAT, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3
Management: OnCell Central Manager, GuaranLink, DHCP, DDNS, ARP, Telnet, TCP/IP, UDP, Syslog, SNMPv1/v2c/v3
Security:
Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5
Authentication: PSK/X.509/RSA
Power Requirements:
Power Consumption: 5 W (typical)
Power Input Type: Terminal block
POE Support: No
Battery: No
LED Indicators:
Indicators: 4G/3G/2G, LAN, Power, Internet
Physical Characteristics:
Dimensions: 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)
Weight: 550 g (1.22 lb)
Operating Temperature: -30 to 70°C (32 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Use: Industrial environment
Standards and Certifications:
EMC, EMI, EMS
Freefall, ATEX, IECEx
Class I Division 2, FCC, PTCRB
EN 301489-1/17, EN 301511, EN 301908-1, AS/CA S042, EN 62311 (MPE SAR, Safety, Shock, Vibration)
