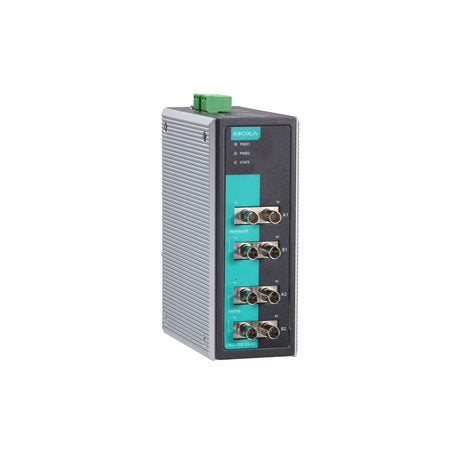

MOXA OBU-102-SS-ST Optical Fiber Bypass Unit

MOXA OBU-102-SS-ST Optical Fiber Bypass Unit
$2,589.00 CAD
$2,589.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Supports Fast, Gigabit, and 10 Gigabit Ethernet fiber connections in SC/ST/LC connectors
  • Redundant dual 12/24/48 VDC power inputs
  • IP30 metal housing
  • -20 to 70°C operating temperature range
  • DIN-rail mounting ability
  • Ultra-low power consumption 0.72 W
View full details

Description

Data sheet

Specification

Bypass Properties:
Optical Switching Time: 10 ms (max)
Insertion Loss: 1.6 dB (max)
Power Parameters:
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Ports: 4 x Single-Mode Fiber, ST Female Connector
Input Current: 0.1 A @ 48 VDC
Reverse Polarity Protection: Yes
Physical Characteristics:
Housing: Metal
IP Rating: IP30 (Protection against solid objects over 2.5mm, but no protection against water)
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety, EMC, EMI, EMS
IEC 60068-2-31: Vibration
IEC 60068-2-27: Shock
IEC 60068-2-6: Vibration
