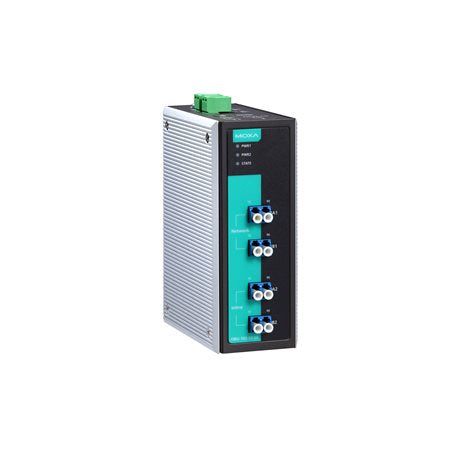

MOXA OBU-102-SS-LC OPTICAL FIBER BYPASS UNIT

MOXA OBU-102-SS-LC OPTICAL FIBER BYPASS UNIT

$2,228.00 CAD
$2,228.00 CAD
Sale Sold out

Features and Benefits

  •  Supports Fast, Gigabit, and 10 Gigabit Ethernet fiber connections in SC/ST/LC connectors
  •  Redundant dual 12/24/48 VDC power inputs
  •  IP30 metal housing
  •  -20 to 70°C operating temperature range
  •  DIN-rail mounting ability
  •  Ultra-low power consumption 0.72 W
View full details

Description

Moxa’s OBU-102 fiber-optic bypass units add bypass relay functionality to any network node. In linear topologies, a single power outage or node failure can take out an entire chunk of the network, because communications to all the network nodes further down the line are also cut. With relay bypass, that node is bypassed in the event of a failure, and the rest of the network is unaffected.

The OBU-102 Series sits between a node and the network to add bypass relay functionality to any network switches that do not already support this important function. In normal operations, the OBU-102 Series acts as a gateway that forwards network traffic to and from the network switch. However, if power is lost, the OBU-102 will bypass the unpowered switch and simply pass network traffic to the next switch in the relay.

Data sheet

Specification

Single-Mode Fiber: LC Female Connector x 4
Optical Switching Time: 10 ms (max.)
Insertion Loss: 1.6 dB (max.)
Boot Delay Interval: 10 steps, each step represents a 5 second delay
Power Parameters:
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Input Current: 0.1 A @ 48 VDC
Reverse Polarity Protection: Supported
Physical Characteristics:
Housing: Metal
IP Rating: IP30
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 700 g (1.54 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature: -20 to 70°C (-4 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Safety: UL 508
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Freefall: IEC 60068-2-31
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Warranty Period: 2 years
