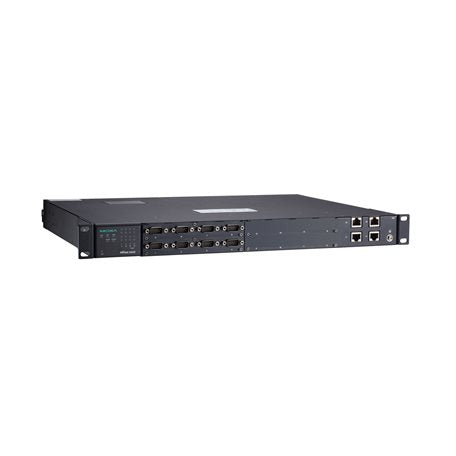

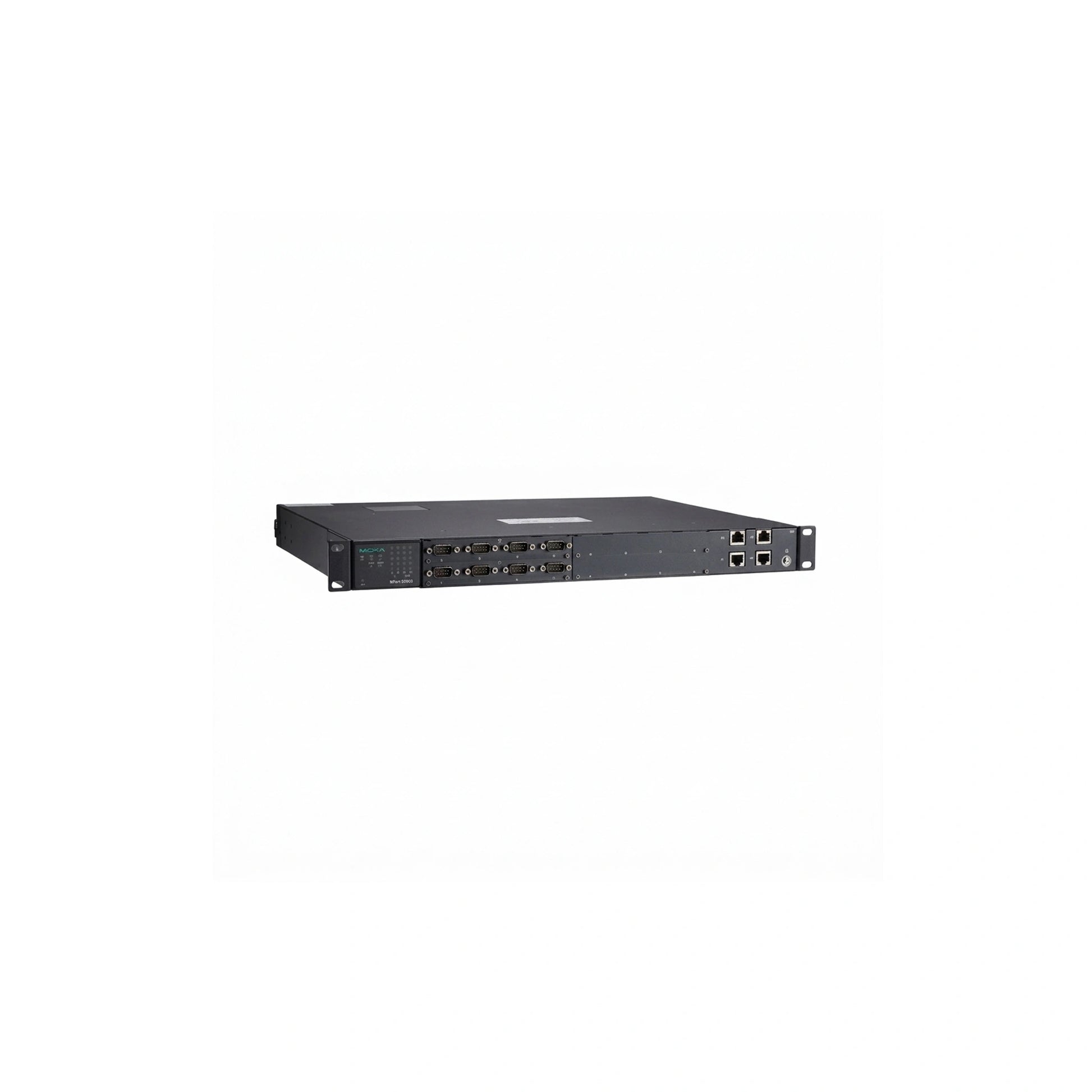

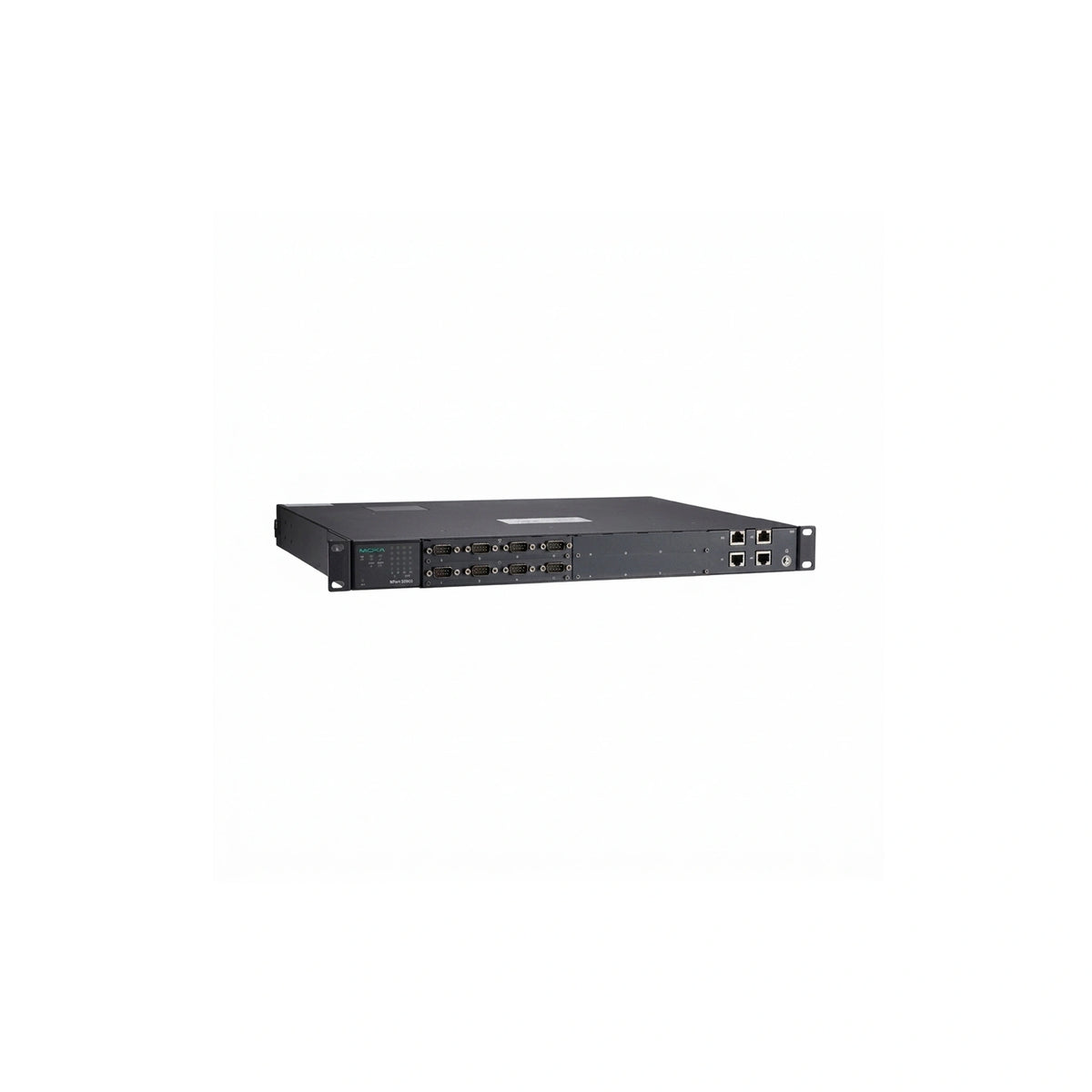

MOXA NPort S9650I-8-2HV-E-T Serial to Ethernet Device Server

MOXA NPort S9650I-8-2HV-E-T Serial to Ethernet Device Server
$4,973.00 CAD
$4,973.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 4 x 10/100BaseT(X) Ports (RJ45 connector)
  • 8 x RS-232/422/485 Serial ports (DB9 male connector)
  • 110/220 VAC/VDC dual power inputs
  • Metal body design
  • 19-inch rack mounting
  • -40 to 85°C operating temperature range
View full details

Description

The NPort S9450I Series 4-port RS-232/422/485 device servers, which come with a built-in full-function managed Ethernet switch, are designed specifically for the harsh environmental conditions found in electrical substations. With both fiber and wired Ethernet ports supported, the combination of device server and Ethernet switch gives users the ability to easily install, manage, and maintain the NPort S9450I itself, as well as attached serial devices.

The NPort S9450I Series supports a high level of surge protection to prevent damage from the types of power surges and EMI one finds in electrical substations and industrial automation applications. Combined with a -40 to 85°C operating temperature range and galvanized steel housing, the NPort S9450I is suitable for a wide range of industrial environments.

Data sheet

Specification

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports : 4 Ports
100BaseFX Ports : No
Digital Input Channels : No
Digital Output Channels : No
Magnetic Isolation Protection : 1.5 kV (built-in)
Alarm Contact Channels : 1 x Channel (Resistive load: 1 A @ 24 VDC)
Protocols : Modbus TCP Server (Slave), DNP3 TCP Outstation, RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2

Serial-to-Ethernet : Serial Interface
Number of Ports : 8 Ports
Serial Standards : RS-232/422/485
Connector : DB9 male
Console Port : RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

Serial-to-Ethernet : Serial Communication Parameters
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark
Flow Control : None, RTS/CTS, XON/XOFF
Baudrate : 50 bps to 921.6 kbps (supports non-standard baudrates)
Isolation : 2 KV

Serial-to-Ethernet : Serial Signals
RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 : Tx+, Tx-, Rx+, Rx
RS-485-4w : Tx+, Tx-, Rx+, Rx
RS-485-2w : Data+, Data-, GND

Serial-to-Ethernet : Communication details
Wireless Standards : No
Maximum data transfer speed : No
Maximum direct range : No

Serial-to-Ethernet : Power Requirements
Connection : -
Input Voltage : 110/220 VAC/VDC (100 to 240 VAC, 100 to 250 VDC)
Input Current : 0.65 A @ 100 VAC, 0.47A @ 100 VDC

Serial-to-Ethernet : General
Management : DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console
MTBF : 224,670 hrs
Compatible operating systems : Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers : SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers : Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Automatic Reboot Trigger : Built-in WDT

Serial-to-Ethernet : Security
Authentication : No
Security : HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
Encryption : No

Serial-to-Ethernet : Features and capabilities
Display : No

Serial-to-Ethernet : Physical Characteristics
Dimensions : 457 x 32 x 330 mm (18 x 1.25 x 12.99 in)
Standards and Certifications : EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Environmental Testing: IEC 60068-2-2, IEC 60068-2-14; Power Substation: IEC 61850-3, IEEE 1613; Safety: EN 61010-2-201, UL 61010-2-201; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
Installation : 19-inch rack mounting
Housing : Metal
Operating Temperature : -40 to 85°C (-40 to 185°F)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : Product only: 5.15 kg (11.35 lb)
