Moxa

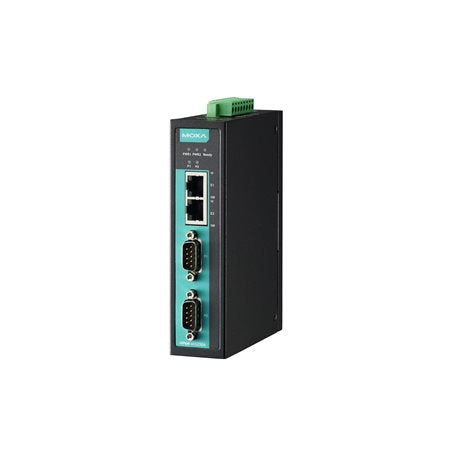

MOXA NPORT IA5250AI-T SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT IA5250AI-T SERIAL TO ETHERNET DEVICE SERVER

$883.00 CAD
$883.00 CAD
Sale Sold out

Features and Benefits

  • 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
  • C1D2, ATEX, and IECEx certified for harsh industrial environments
  • Cascading Ethernet ports for easy wiring
  • Enhanced surge protection for serial, LAN, and power
  • Screw-type terminal blocks for secure power/serial connections
  • Redundant DC power inputs
  • Warnings and alerts by relay output and email
  • 2 kV isolation for serial signals (isolation models)
  • -40 to 75°C operating temperature range (-T models)

View full details

Description

The NPort IA5000A device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Data sheet

Specification

Number of Ports: 2
Serial Standards: RS-232, RS-422, RS-485
Connector: DB9 male (RS-232/422/485)
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Input Voltage: 12 to 48 VDC
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Standards: Telcordia (Bellcore) Standard TR/SR
Magnetic Isolation Protection: 1.5 kV (built-in)
Safety: UL 508
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: Various standards including IEC series
Housing: Metal
Storage Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
