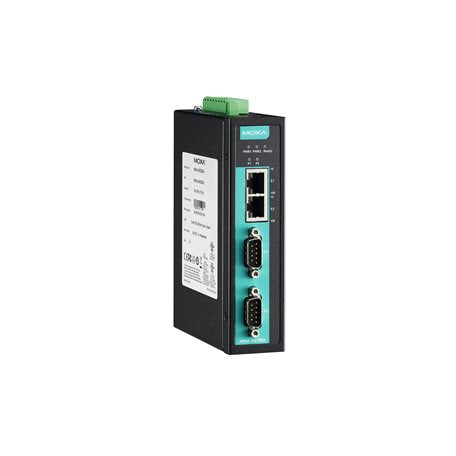

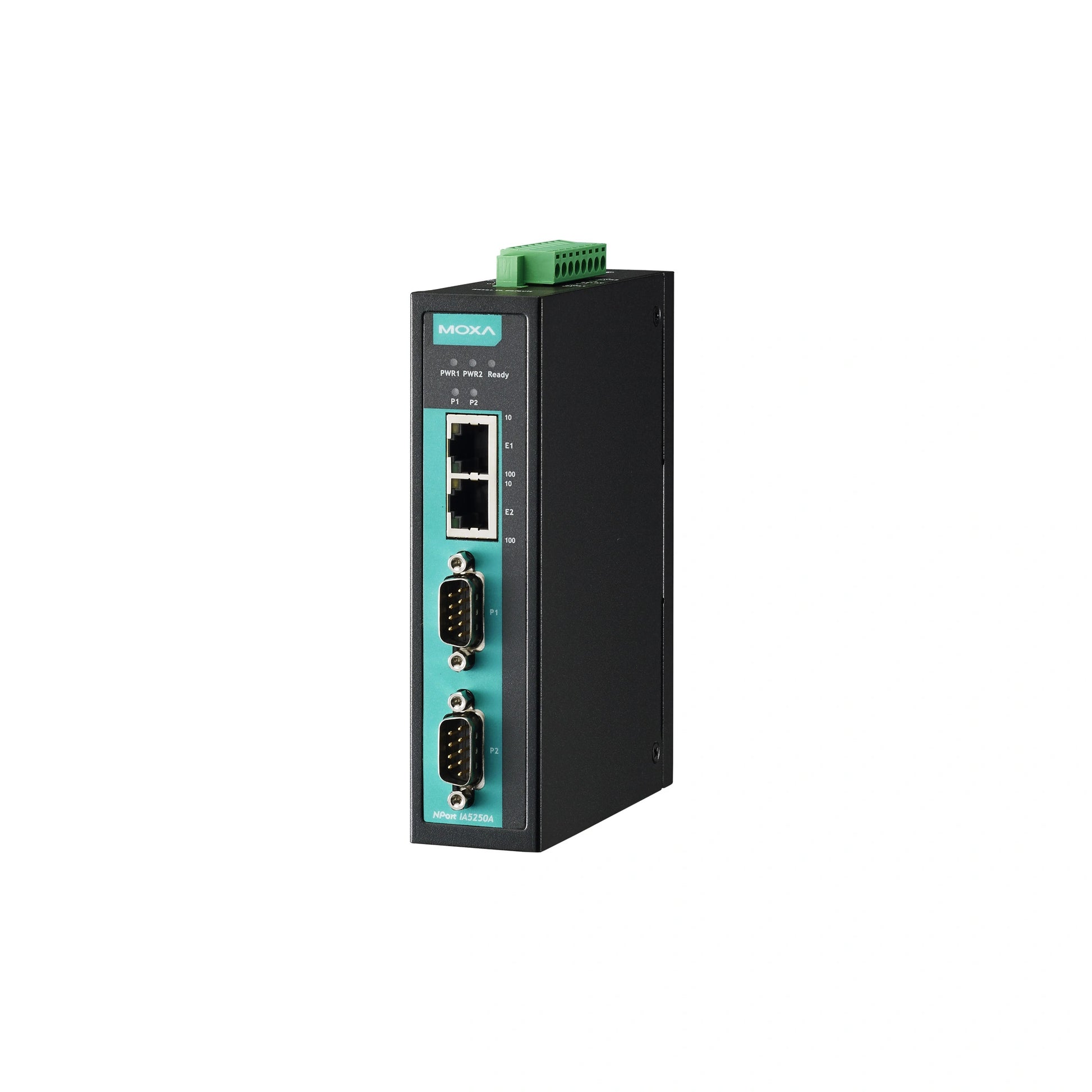

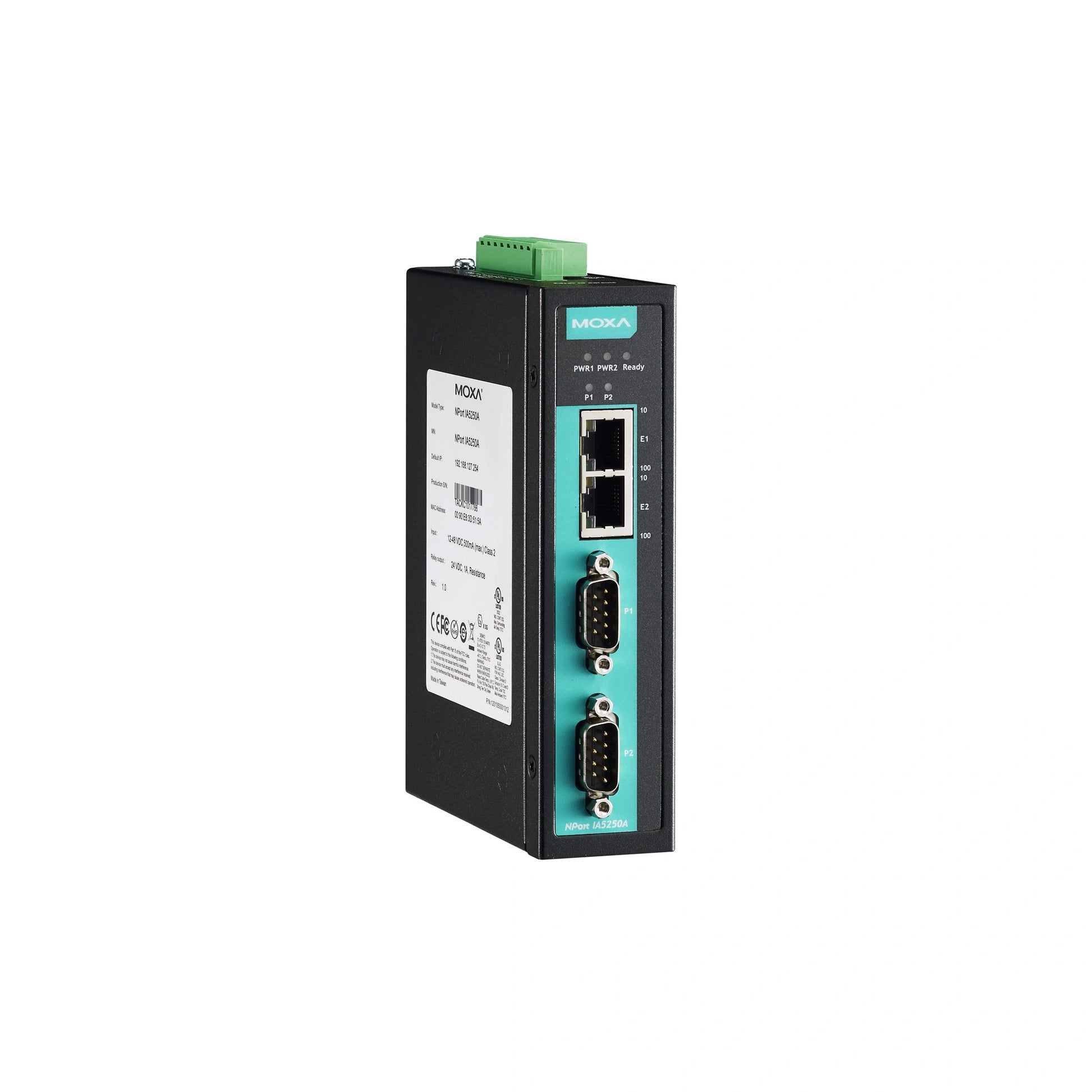

MOXA NPort IA5250AI-T-IEX Serial to Ethernet Device Server

MOXA NPort IA5250AI-T-IEX Serial to Ethernet Device Server
$1,276.00 CAD
$1,276.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x RS-232/422/485 Serial Ports (DB9-M connector)
  • 2 KV Isolation protection for serial ports
  • 12 to 48 VDC Redundant dual power inputs
  • Metal body design
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature range
View full details

Description

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.

You can also find the NPort IA5150-T model in the NPort IA5000 Series.

Data sheet

Specification

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports : 2 Ports
100BaseFX Ports : No
Digital Input Channels : No
Digital Output Channels : No
Alarm Contact Channels : No
Magnetic Isolation Protection : 1.5 kV (built-in)
Protocols : -

Serial-to-Ethernet : Serial Interface
Number of Ports : 2 Ports
Serial Standards : RS-232/422/485
Connector : DB9 male
Console Port : No

Serial-to-Ethernet : Serial Communication Parameters
Baudrate : Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : Even, Odd, Space, Mark, None
Flow Control : RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF, None
Isolation : 2 KV

Serial-to-Ethernet : Serial Signals
RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 : Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w : Data+, Data-, GND

Serial-to-Ethernet : Communication details
Wireless Standards : No
Maximum data transfer speed : No
Maximum direct range : No

Serial-to-Ethernet : General
Management : ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Compatible operating systems : Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers : SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers : Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
MTBF : 262,805 hrs
Automatic Reboot Trigger : -

Serial-to-Ethernet : Power Requirements
Connection : Terminal block
Input Voltage : 12 to 48 VDC
Input Current : 290 mA @ 12 VDC

Serial-to-Ethernet : Security
Security : Protocols: HTTPS (TLS 1.2)
Encryption : HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Authentication : Local database

Serial-to-Ethernet : Features and capabilities
Display : No

Serial-to-Ethernet : Physical Characteristics
Dimensions : 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)
Installation : DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications : EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx; Safety: UL 508; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Housing : Metal
Operating Temperature : -40 to 75°C (-40 to 167°F)
Storage Temperature : -40 to 75°C (-40 to 167°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : 485 g (1.07 lb)
