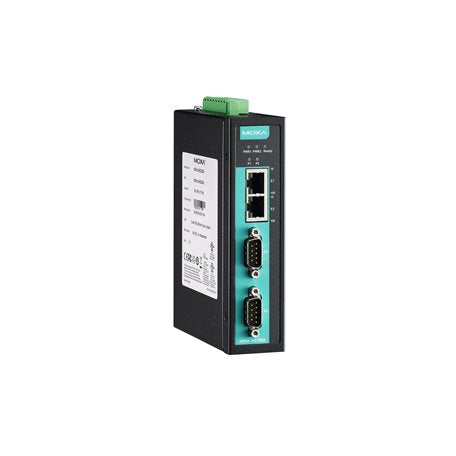

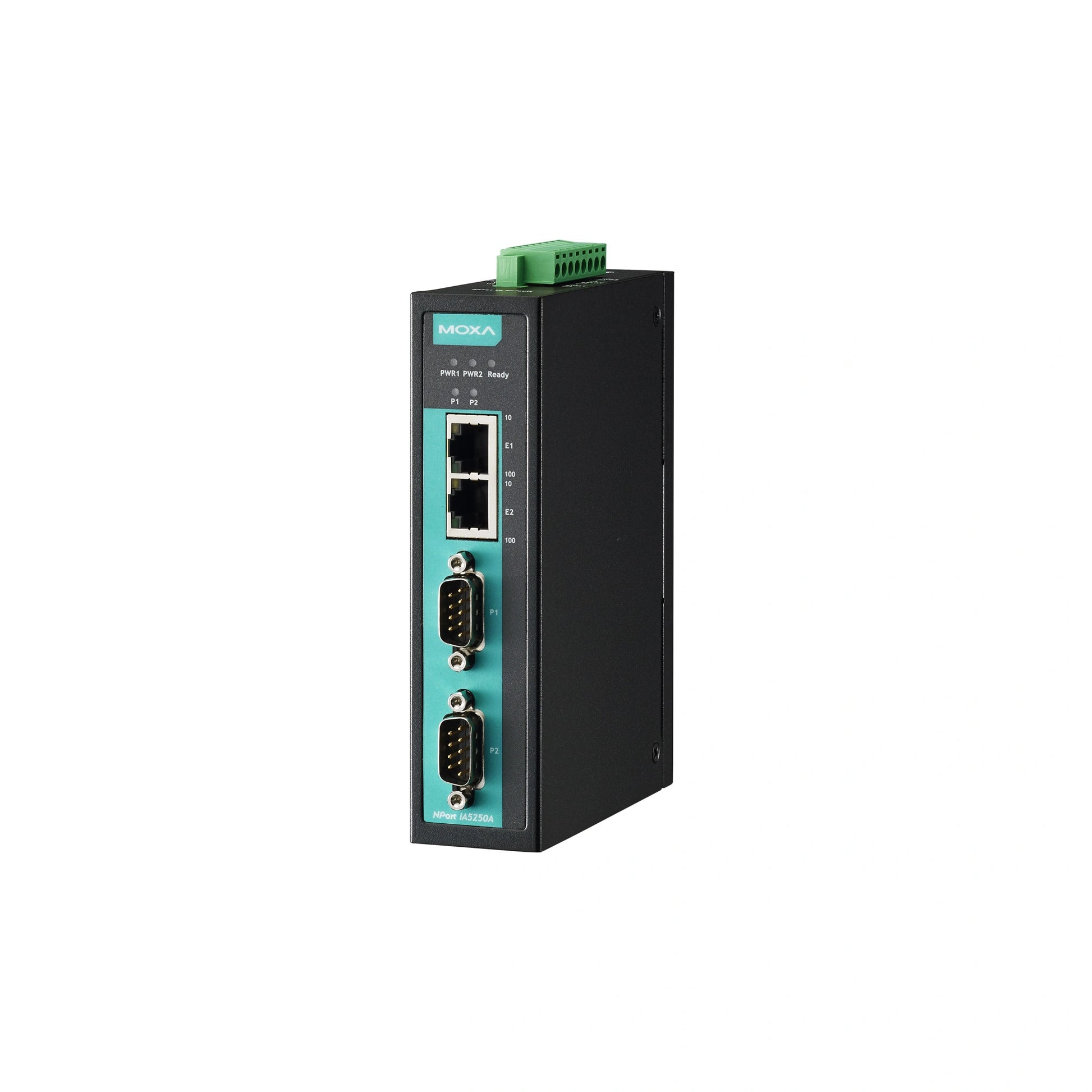

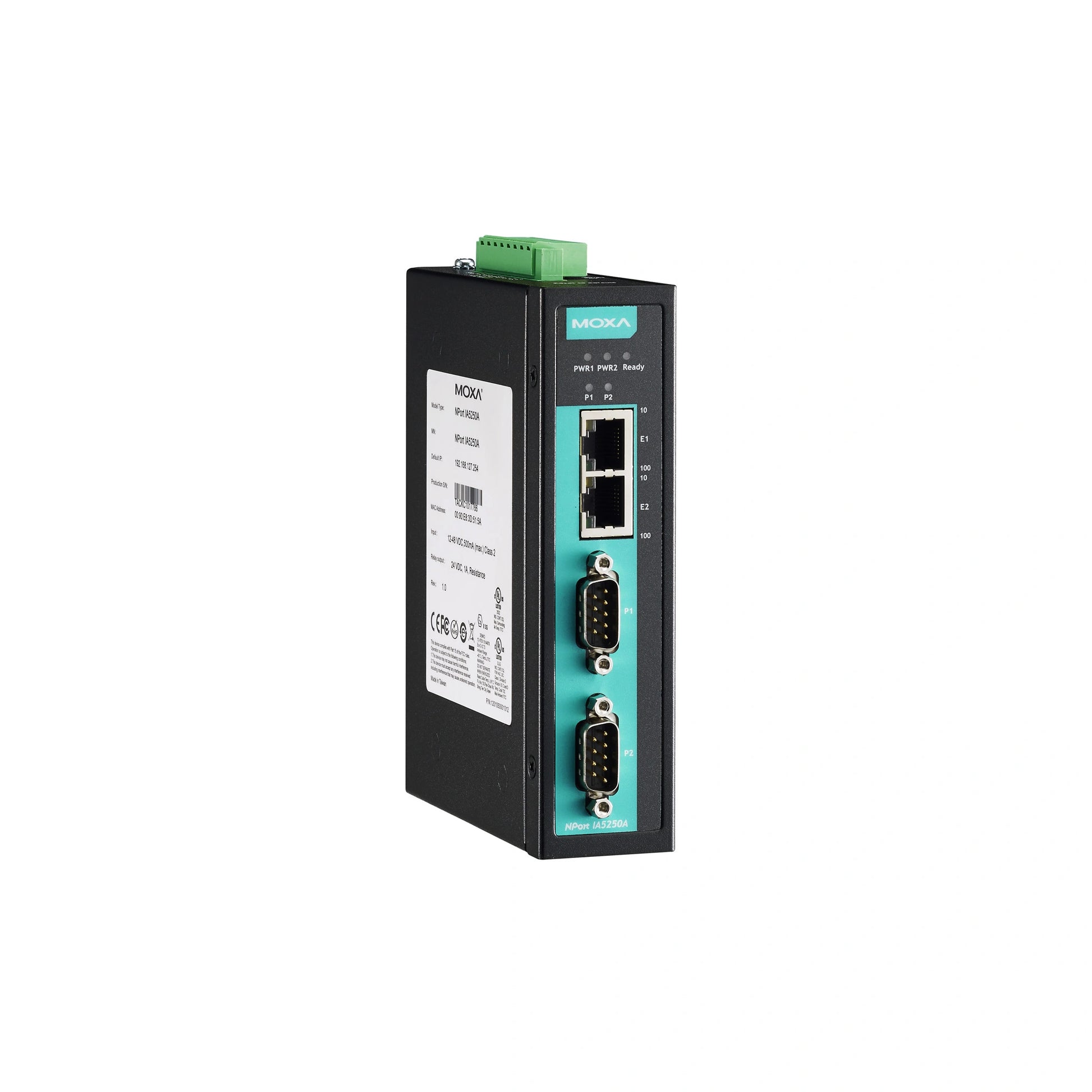

MOXA NPort IA5250A-T-IEX Serial to Ethernet Device Server

MOXA NPort IA5250A-T-IEX Serial to Ethernet Device Server

$593.00 CAD
$593.00 CAD
Sale Sold out

Features and Benefits

  • 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
  • C1D2, ATEX, and IECEx certified for harsh industrial environments
  • Cascading Ethernet ports for easy wiring
  • Enhanced surge protection for serial, LAN, and power
  • Screw-type terminal blocks for secure power/serial connections
  • Redundant DC power inputs
  • Warnings and alerts by relay output and email
  • 2 kV isolation for serial signals (isolation models)
  • -40 to 75°C operating temperature range (-T models)
View full details

Description

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.

You can also find the NPort IA5150-T model in the NPort IA5000 Series.

Data sheet

Specification

Number of Ports: 2
Serial Standards: RS-232, RS-422, RS-485
Connector: DB9 male (RS-232), Terminal Block (RS-422/485)
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Input Voltage: 12 to 48 VDC
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Magnetic Isolation Protection: 1.5 kV (built-in)
Standards: Telcordia (Bellcore) Standard TR/SR
Safety: UL 508
EMC: EN 55032/24c
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
Housing: Metal
Storage Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
