Moxa

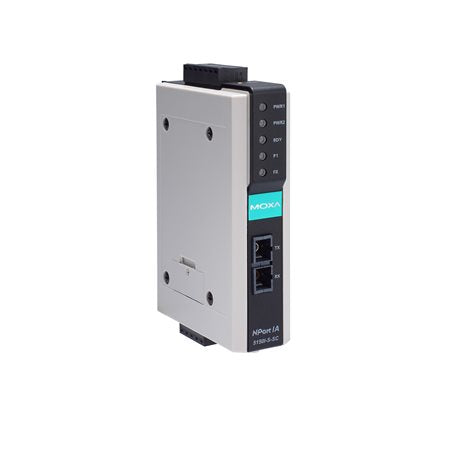

MOXA NPORT IA-5150-S-SC-T SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT IA-5150-S-SC-T SERIAL TO ETHERNET DEVICE SERVER

Regular price $876.00 CAD
Regular price Sale price $876.00 CAD
Sale Sold out

Features and Benefits

  • 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 Serial ports
  • 12 to 48 VDC dual power inputs
  • Plastic body
  • -40 to 75°C operating temperature
  • Relay output warning and Email alerts

      View full details

      Description

      NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.

      Specification

      Ethernet Ports:
      10/100Mb RJ45 (Megabit): 2 Single-mode SC Ports
      Serial Ports:
      RS-232/422/485: 1 Port
      Connection: DB9-M for RS-232 and Terminal Block for RS-422/485
      Communication Parameters: Data Bits (5, 6, 7, 8), Stop Bits (1, 1.5, 2), Parity (None, Even, Odd, Space, Mark)
      Flow Control: RTS/CTS, XON/XOFF, DTR/DSR (only RS-232)
      Baudrate: 0.1Kbps to 230.4Kbps
      Management: Web Console, Serial Console, Telnet Console, Windows Utility
      Network protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP
      MTBF: 183,747 hours
      Operating Systems Compatibility: Windows 95 to Windows 10, Windows Server 2003 to 2012, Windows Embedded platforms, SCO Unix, UnixWare, SVR, QNX, Solaris, FreeBSD, AIX, HP-UX.
      Linux Real TTY Drivers: 2.4.x to 3.x
      Power Consumption: 12V DC, 0.238A to 48V DC
      Reset: Automatic Restart with WDT
      Alarm Features: Relay Output Warning, E-mail Alerts, Built-in buzzer and RTC
      Protection & Safety: UL 508, UL 60950-1, LAN port magnetic protection at 1.5KV
      EMI: CISPR 22, FCC Part 15B Class A
      EMS: Various IEC standards
      Marine Certification: DNV
      Housing: Plastic
      Operation Humidity: 5% to 95% RH non-condensing
