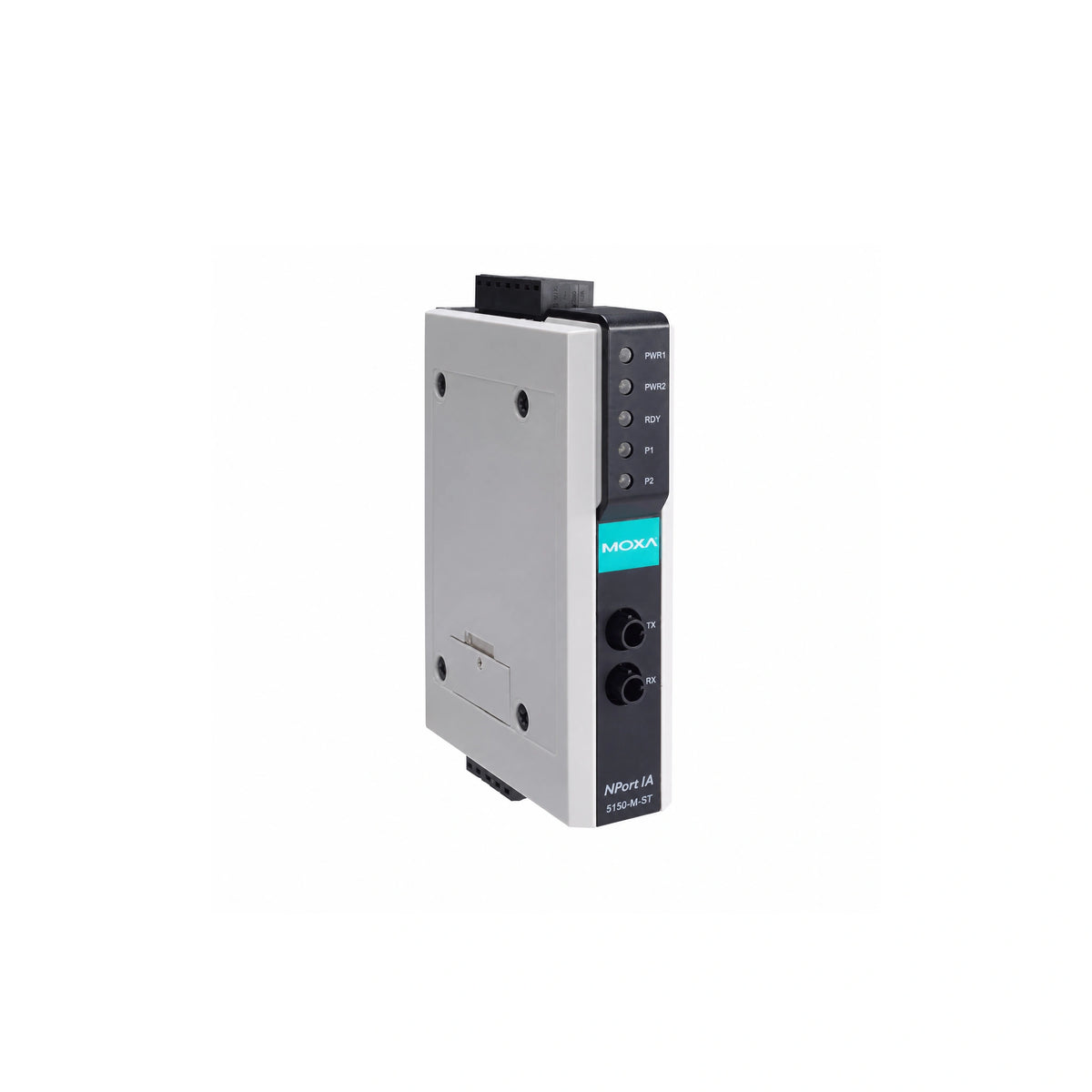

MOXA NPort IA-5150-M-ST-T Serial to Ethernet Device Server

MOXA NPort IA-5150-M-ST-T Serial to Ethernet Device Server

$530.00 CAD
$530.00 CAD
Sale Sold out

Features and Benefits

  • Socket modes: TCP server, TCP client, UDP
  • ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
  • Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
  • Redundant DC power inputs
  • Warnings and alerts by relay output and email
  • 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
  • IP30-rated housing
View full details

Description

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.

You can also find the NPort IA5150-T model in the NPort IA5000 Series.

Data sheet

Specification

10Mbps RJ-45 Ports: No
10/100Mb RJ45 (Megabit) Ports: No
RS-232 Ports: No
RS-422/485 Ports: No
RS-232/422/485 Ports: Yes: 1 Port
Other ports: 1 x 10/100BaseT(X) Port with Multi-Mode ST Connector
Serial connection type: DB9 male for RS-232 and terminal block for RS-422/485
Serial Communication Parameters: Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Data transfer speed (Baudrate): Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Protection against electrostatic discharge: No
Electrical isolation: No
Wireless Standards: No
Maximum data transfer speed: -
Maximum direct range: -
Management: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
MTBF: 1,175,887 hrs
Compatible operating systems: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT, Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
Fixed TTY Drivers: macOS versions: 14, 13, 12, 11, and 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Power Consumption (Output Adapter): -
Security: Authentication: Local database (password only)
Encryption: No
Display: No
Keyboard: No
The automatic restart (reset): -
Alarm feature: -
Network protocol: DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, CMP, Rtelnet
Data transfer protocol: -
Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11
Marine: DNV
Medical: No
LAN port Protection against magnetic fields: 1.5KV
Housing: Plastic
Altitude: -
Operation Humidity: 5 to 95% (non-condensing)
