Moxa

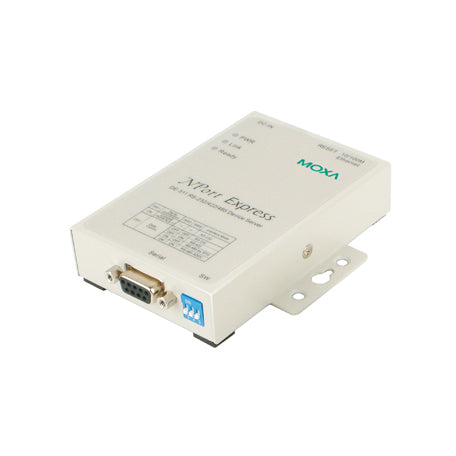

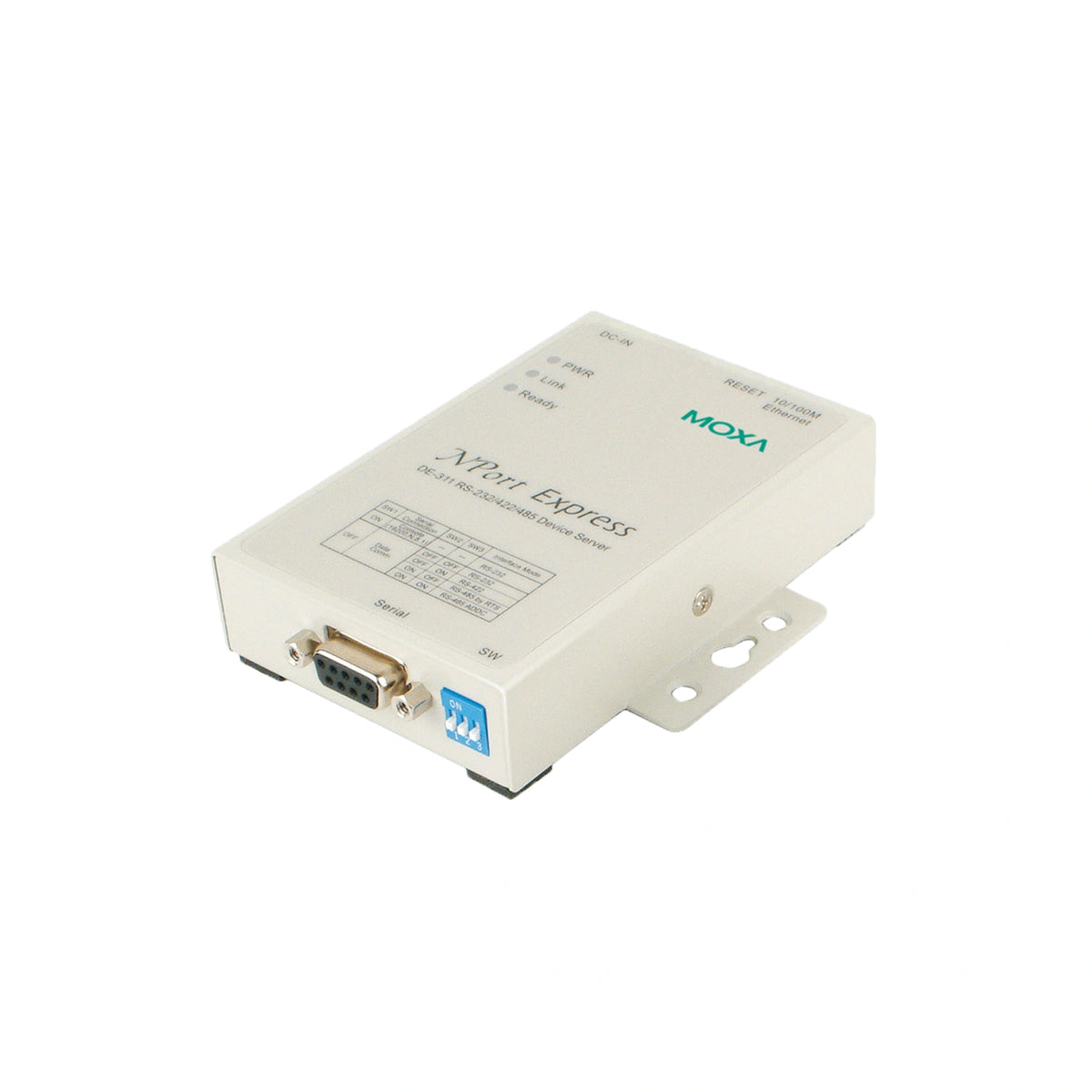

MOXA NPORT EXPRESS DE-311 SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT EXPRESS DE-311 SERIAL TO ETHERNET DEVICE SERVER

$320.00 CAD
$320.00 CAD
Sale Sold out
We have 7 in stock

MOXA NPORT EXPRESS DE-311Features and Benefits

  • 1 x 10/100Mbps T(x) port and 1 x RS-232/422/485 Serial ports with DB9 female connector
  • 12 to 30 VDC
  • Metal body
  • 0 to 55°C operating temperature
View full details

Description

The NPort® DE-211 and DE-311 are 1-port serial device servers that support RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485. The DE-211 supports 10 Mbps Ethernet connections and has a DB25 female connector for the serial port. The DE-311 supports 10/100 Mbps Ethernet connections and has a DB9 female connector for the serial port. Both device servers are ideal for applications that involve information display boards, PLCs, flow meters, gas meters, CNC machines, and biometric identification card readers.

Data sheet

Specification

10/100Mb RJ45 (Megabit) Ports: 1 Port
RS-232/422/485 Ports: 1 Port
Serial connection type: DB9-F
Serial Communication Parameters: Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Protection against electrostatic discharge: 15KV
MTBF: 225529 hour
Power Consumption: 9V DC to 30V DC
Network protocol: DHCP, BOOTP, Telnet, TCP, UDP, IPv4, ICMP, ARP
Dimensions: 67x100.4x22mm
Housing: Metal
Operating Temperature: 0 to 55 ° C
Storage Temperature: -40 to 75 ° C
Altitude: 2000m
Operation Humidity: 5% to %95 RH non-condensing
