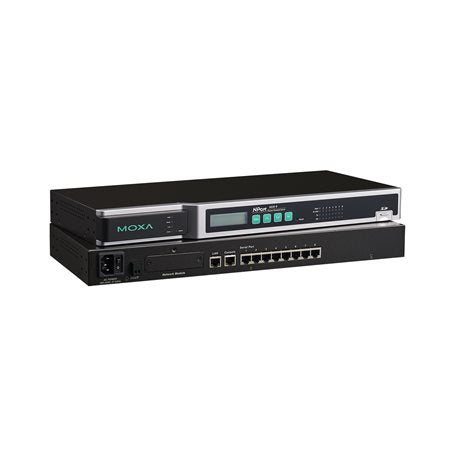

MOXA NPORT 6650-8 SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 6650-8 SERIAL TO ETHERNET DEVICE SERVER

$1,536.00 CAD
$1,536.00 CAD
Sale Sold out

Features and Benefits

  • LCD panel for easy IP address configuration (standard temp. models)
  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Nonstandard baudrates supported with high precision
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with a network module
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443
View full details

Description

The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.

Data sheet

Specification

Number of Ports: 8
Serial Standards: RS-232, RS-422, RS-485
Connector: 8-pin RJ45
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: NPort 6600 Series - 120 ohms
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Input Voltage: AC Models: 100 to 240 VAC, DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC)
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Standards: Telcordia (Bellcore) Standard TR/SR
Magnetic Isolation Protection: 1.5 kV (built-in)
Safety: UL 60950-1
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
Housing: Metal
Storage Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
