Moxa

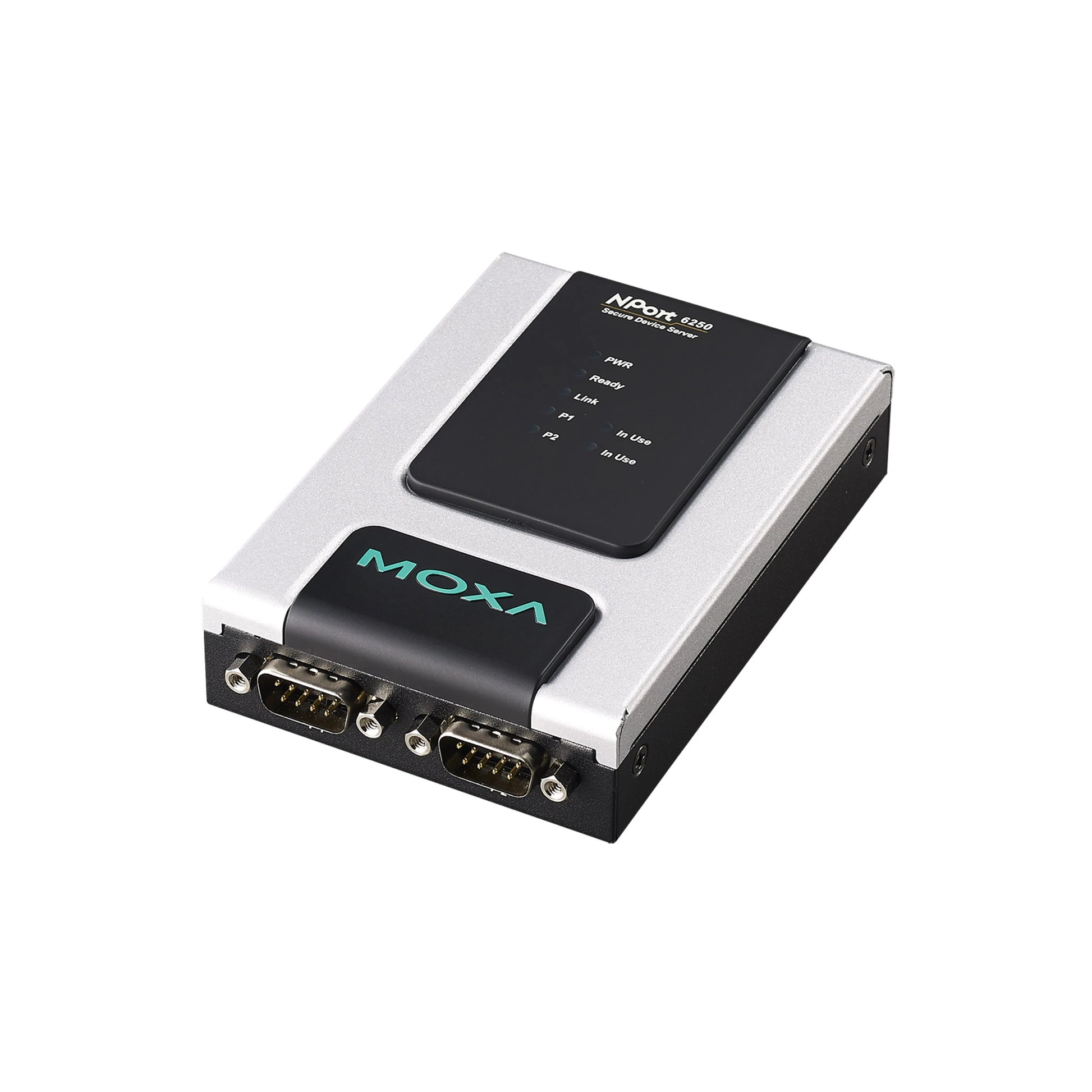

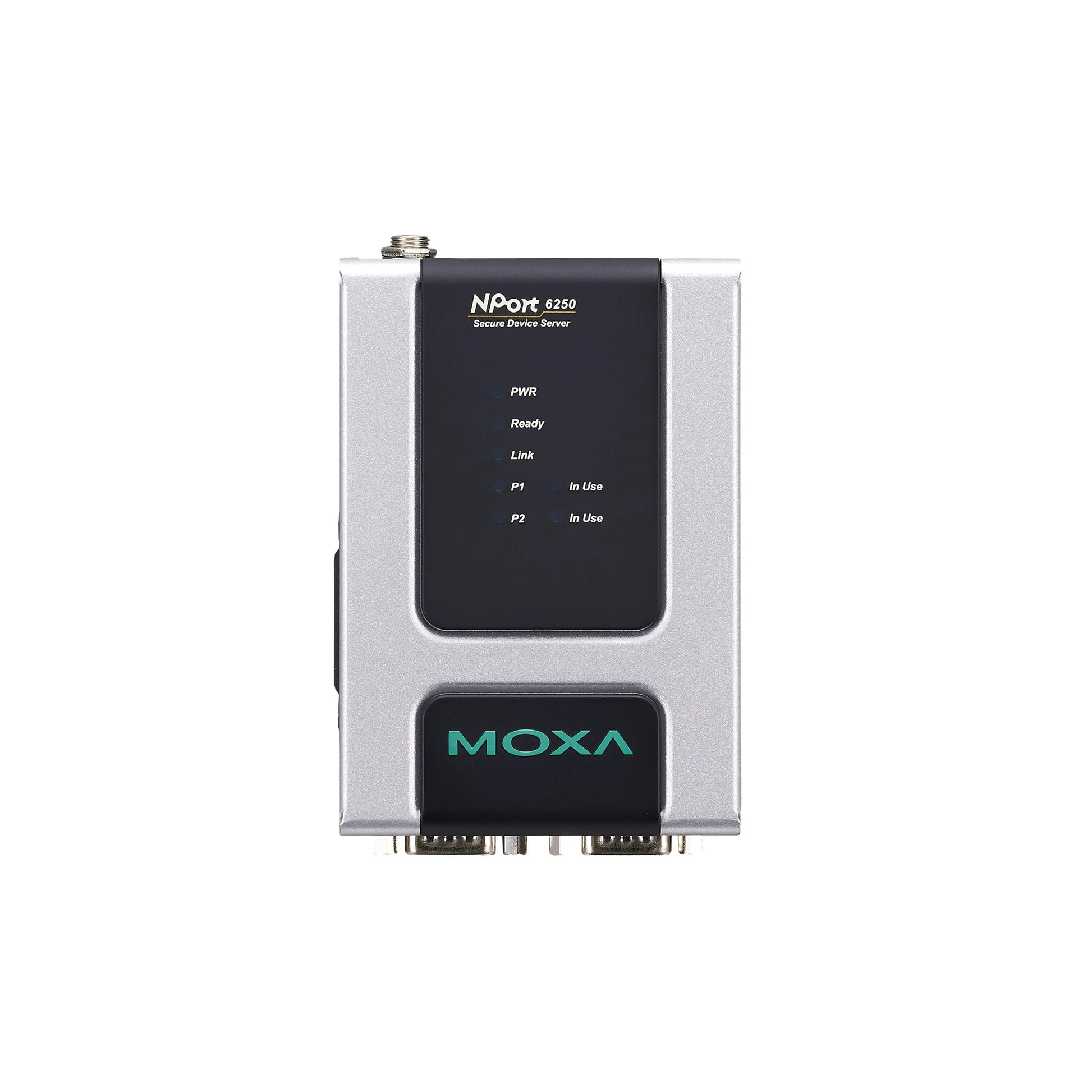

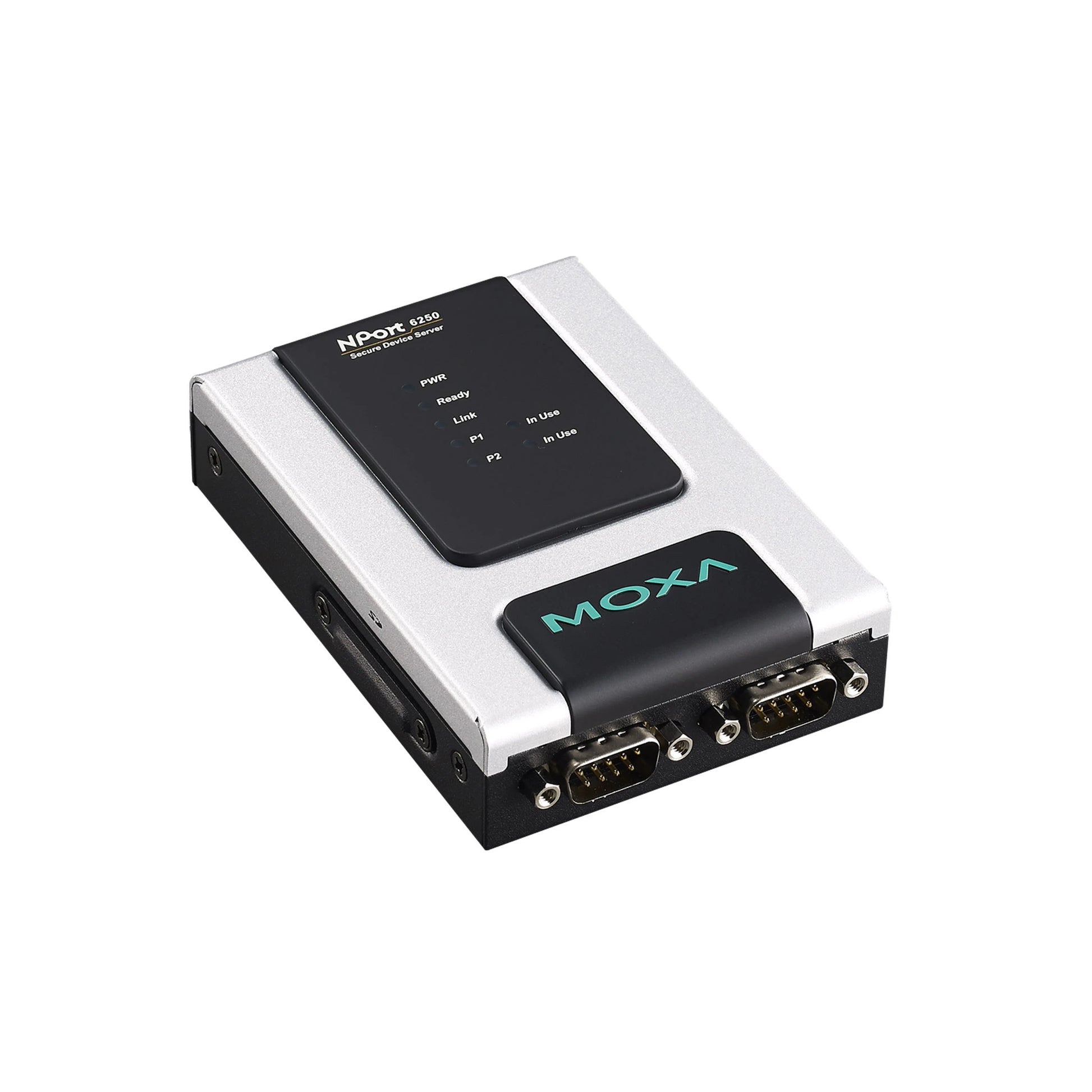

MOXA NPORT 6250-T SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 6250-T SERIAL TO ETHERNET DEVICE SERVER

Regular price $616.00 CAD
Regular price Sale price $616.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 2 x RS-232/422/485 Serial port
  • 12 to 48 VDC
  • Metal body
  • -40 to 75°C operating temperature
  • support SSL and SSH protocols
View full details

Description

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.

The NPort® 6250 device servers help guarantee reliability by providing users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6250 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6250 will immediately release all of the data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

Specification

Serial Standards: RS-232, RS-422, RS-485
Connector: DB9 male
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Input Voltage: 12 to 48 VDC
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Standards: Telcordia (Bellcore) Standard TR/SR
Magnetic Isolation Protection: 1.5 kV (built-in)
Safety: UL 60950-1
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs
Housing: Metal
Storage Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
