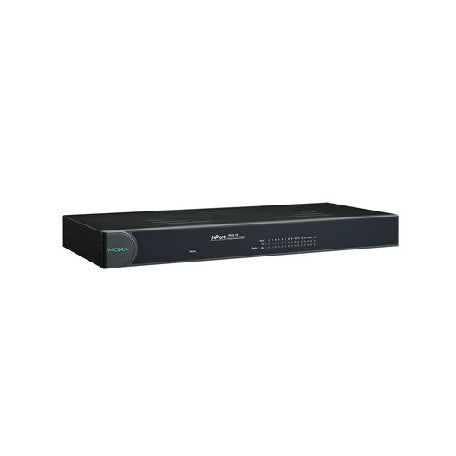

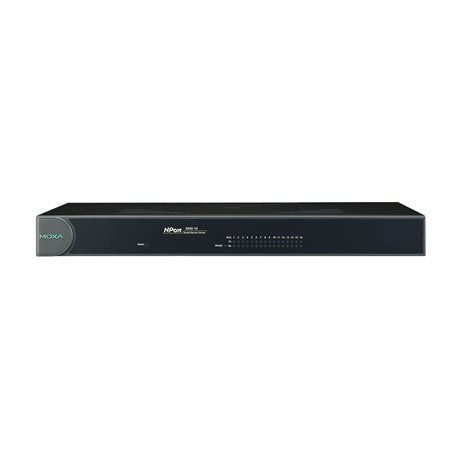

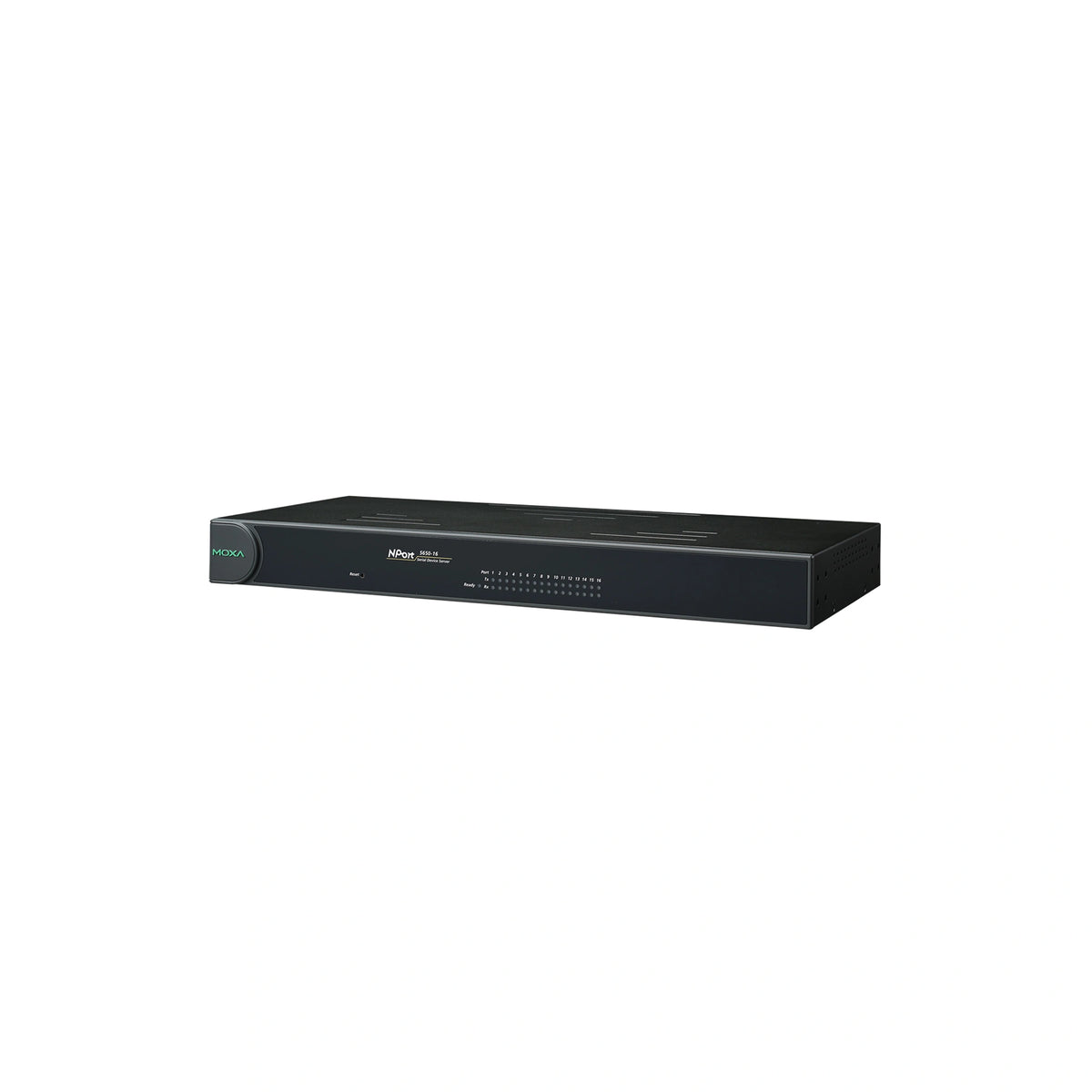

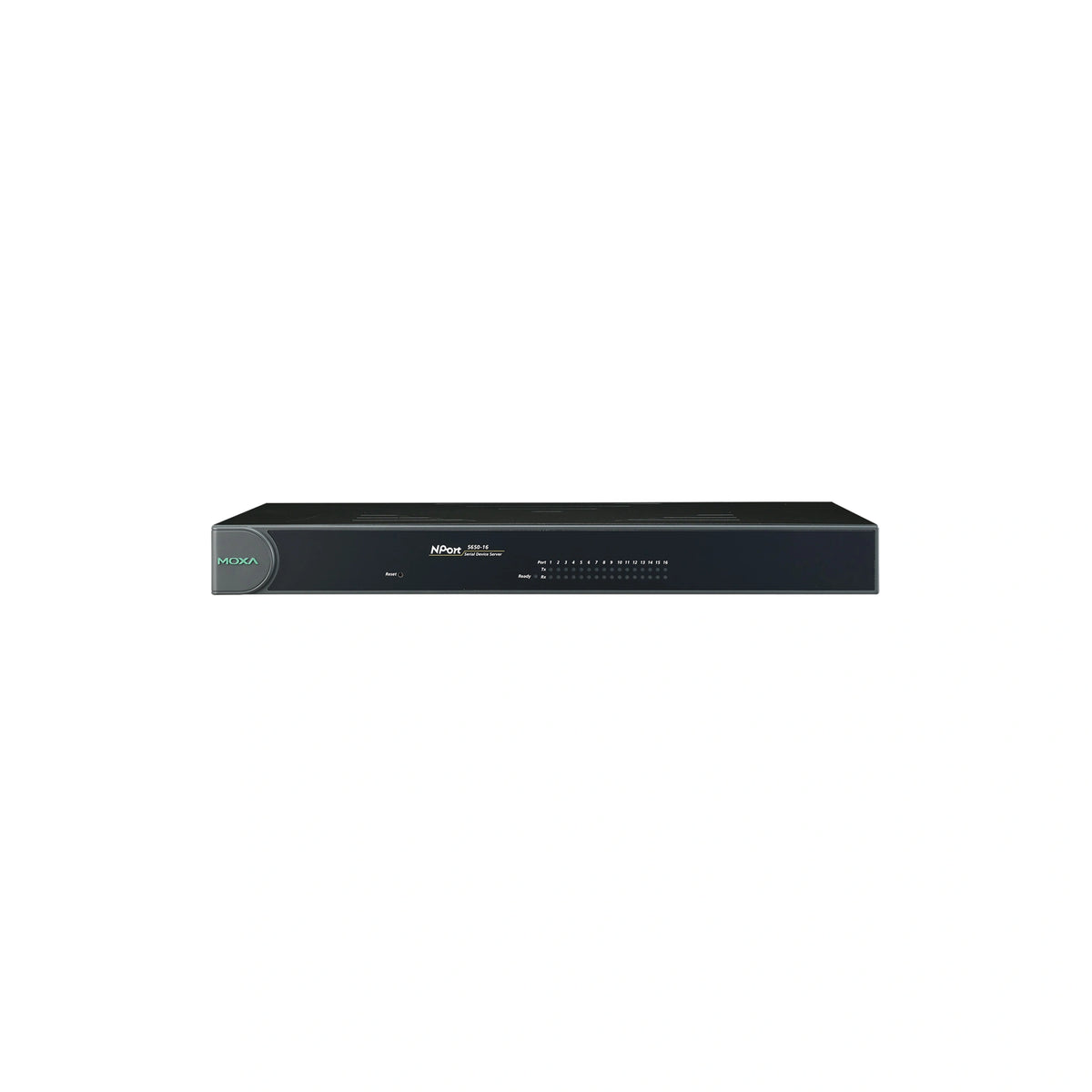

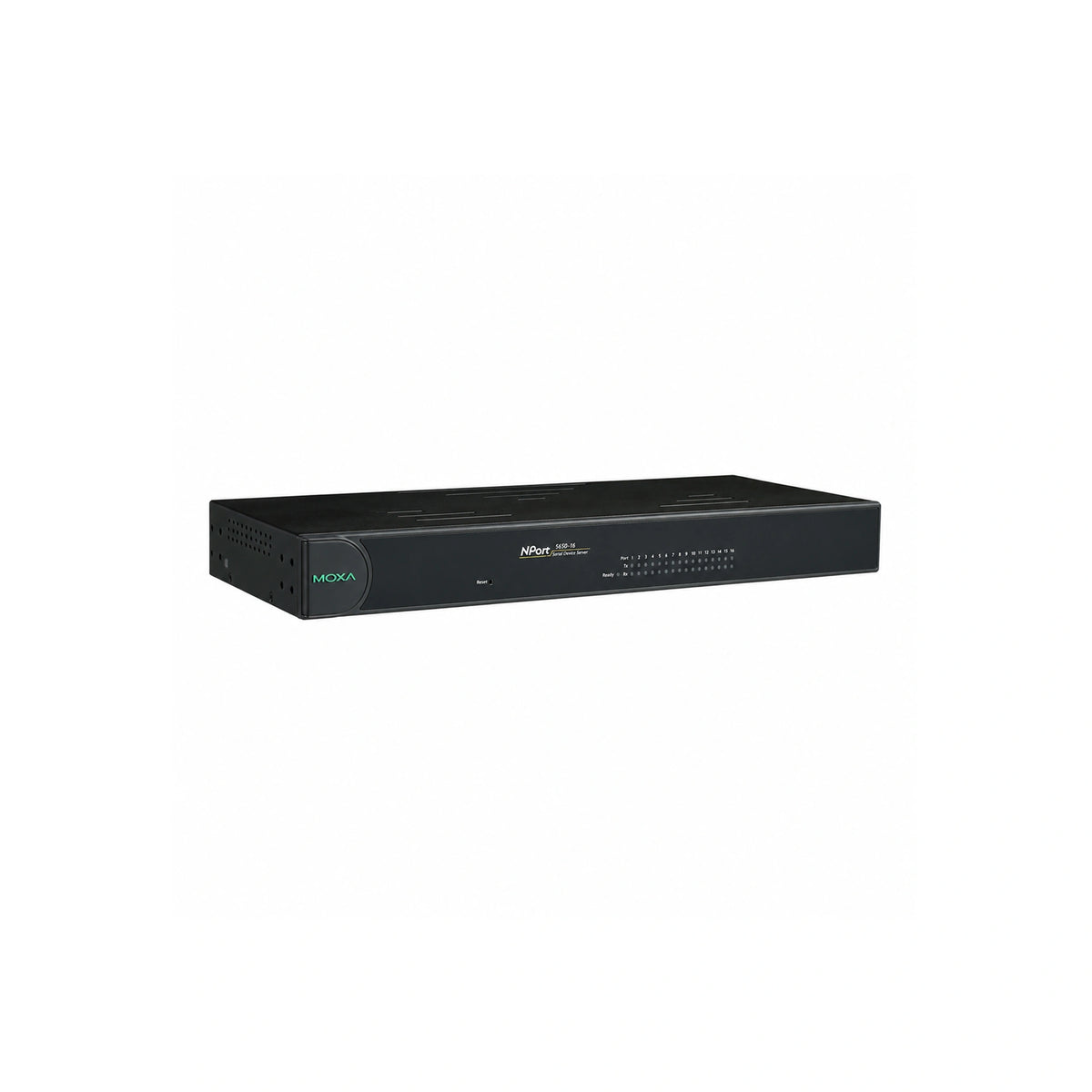

MOXA NPORT 5650-16 SERIAL TO ETHERNET RACKMOUNT SERIAL DEVICE SERVER

MOXA NPORT 5650-16 SERIAL TO ETHERNET RACKMOUNT SERIAL DEVICE SERVER

$1,735.00 CAD
$1,735.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 16 x RS-232/422/485 Serial ports
  • 12 to 48 VDC
  • Metal body
  • 0 to 60°C operating temperature
    View full details

    Description

    With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

    NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

    Data sheet

    Specification

    10/100Mb RJ45 (Megabit) Ports: 1 Port
    RS-232/422/485 Ports: 16 Ports
    Serial connection type: RJ45
    Serial Communication Parameters: Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
    Flow Control: DSR/DTR, RTS/CTS (RS-232 only), XON/XOFF
    Protection against electrostatic discharge: 15KV
    MTBF: 104767 hour
    Power Consumption: 100V AC, 0.158A and 240V AC, 0.102A
    Network protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
    Dimensions: 440x45x198mm
    Housing: Metal
    Operating Temperature: -40 to 75 ° C
    Storage Temperature: -40 to 75 ° C
    Altitude: 2000m
    Operation Humidity: 5% to %95 RH non-condensing
