Moxa

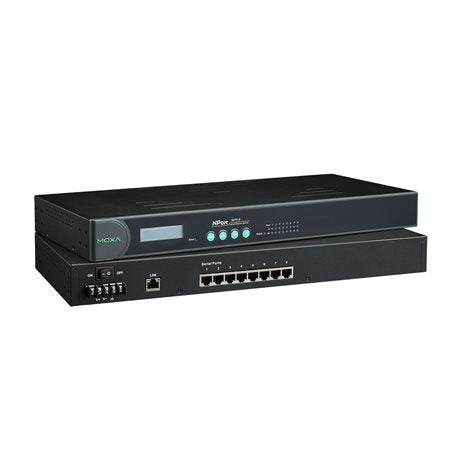

MOXA NPORT 5610-8-48V SERIAL TO ETHERNET RACKMOUNT SERIAL DEVICE SERVER

MOXA NPORT 5610-8-48V SERIAL TO ETHERNET RACKMOUNT SERIAL DEVICE SERVER

Regular price $1,185.00 CAD
Regular price Sale price $1,185.00 CAD
Sale Sold out
We have 1 in stock

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 8 x RS-232 Serial ports
  • ±48 VDC
  • Metal body
  • 0 to 55°C operating temperature
View full details

Description

With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

Specification

10/100Mb RJ45 (Megabit) Ports: 1 Port
RS-232 Ports: 8 Ports
Serial connection type: RJ45
Serial Communication Parameters: Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2;
Parity: None, Even, Odd, Space, Mark
Flow Control: DSR/DTR, RTS/CTS, XON/XOFF
Protection against electrostatic discharge: 15KV
MTBF: 870,961 hrs
Power Consumption: ±48 VDC
Network protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
Dimensions: 440x45x198mm
Housing: Metal
Operating Temperature: 0 to 55 ° C
Storage Temperature: -20 to 70 ° C
Operation Humidity: 5% to %95 RH non-condensing
