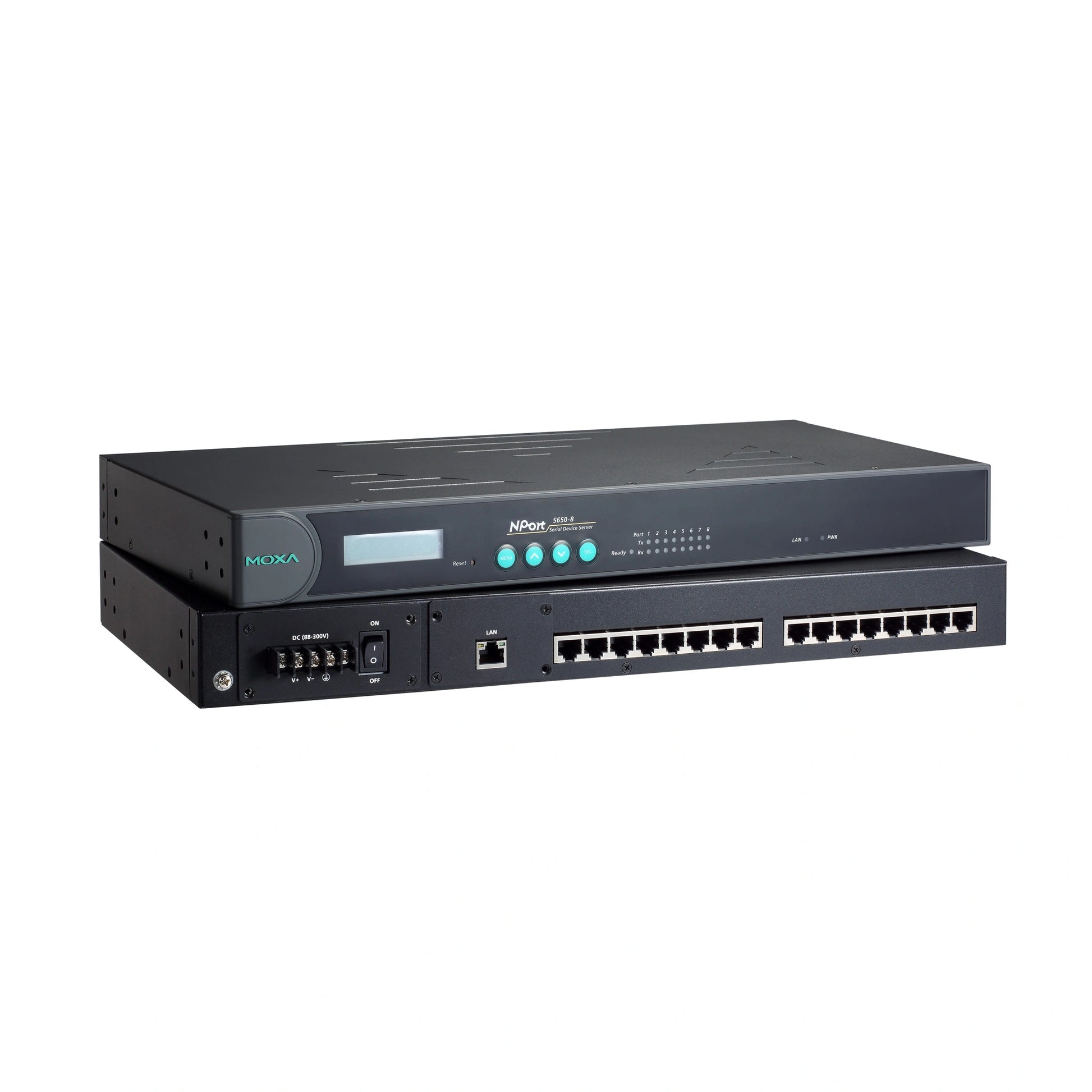

MOXA NPort 5610-16-48V Serial to Ethernet Rackmount Serial Device Server

MOXA NPort 5610-16-48V Serial to Ethernet Rackmount Serial Device Server
$2,237.00 CAD
$2,237.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 16 x RS-232 Serial ports (8-pin RJ45 connector)
  • ±48 VDC input power range
  • 19-inch rack mounting installation
  • Metal body design
  • 0 to 60°C operating temperature
View full details

Description

With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

19-Inch Rackmount Device Server

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

Real COM/TTY Ports


Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.




You can also find the NPort 5650-8-T, NPort 5650-16-T, and NPort 5610-8 models in the Serial-to-Ethernet Converters.

Data sheet

Specification

Serial-to-Ethernet: Interface
10/100Mb RJ45 (Megabit) Ports : 1 Port
100BaseFX Ports : No
Digital Input Channels : No
Digital Output Channels : No
Alarm Contact Channels : No
Magnetic Isolation Protection : 1.5 kV (built-in)
Protocols : -

Serial-to-Ethernet: Serial Interface
Number of Ports : 16 Ports
Serial Standards : RS-232
Connector : 8-pin RJ45
Console Port : No

Serial-to-Ethernet: Serial Communication Parameters
Baudrate : Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark
Flow Control : None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Isolation : No

Serial-to-Ethernet: Serial Signals
RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 : -
RS-485-4w : -
RS-485-2w : -

Serial-to-Ethernet: Communication details
Wireless Standards : No
Maximum data transfer speed : No
Maximum direct range : No

Serial-to-Ethernet: General
Management : ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Compatible operating systems : Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded
Fixed TTY Drivers : macOS Versions: 11.x, 10.12 to 10.15
Linux Real TTY Drivers : Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
MTBF : 693,529 hrs
Automatic Reboot Trigger : Built-in WDT

Serial-to-Ethernet: Power Requirements
Connection : -
Input Voltage : ±48 VDC, 20 to 72 VDC, -20 to -72 VDC
Input Current : 135 mA @ 48 VDC

Serial-to-Ethernet: Security
Security : Protocol: HTTPS (TLS 1.2), SNMPv3
Encryption : HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Authentication : Local database

Serial-to-Ethernet: Features and capabilities
Display : No

Serial-to-Ethernet: Physical Characteristics
Dimensions : with ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in), without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
Installation : 19-inch rack mounting
Standards and Certifications : EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; Safety: UL 62368-1; Medical: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant, EN 60601-1-2: 2007 compliant; MIL-HDBK-217F
Housing : Metal
Operating Temperature : 0 to 60°C (32 to 140°F)
Storage Temperature : -20 to 70°C (-4 to 158°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : 3,260 g (7.19 lb)
