Moxa

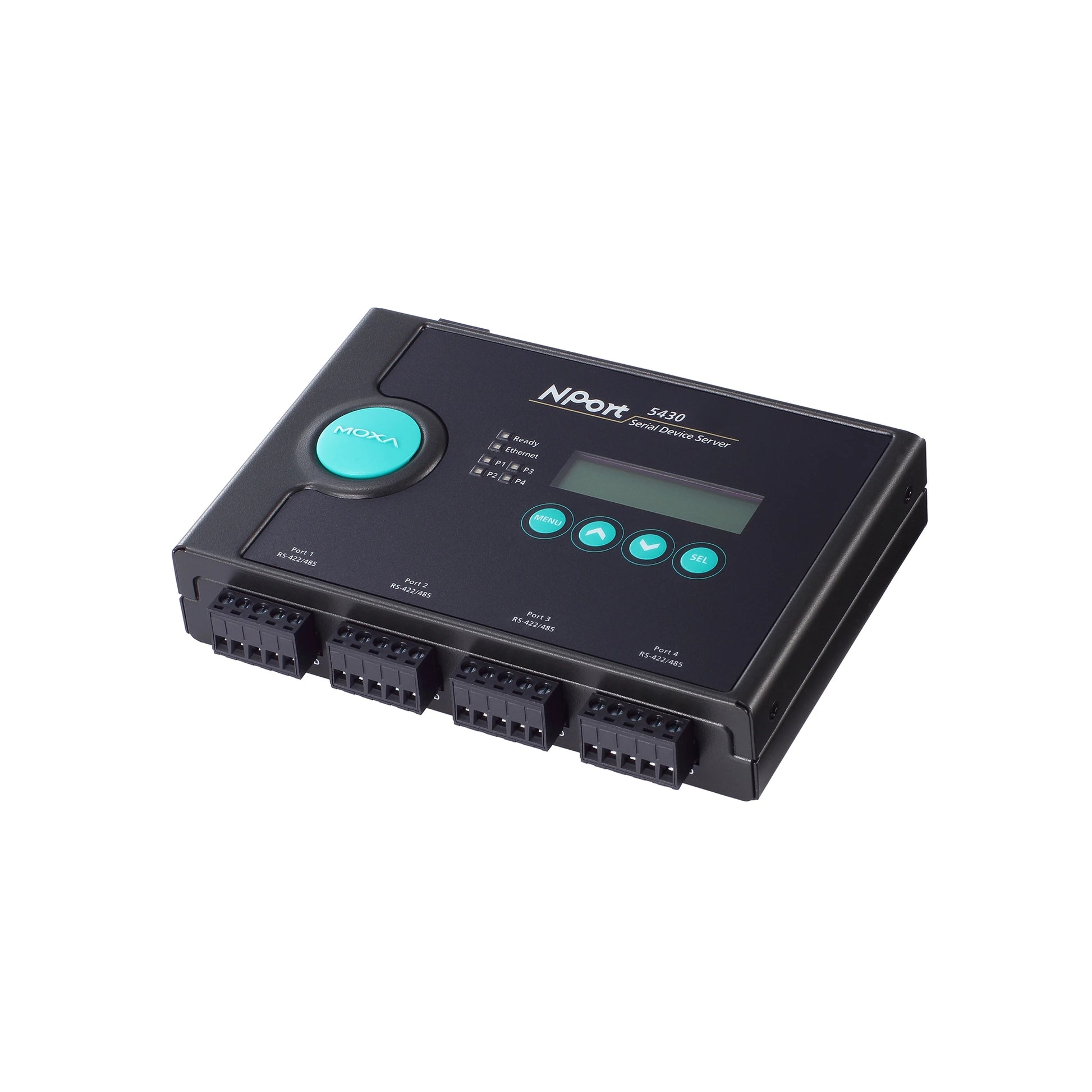

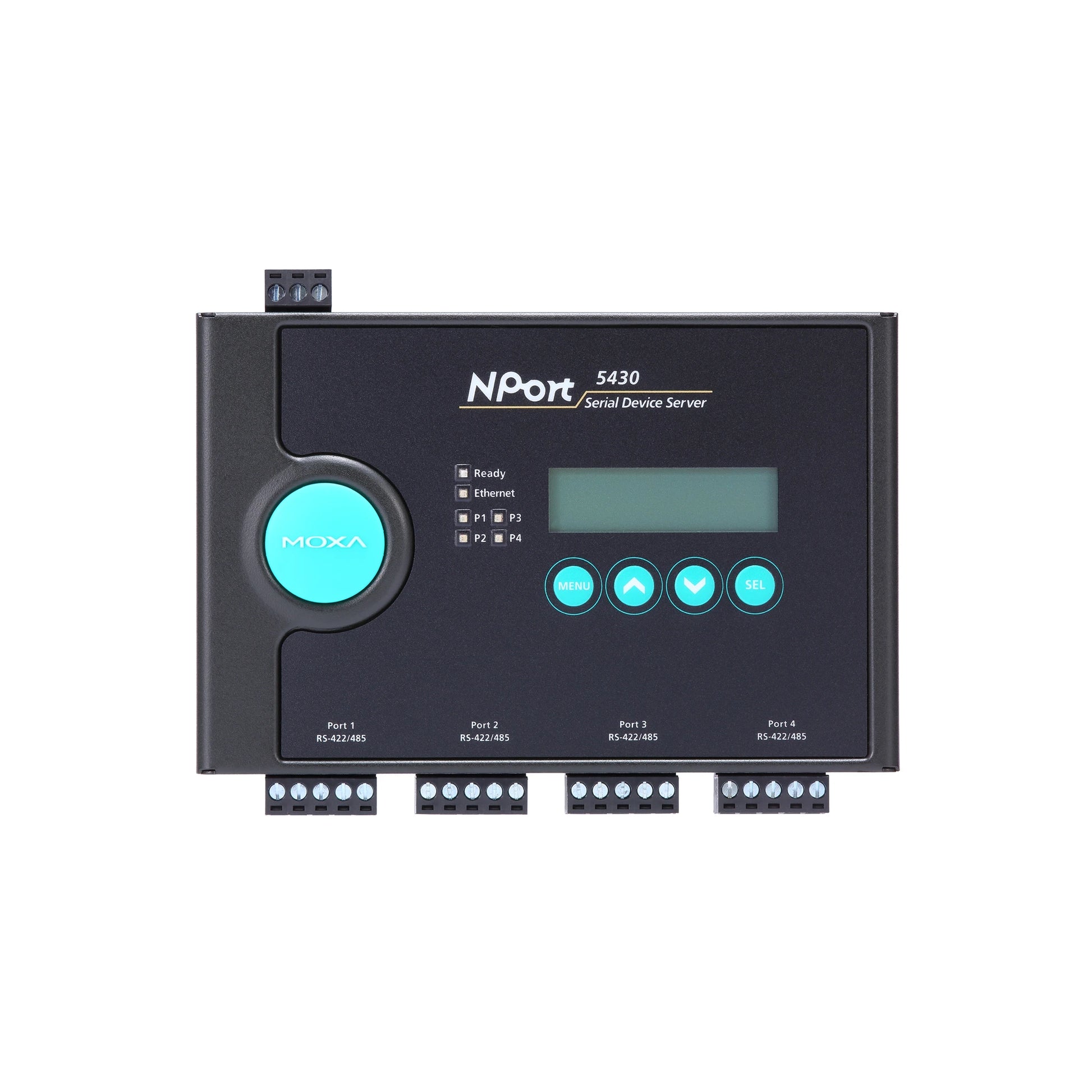

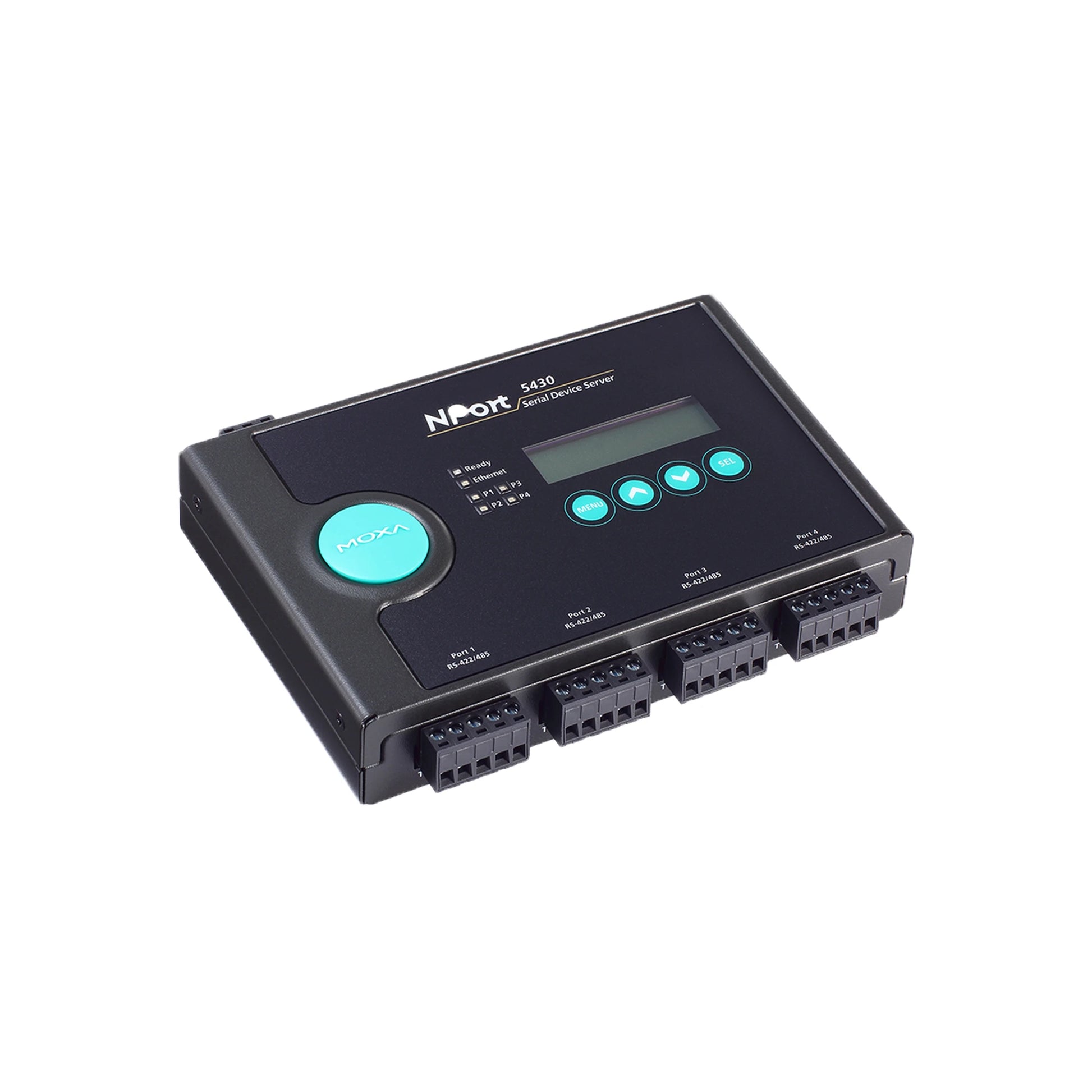

MOXA NPORT 5430I SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 5430I SERIAL TO ETHERNET DEVICE SERVER

Regular price $1,214.00 CAD
Regular price Sale price $1,214.00 CAD
Sale Sold out
We have 5 in stock

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 4 x RS-422/485 Serial ports
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 55°C operating temperature
  • Surge protection for serial, Ethernet, and power
View full details

Description

NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.

NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.

An LCD panel is built into the NPort® 5400’s top panel, with four buttons for data input, configuration, and operation mode selection. The LCD panel displays the server name, serial number, and IP address, and it can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide-temperature models.)

NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.

The NPort 5400 Series provides adjustable termination and pull high/ low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.

Specification

10Mbps RJ-45 Ports: No
10/100Mb RJ45 (Megabit) Ports: Yes: 1 Port
RS-232 Ports: No
RS-422/485 Ports: Yes: 4 Ports
RS-232/422/485 Ports: No
Serial connection type: TB
Serial Communication Parameters: Data Bits: 5, 6, 7, 8; Stop Bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Data transfer speed (Baudrate): 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge: 15KV
Electrical isolation: 2KV
Wireless Standards: No
Maximum data transfer speed: No
Maximum direct range: No
Management: Web Console, Telnet Console, Windows Utility
MTBF: 206903 hour
Compatible operating systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Power Consumption (Output Adapter): 12V DC, 0.53A to 48V DC
Security: -
Encryption: -
Display: Yes
Keyboard: Yes
The automatic restart (reset): Yes: WDT
Alarm feature: Yes: Buzzer and RTC
Network protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP
Data transfer protocol: -
Dimensions: 158x103x33mm
Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024
Marine: DNV
Medical: No
LAN port Protection against magnetic fields: 1.5KV
Housing: Metal
Operating Temperature: 0 to 55 °C
Storage Temperature: -20 to 85 °C
Altitude: 2000m
Operation Humidity: 5% to %95 RH non-condensing
Weight: 0.74Kg
