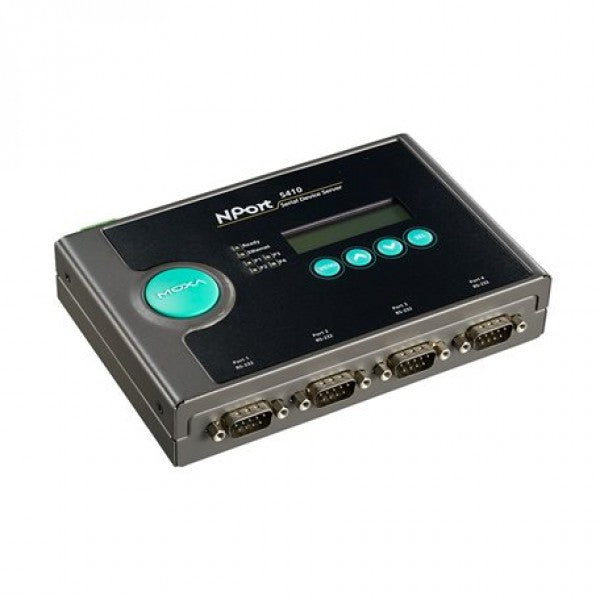

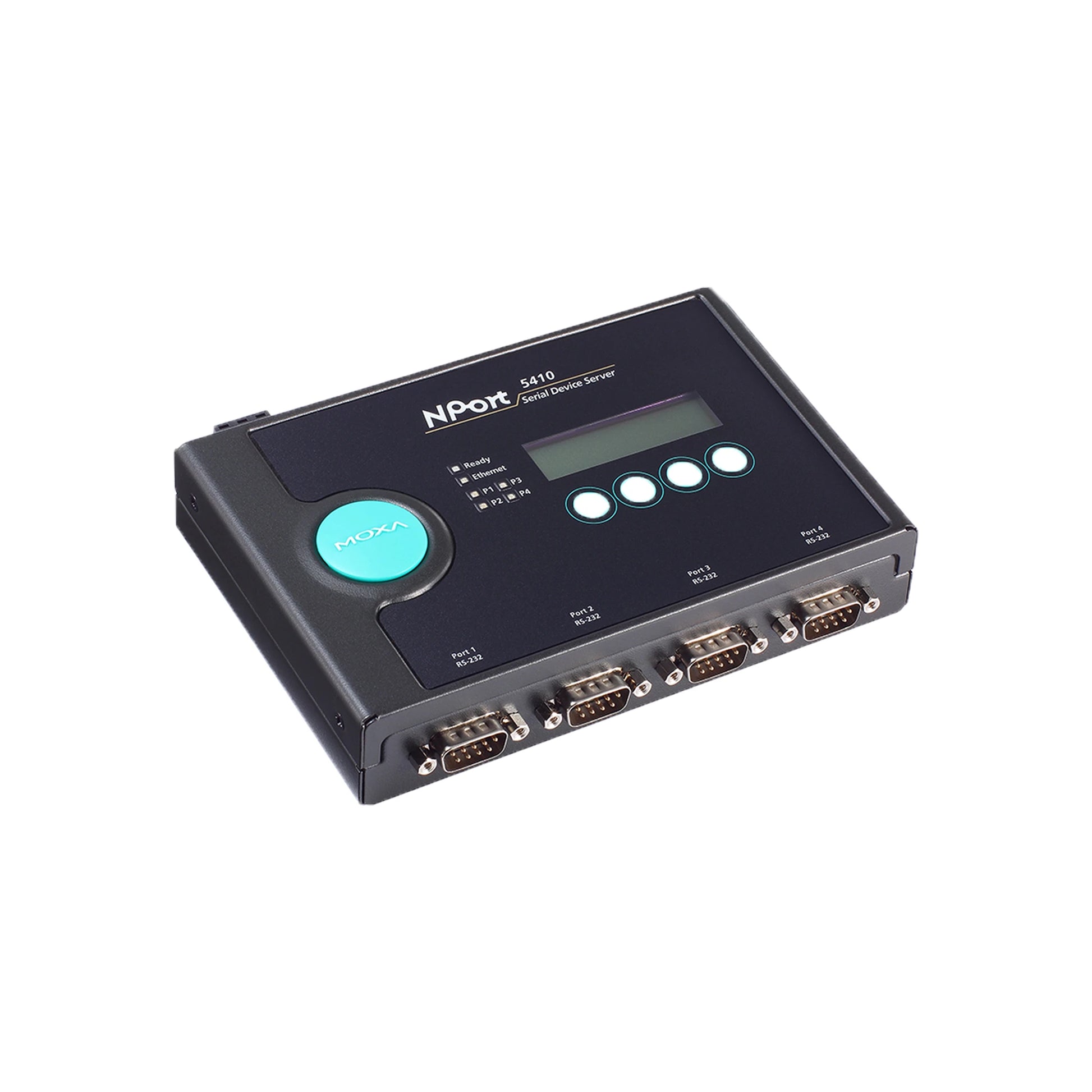

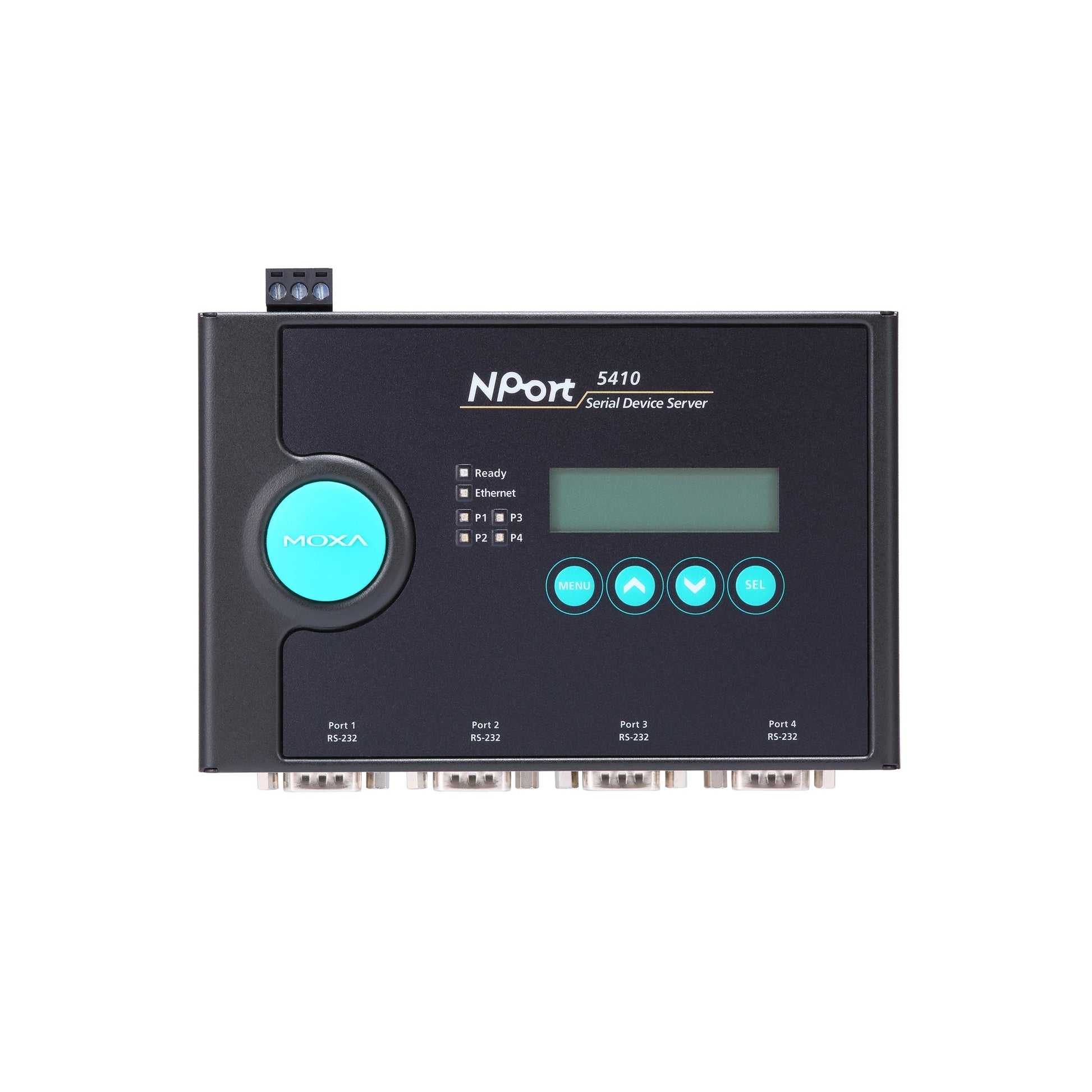

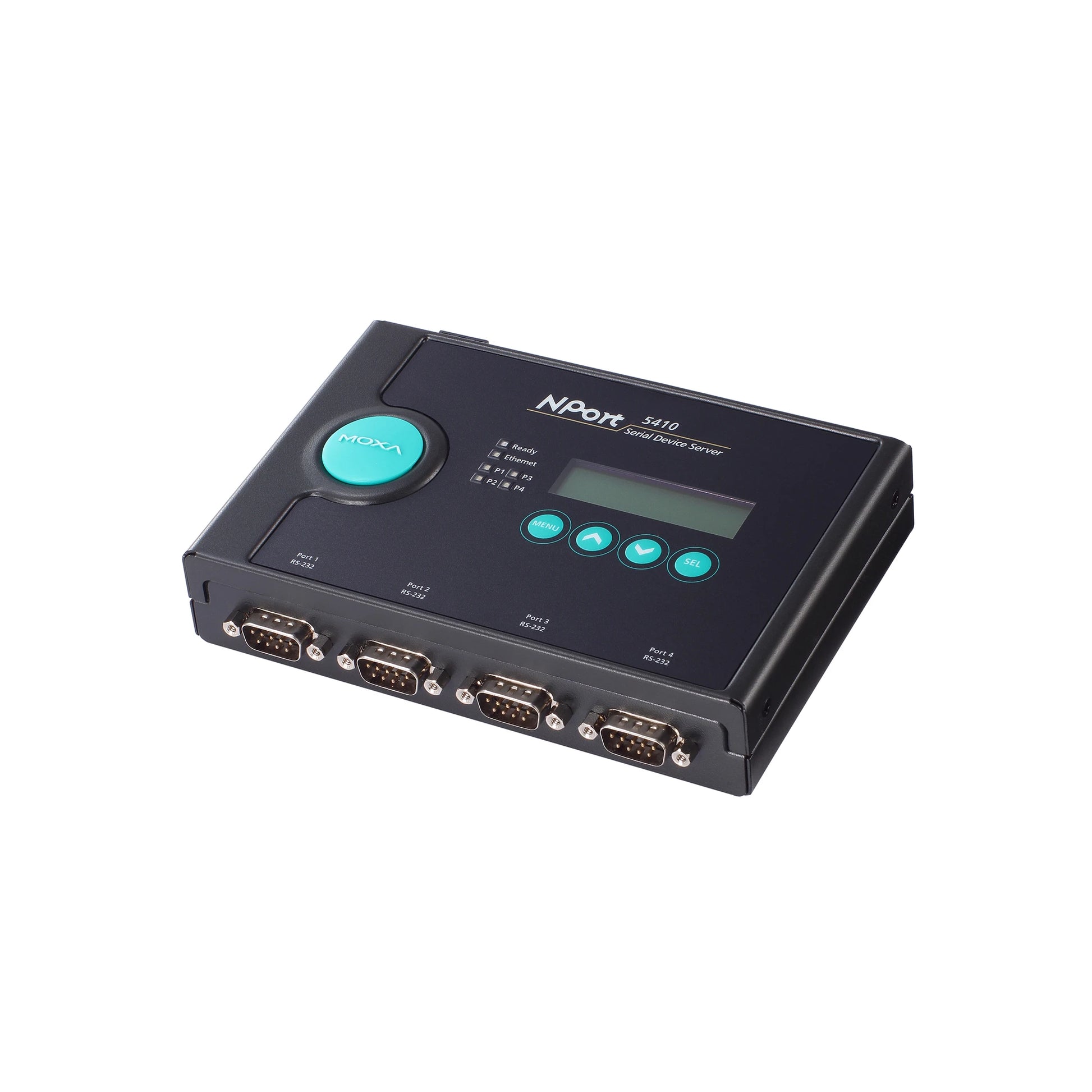

MOXA NPort 5410 Serial to Ethernet Device Server

MOXA NPort 5410 Serial to Ethernet Device Server
$828.00 CAD
$828.00 CAD
Special Offer Out of Stock
We have 5 in stock

Features and Benefits

  • 1 x 10/100BaseT(X) Ports (RJ45 connector)
  • 4 x RS-232 Serial ports (DB9 male connector)
  • 12V DC to 48V DC dual power inputs (24 VDC for DNV)
  • Desktop, DIN-rail, and Wall mounting
  • Metal body design
  • 0 to 55°C operating temperature range
View full details

Description

NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.

Data sheet

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 1 Port
Magnetic Isolation Protection : 1.5 kV (built-in)

Serial Interface
Number of Ports : 4 Ports
Serial Standards : RS-232
Connector : DB9 male

Serial Communication Parameters
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark

Serial Signals
RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Power Requirements
Connection : 1 removable 3-contact terminal block(s), Power input jack
Input Voltage : 12 to 48 VDC, 24 VDC for DNV (Dual power inputs)
Input Current : 365 mA @ 12 VDC

General
MTBF : 880,274 hrs
Automatic Reboot Trigger : Built-in WDT

Security
Authentication : Local database
Security : Protocols: HTTPS (TLS 1.2), SNMPv3
Encryption : HTTPS, AES-128, RSA-1024, SHA-1, SHA-256

Physical Characteristics
Installation : Desktop, DIN-rail mounting (with optional kit), Wall mounting
Housing : Metal
Operating Temperature : 0 to 55°C (32 to 131°F)
Storage Temperature : -40 to 75°C (-40 to 167°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : 740 g (1.63 lb)
