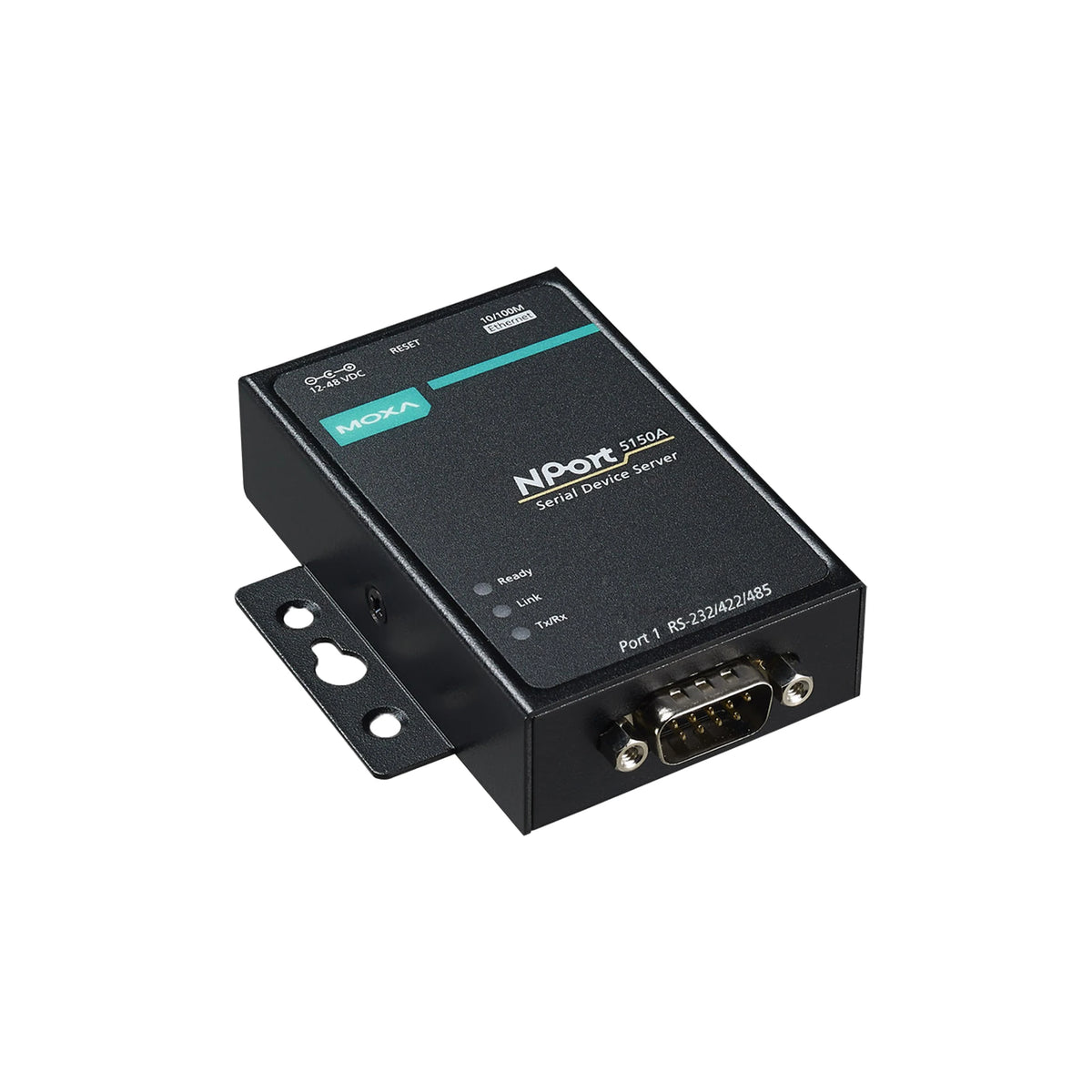

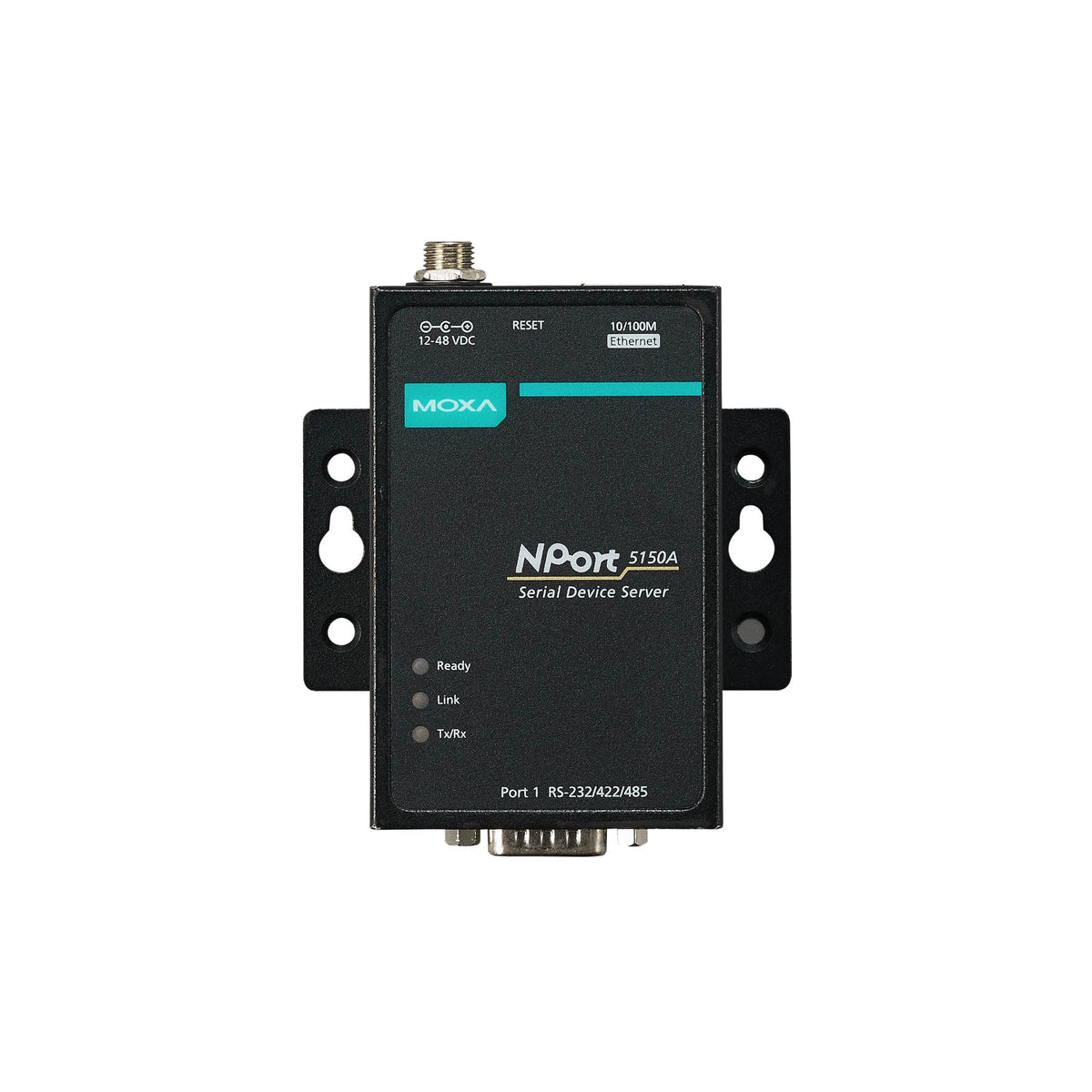

MOXA NPORT 5150A-T SERIAL TO ETHERNET DEVICE SERVER

MOXA NPORT 5150A-T SERIAL TO ETHERNET DEVICE SERVER

$330.00 CAD
$330.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100Mbps T(x) port and 1 x RS-232/422/485 Serial port
  • 12 to 48 VDC input power
  • Metal body
  • -40 to 75°C operating temperature
  • Surge Protection for Serial, Ethernet, and Power
View full details

Description

The NPort® 5100A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5100A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

NPort® 5100A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP Manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5100A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

Data sheet

Specification

10Mbps RJ-45 Ports: No
10/100Mb RJ45 (Megabit) Ports: Yes : 1 Port
RS-232 Ports: No
RS-422/485 Ports: No
RS-232/422/485 Ports: Yes : 1 Port
Serial Connection Type: DB9-M
Serial Communication Parameters: Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, and DTR/DSR for RS-232
Data Transfer Speed (Baudrate): 0.05Kbps to 921.6Kbps
Protection Against Electrostatic Discharge: 15KV
Electrical Isolation: No
Wireless Standards: No
Maximum Data Transfer Speed: No
Maximum Direct Range: No
Management: Web Console, Serial Console, Telnet Console, Windows Utility
MTBF: 2,231,530 hours
Compatible Operating Systems: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Power Consumption (Output Adapter): 12V DC, 0.092A and 24V DC, 0.052A
Security: No
Encryption: No
Display: No
Keyboard: No
Automatic Restart (Reset): Yes : WDT
Alarm Feature: No
Network Protocol: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Data Transfer Protocol: -
Dimensions: 75.2x80x22mm
Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024
Marine: No
Medical: No
LAN Port Protection Against Magnetic Fields: 1.5KV
Housing: Metal
Operating Temperature: -40 to 75 °C
Storage Temperature: -40 to 75 °C
Altitude: 2000m
Operation Humidity: 5% to 95% RH non-condensing
Weight: 0.34Kg
