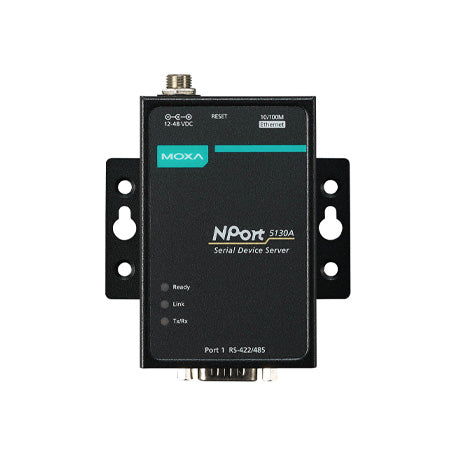

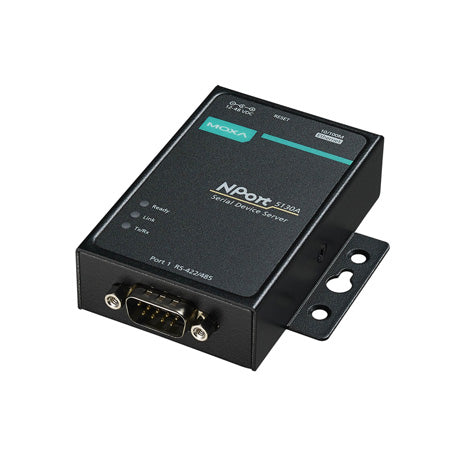

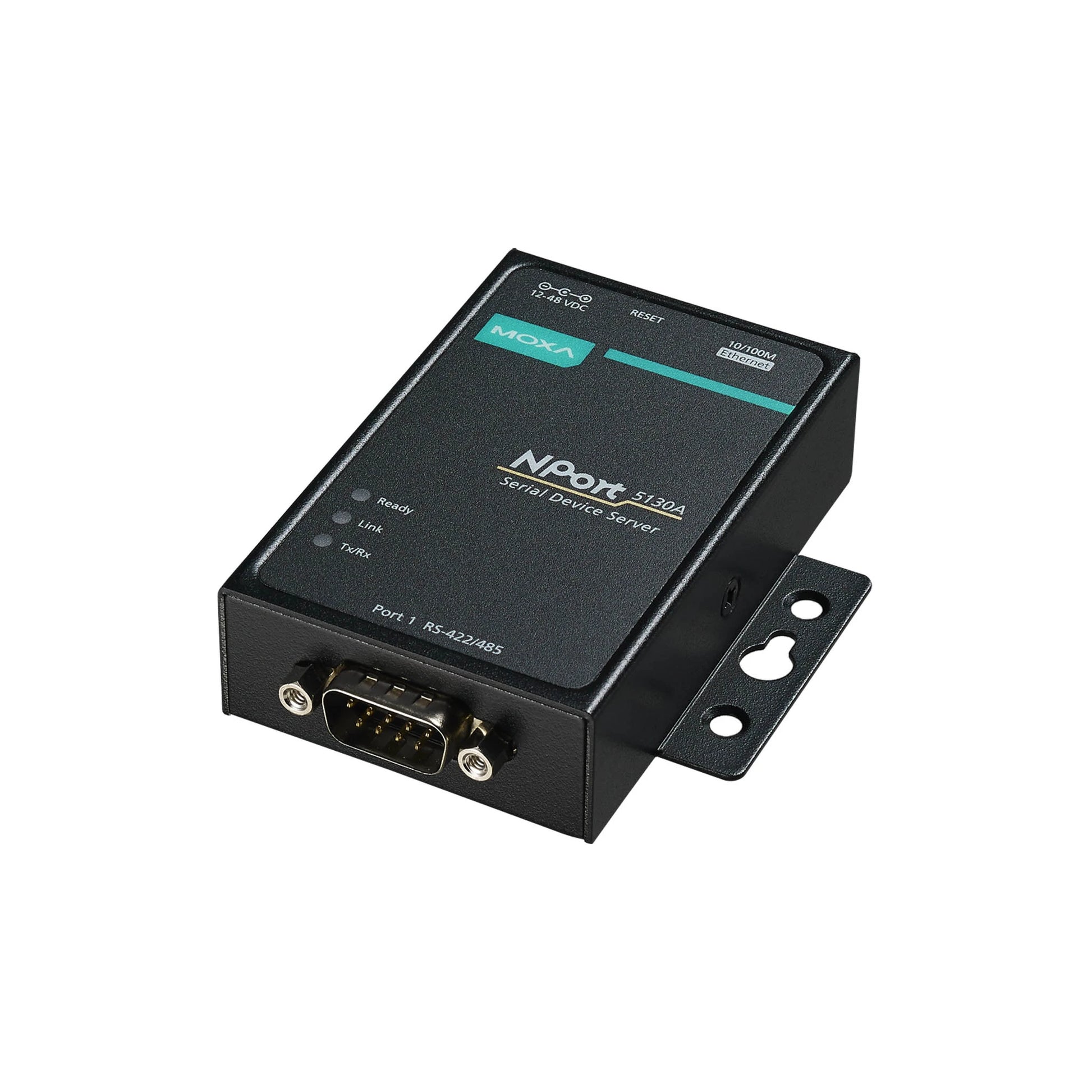

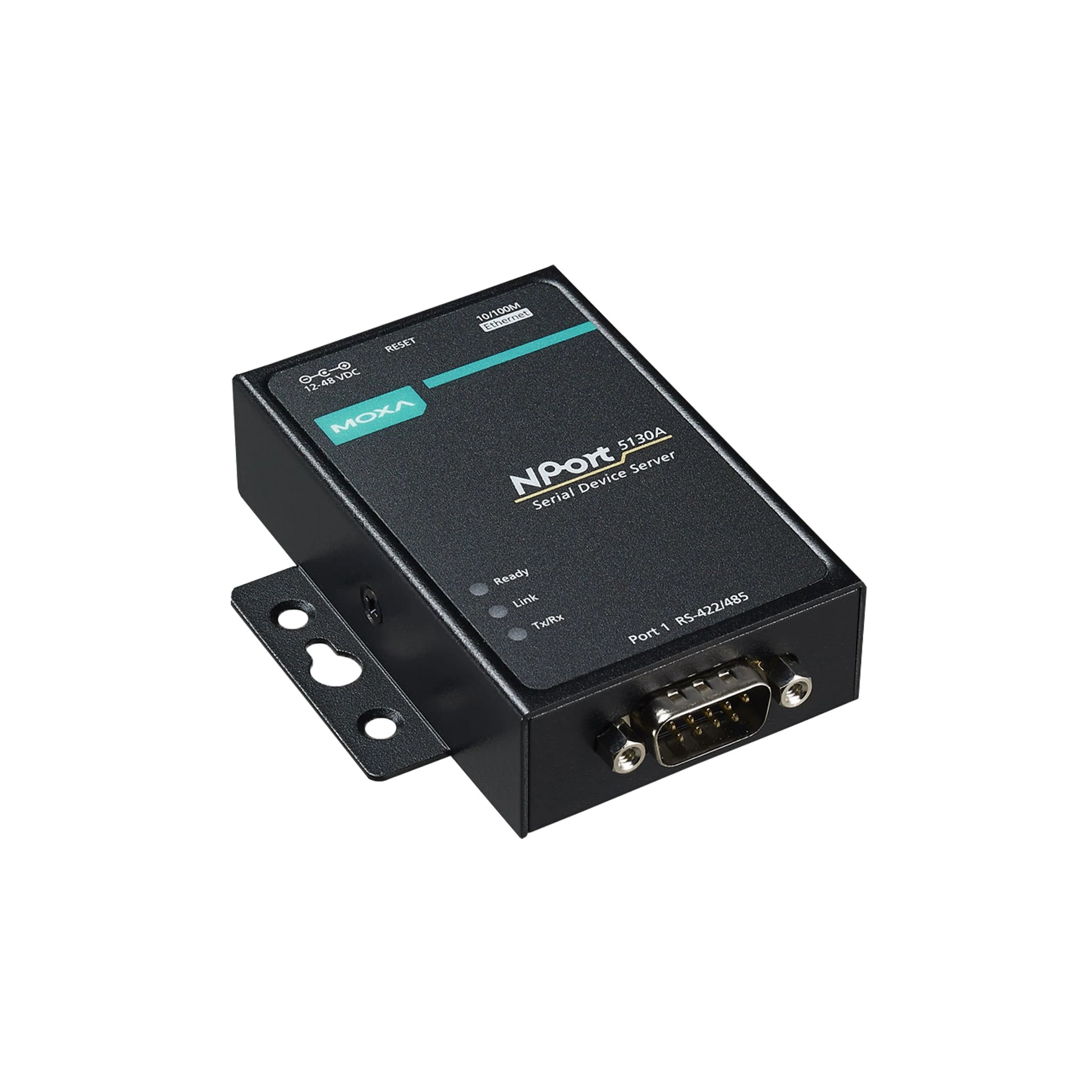

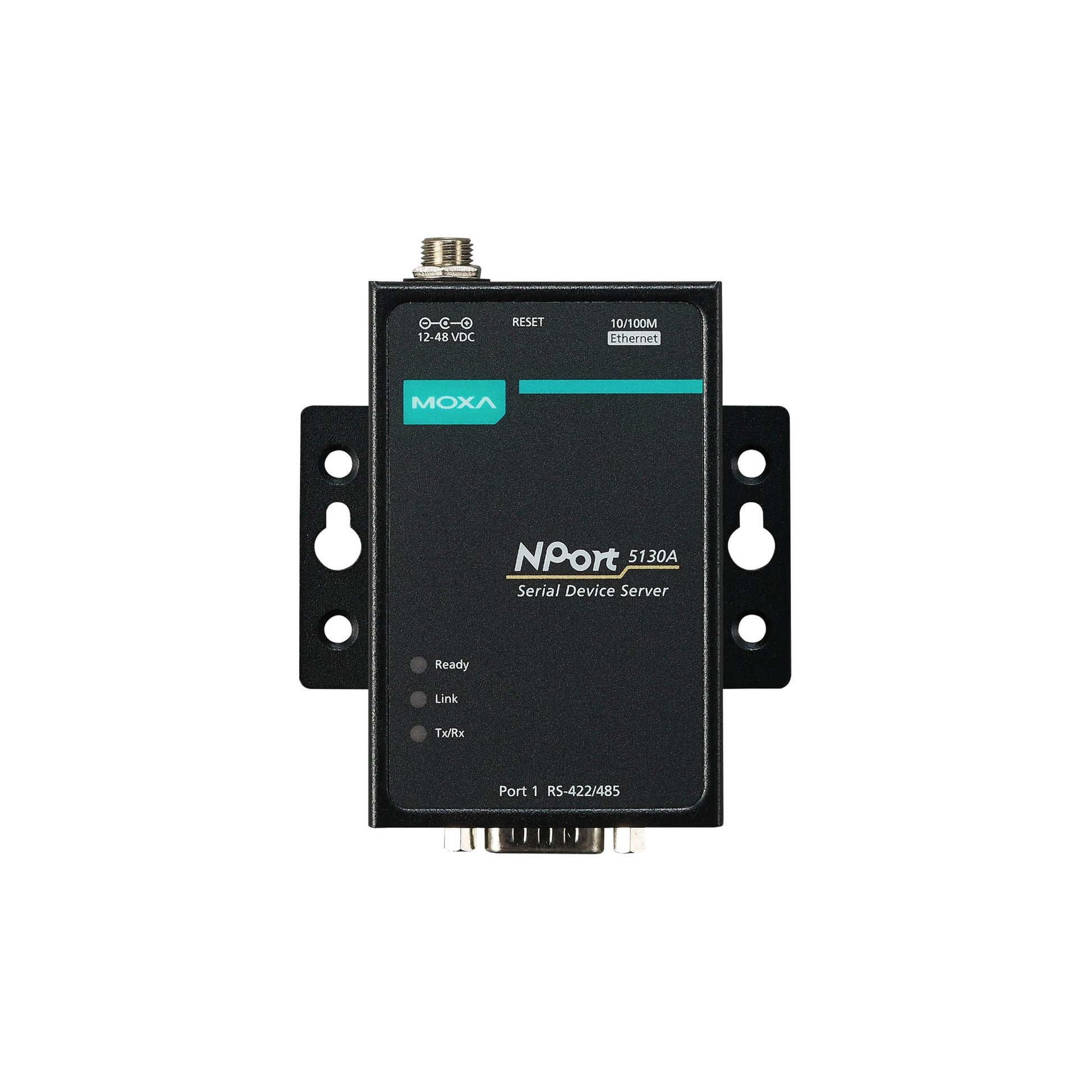

MOXA NPort 5130A Serial to Ethernet Device Server

MOXA NPort 5130A Serial to Ethernet Device Server
$289.00 CAD
$289.00 CAD
Special Offer Out of Stock
We have 18 in stock

Features and Benefits

  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 1 x RS-422/485 Serial port (DB9 male connector)
  • 12 to 48 VDC input power range
  • Desktop, DIN-rail, and Wall mounting
  • Metal body design
  • 0 to 60°C operating temperature
View full details

Description

The NPort® 5100A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5100A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

NPort® 5100A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Data sheet

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 1 port
Magnetic Isolation Protection : 1.5 kV (built-in)

Serial Interface
Number of Ports : 1 Port
Serial Standards : RS-422/485
Connector : DB9 male

Serial Communication Parameters
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark

Serial Signals
RS-422 : Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w : Data+, Data-, GND

General
MTBF : 2,231,530 hrs
Automatic Reboot Trigger : Built-in WDT

Power Requirements
Connection : Power input jack
Input Voltage : 12 to 48 VDC
Input Current : 89.1 mA @ 12 VDC

Security
Authentication : Local database (password only)
Security : Security Protocols: HTTPS (TLS 1.2)
Encryption : HTTPS, AES-128, SHA-1, RSA-1024, SHA-256

Physical Characteristics
Installation : Desktop, DIN-rail mounting, Wall mounting
Housing : Metal
Operating Temperature : 0 to 60°C (32 to 140°F)
Storage Temperature : -40 to 75°C (-40 to 167°F)
Operation Humidity : 5 to 95% (non-condensing)
Weight : 340 g (0.75 lb)
