Moxa

MOXA NE-4120-ST Starter Kit

MOXA NE-4120-ST Starter Kit

Regular price $92.00 CAD
Regular price Sale price $92.00 CAD
Sale Sold out

Features and Benefits

  • 10/100 Mbps Ethernet interface
  • Supports a baud rate of up to 230.4 kbps
  • Low power consumption at 1.5 W, with single +5 V input
View full details

Description

MOXA NE-4100 Series Introduction
The NE-4100 network enablers come in three types: drop-in (NE-4100T), RJ45 (NE-4110S/A), and pin-header (NE-4120S/A). Moxa provides a starter kit for each NE-4100 Series module. Each starter kit contains an evaluation board that can be used to evaluate the modules and develop applications. Refer to the Ordering Information section below to see which starter kit can be used with which NE-4100 model. Note: The NE-4100-ST Starter Kits do NOT include a module. To do testing and development, you will also need to purchase at least one NE-4100 Series embedded module. See the Ordering Information section below for a full list of the package contents.

You can also find the NE-4120-ST and NE-4110-ST models in the NE-4100-ST Series.

Specification

Starter Kit for Serial Module:
Hardware Requirements: Compatible Modules: NE-4120T

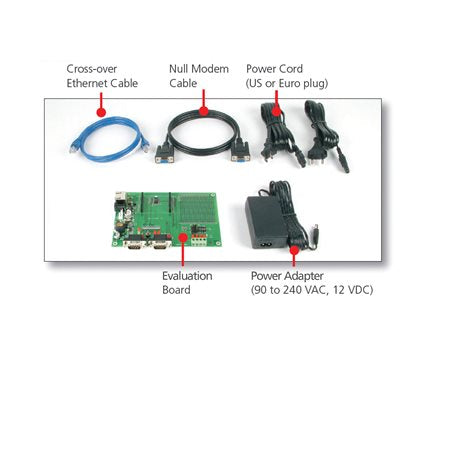

Package Contents:
Device: 1 x NE-4120T Series evaluation board
Cable: 1 x Ethernet, crossover, 1 x Null modem serial
Power Supply: 1 x power cord, EU type, 1 x power cord, US type
Documentation: 1 x document and software CD, 1 x quick installation guide, 1 x warranty card
