Moxa

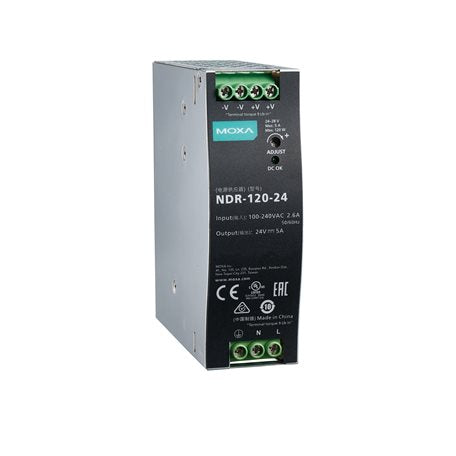

MOXA NDR-120-24 DIN-RAIL POWER SUPPLY

MOXA NDR-120-24 DIN-RAIL POWER SUPPLY

Regular price $143.00 CAD
Regular price Sale price $143.00 CAD
Sale Sold out
We have 188 in stock

Features and Benefits

  • Input power 90 to 264 VAC, 47 to 63 Hz, 120 to 370 VDC
  • Output power 24V DC
  • 120W
  • DIN-rail
View full details

Description

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.

You can also find the NDR-120-48, NDR-240-48 models in the NDR Power Supply Series.

Specification

Over-voltage Protection: Yes (29 to 33 V)
Overload Protection: Not specified
Type: Shut down operating voltage, repower on to recover
Reset: Not specified
Inrush Current: 35 A @ 230 VAC, 20 A @ 115 VAC
Relative Humidity: 20 to 95% (non-condensing)
Safety: UL 508, EN 62368-1, IEC 62368-1
EMC: EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3
