Features and Benefits

  • User-friendly NAT functionality simplifies network integration
  • Hands-free network access control through automatic whitelisting of locally connected devices
  • Ultra-compact size and robust industrial design suitable for cabinet installation
  • Integrated security features to ensure device and network safety
  • Supports secure boot for checking system integrity
  • -40 to 75°C operating temperature
View full details

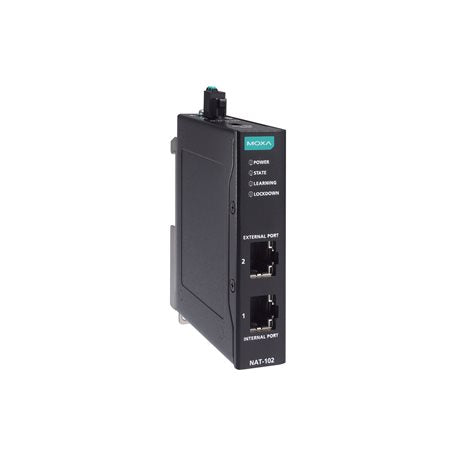

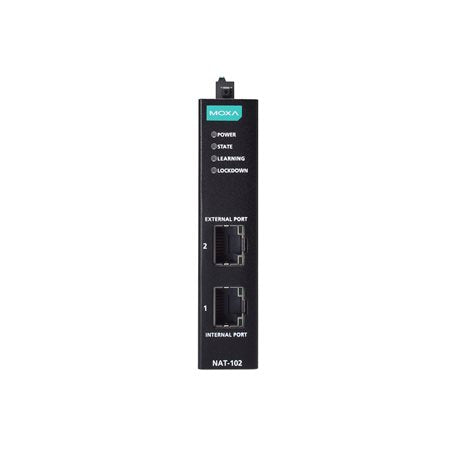

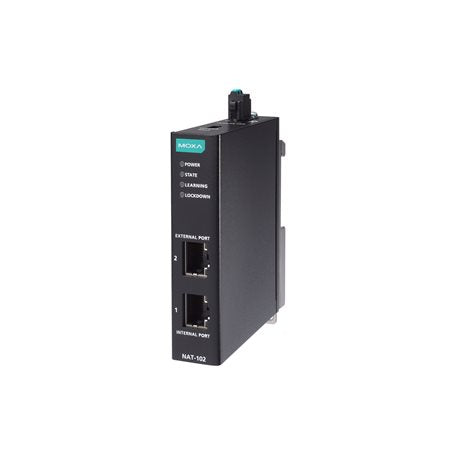

The NAT-102 Series is an industrial NAT device that is designed to simplify the IP configuration of machines in existing network infrastructure in factory automation environments. The NAT-102 Series provides complete NAT functionality to adapt your machines to specific network scenarios without complicated, costly, and time-consuming configurations. These devices also protect the internal network from unauthorized access by outside hosts.

The NAT-102 Series Auto Learning Lock feature automatically learns the IP and MAC address of locally connected devices and binds them to the access list. This feature not only helps you manage access control but also makes device replacements much more efficient.


Ethernet Ports: 2 10/100T(X) Ports (RJ45 connector)
Serial Ports: RS-232 Console Port
Input/Output Channels: Reset button
Supported Protocols: Web Console (HTTP/HTTPS), LLDP, Telnet, TFTP, HTTPS, SSH, Secure Boot, Trust access control, NTP Server/Client, SNTP
MTBF: 2,135,469 hrs
Input Voltage: 12/24/48 VDC
Operating Voltage: -
Overload Current Protection: -
Reverse Polarity Protection: Supported
Power Connector: Removable terminal block
Housing: Metal
IP Rating: -
Dimensions: 20 x 73 x 90 mm (0.79 x 2.87 x 3.54 in)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Safety, EMC, EMI, EMS, Hazardous Locations, NEMA TS2, EN 50121-4, Shock, Freefall, Vibration
