Moxa

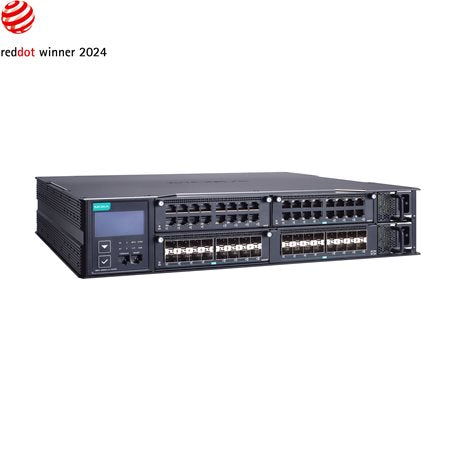

MOXA MRX-Q4064-L3-16XGS RACKMOUNT ETHERNET SWITCH

MOXA MRX-Q4064-L3-16XGS RACKMOUNT ETHERNET SWITCH

Regular price $40,020.00 CAD
Regular price Sale price $40,020.00 CAD
Sale Sold out

Features and Benefits

  • 16 10GbE Ethernet ports
  • Up to 48 1GbE or 2.5GbE ports or SFP slots
  • HAST (High-availability Static Trunk) technology supports backbone reliability
  • Onboard LCM display for at-a-glance status updates supports easy on-site maintenance and operation
  • Dual power modules and 6+2 fan redundancy design for non-stop network operations
  • Real-time system temperature monitoring to protect network and devices
View full details

Description

Introduction
The MRX-Q4064 Series is designed to meet the high-performance, high-availability requirements of industrial video, voice, and data applications resulting from the growing convergence of information technology in industrial sites.

The modular design of the MRX-Q4064 Series supports 16 10GbE ports built-in and up to 48 2.5GbE ports via modules, ideal for building large-scale industrial network applications. 10GbE ports significantly increase the network switching bandwidth, allowing for direct connections to 10GbE-enabled servers and moving data collection and analysis closer to the application site. Additionally, support for multi-port aggregation allows for higher bandwidth backbone, while also leaving room for future network growth.

In addition to accommodating larger numbers of field devices, MRX-Q4064 Series reduces the delay of data transmission and enables the rapid transmission of large amounts of video, voice, and data on high-performance networks. This series is equipped with a redundant multi-fan cooling system and redundant isolated power supplies. It supports industrial high-efficiency Turbo Ring technology, as well as other network redundancy technologies such as ERPS (ITU-T G.8032) and RSTP/STP, which can enhance the reliability and availability of backbone networks in IT/OT convergence applications.

Specification

Power Module:
2 x slots (2 x PWR-300-HVA-IF power modules included)

Physical Characteristics:
IP Rating: IP30
Dimensions: 440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in)
Weight: 12 kg (26 lb)
Fan Module: 8 x slots (8 x XM-4000-FAN-R preinstalled)
Installation: Rack mounting

Interactive Interface:
Onboard LCM display
Push buttons for configuration

Environmental Limits:
Operating Temperature: -10 to 60°C (-14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:
Safety: UL 62368-1, UL 61010-2-201, IEC 62368-1
EMC: EN 55032/35, EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A

EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 Voltage Dips & Interruptions

Railway: EN 50121-4
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Package Drop Test: ISTA 1A
Package Vibration Test: ISTA 1A

MTBF Time: 1,337,959 hrs
Standards: Telcordia (Bellcore), GB

Warranty:
Warranty Period: 5 years
