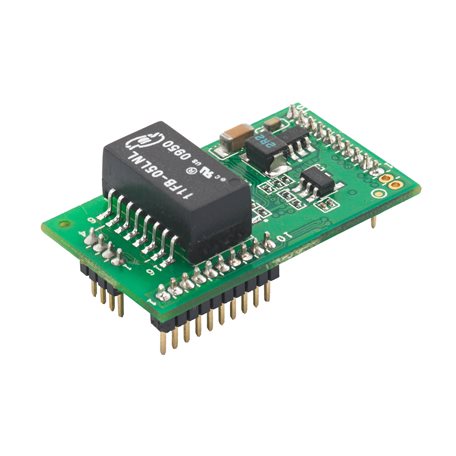

MOXA MiiNePort E2-H-T Embedded Serial Module

MOXA MiiNePort E2-H-T Embedded Serial Module
$138.00 CAD
$138.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Smallest embedded device server available—only 29 x 17 x 12.6 mm
  • Supports EZPower for 3.3 to 5 VDC system power input
  • Green design with extremely low power consumption
  • Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
  • MiiNePort NetEZ technology makes integration incredibly easy
  • Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC
View full details

Description

Data sheet

Specification


Embedded System:
CPU: 32-bit Arm Core
Flash: 2 MB
SDRAM: 4 MB
Input/Output Interface:
Configurable DIO Channels: 1
Digital Input Channels: 1
Digital Output Channels: 1
Ethernet Interface:
Ethernet Ports: 1 x 10/100BaseT(X) Ports, Auto MDI/MDI-X (8-pin RJ45)
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface:
Serial Ports: 1 x TTL
Baudrate: 50 bps to 230.4 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Physical Characteristics:
Dimensions: 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)
Storage Temperature: -40 to 60°C (-40 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards And Certifications: EMC, EMI, EMS, Shock, Vibration, Environmental Testing
MTBF: 5,515,294 hrs
Power Parameters:
Input Current: 160 mA @ 3.3 VDC max
Input Voltage: 3.3 VDC
