Moxa

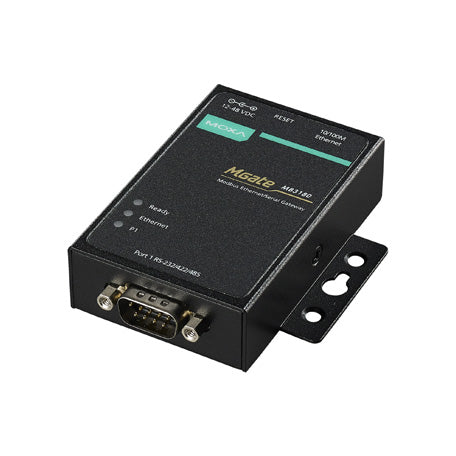

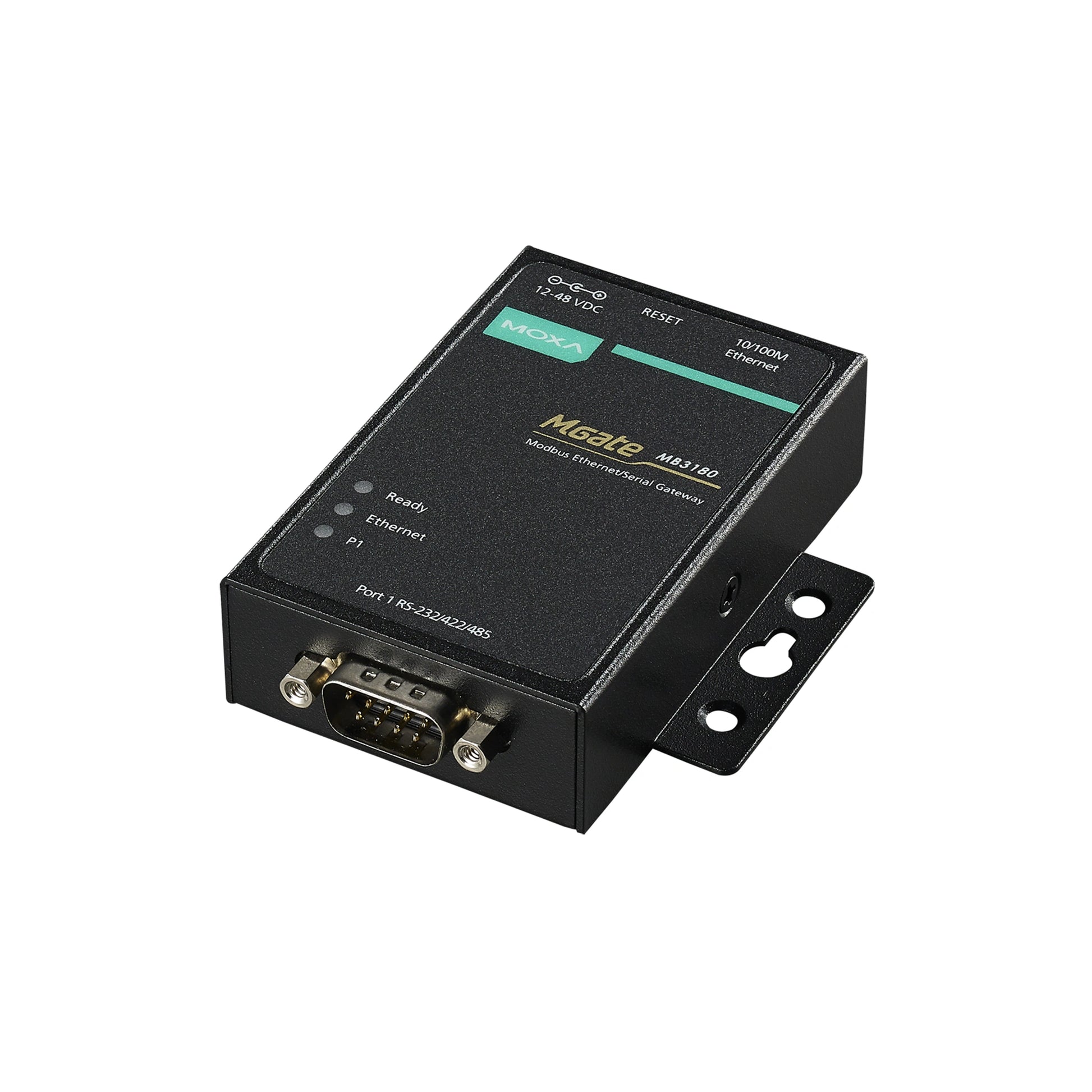

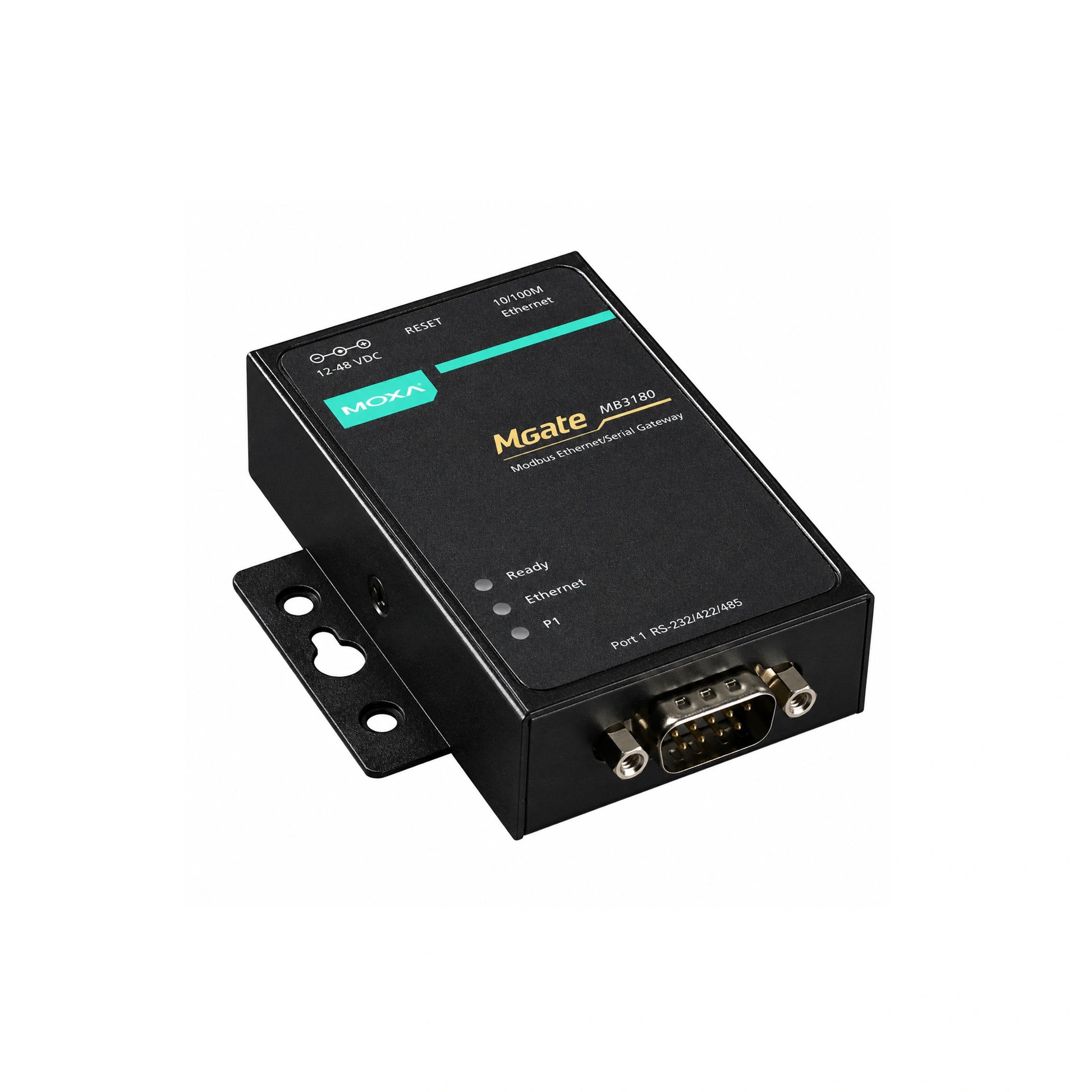

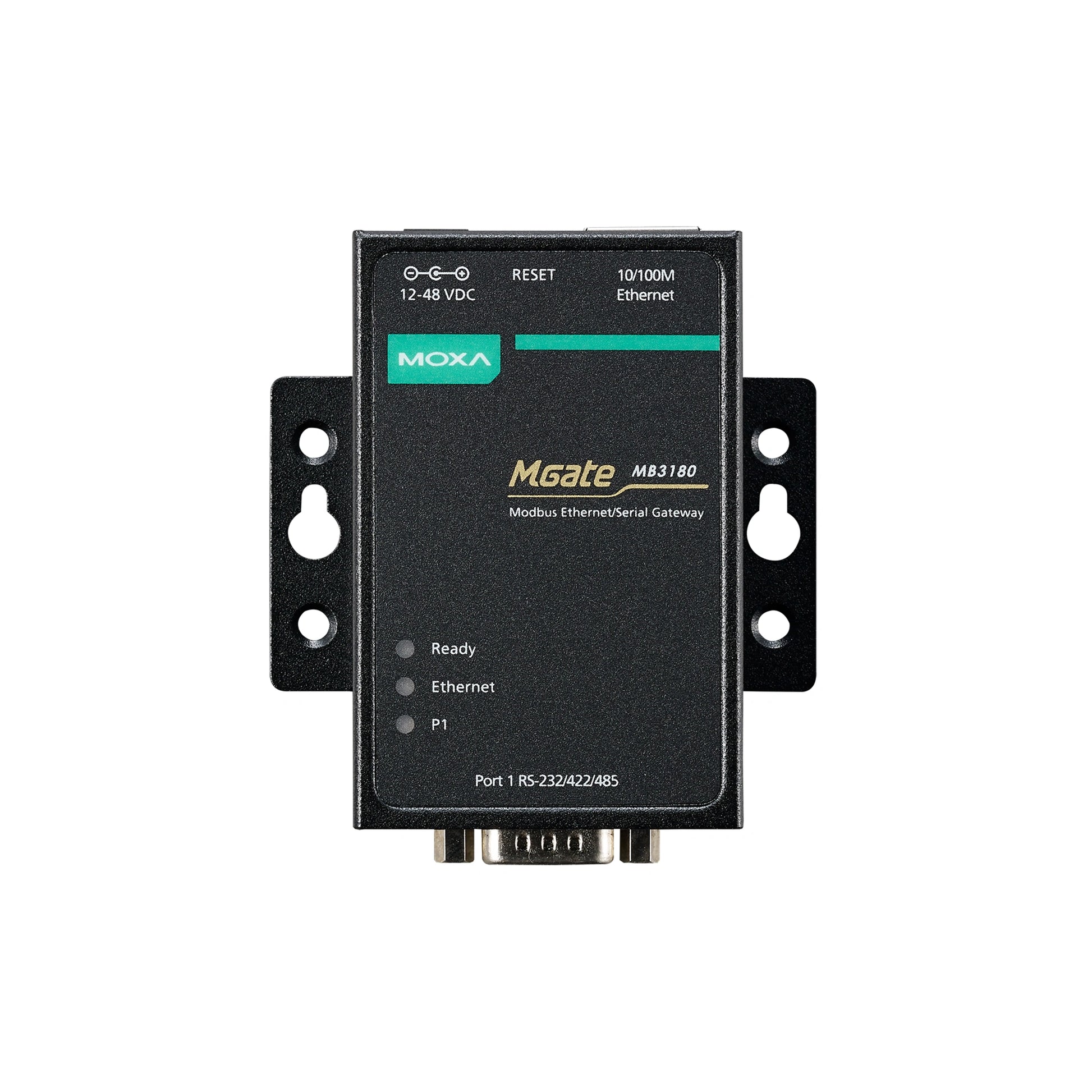

MOXA MGate MB3180 Industrial Ethernet Gateway

MOXA MGate MB3180 Industrial Ethernet Gateway

$375.00 CAD
$375.00 CAD
Sale Out of Stock
We have 36 in stock

Features and Benefits

  • Serial to Ethernet Modbus gateway
  • 1 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 60°C operating temperature
View full details

Description

The MB3180, MB3280, and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU/ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU/ASCII slaves per serial port. For RTU/ASCII masters, up to 32 TCP slaves are supported.

The three standard MGate™ models (MB3180, MB3280, and MB3480) are designed for easy integration of Modbus TCP and RTU/ASCII networks. With these models, Modbus serial slave devices can be seamlessly incorporated into an existing Modbus TCP network, and Modbus TCP slaves can be made accessible to serial masters. The MB3180, MB3280, and MB3480 offer features that make network integration easy, customizable, and compatible with almost any Modbus network.

The MGate™ MB3000 gateways can effectively connect a high density of Modbus nodes to the same network. The MB3280 can manage up to 62 serial slave nodes, and the MB3480 can manage up to 124 serial slave nodes. Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baudrates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.

Data sheet

Specification

10/100Mb RJ45 (Megabit) Ports: 1 Port
RS-232/422/485 Ports: 1 DB9-M port
Serial Communication Parameters: Data Bits: 7, 8; Stop Bits: 1, 2; Parity: None, Even, Odd, Space, Mark
Flow Control: RTS / CTS, DTR / DSR only in RS-232 standard
Protection against electrostatic discharge: 15KV
Ethernet Protocol: Modbus TCP
Serial Protocol: Modbus RTU/ASCII Slave/Master
Power Consumption: 12V DC to 48V DC
Type of power input: Power Input Jack
Dimensions: 22x52x80mm
Standards and Certifications: IP30, Safety: UL 60950-1, EN 60950-1; EMC: CE, FCC; EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A; EMS: EN 55024, EN 61000-4-2 (ESD) Level 2, EN 61000-4-3 (RS) Level 2, EN 61000-4-4 (EFT) Level 2, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 2, EN 61000-4-8 (PFMF) Level 1, EN 61000-4-11
Housing: Metal
Operating Temperature: 0 to 55 ° C
Storage Temperature: -20 to 70 ° C
Operation Humidity: 5% to %95 Non-condensing
Altitude: 2000m
