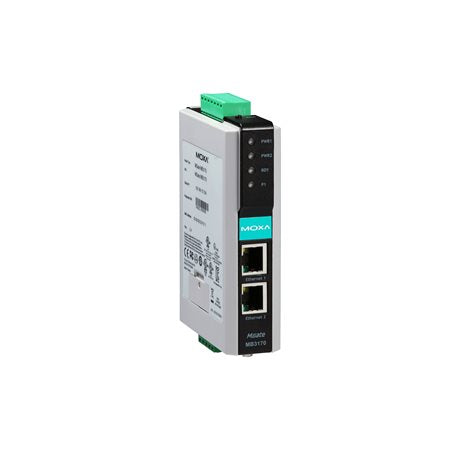

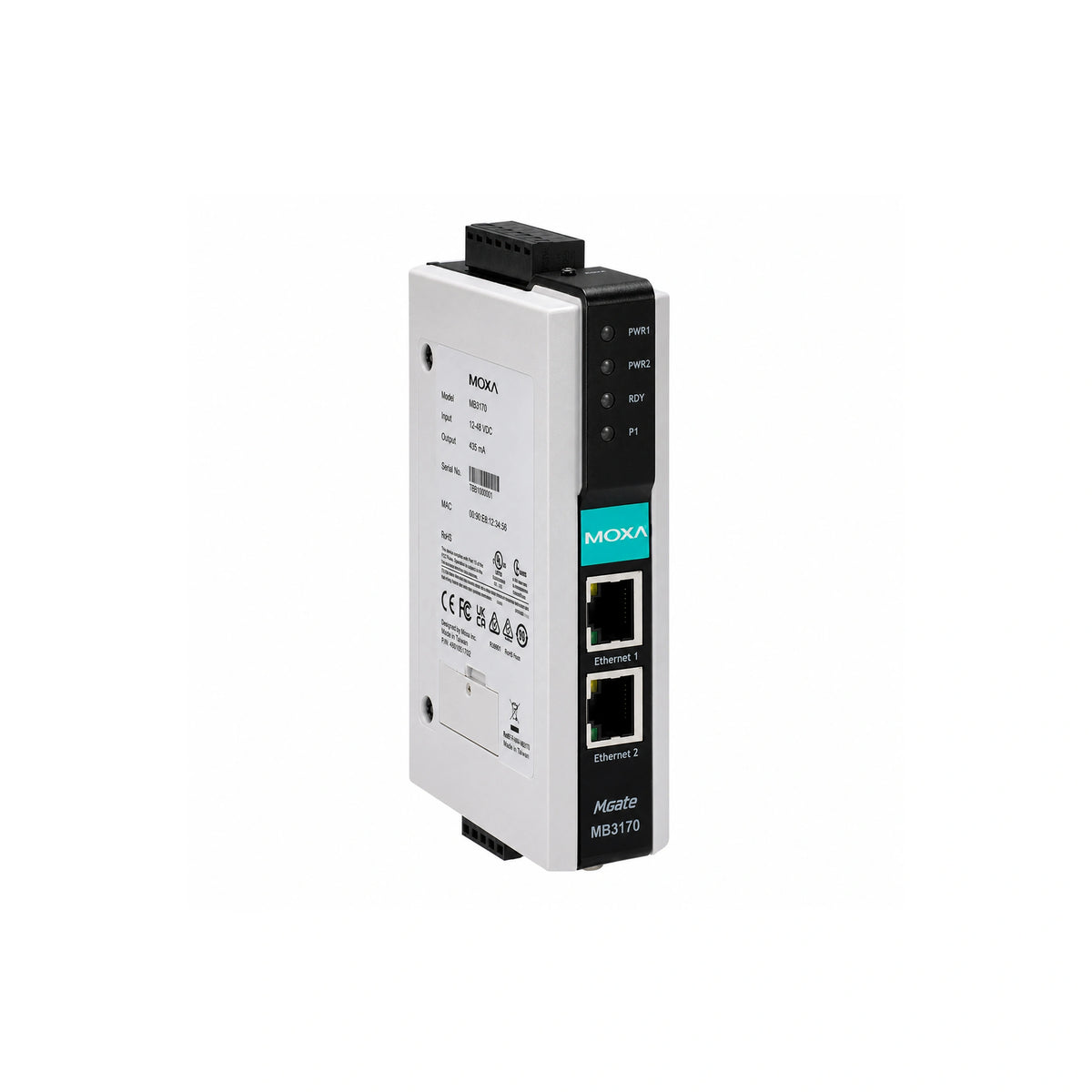

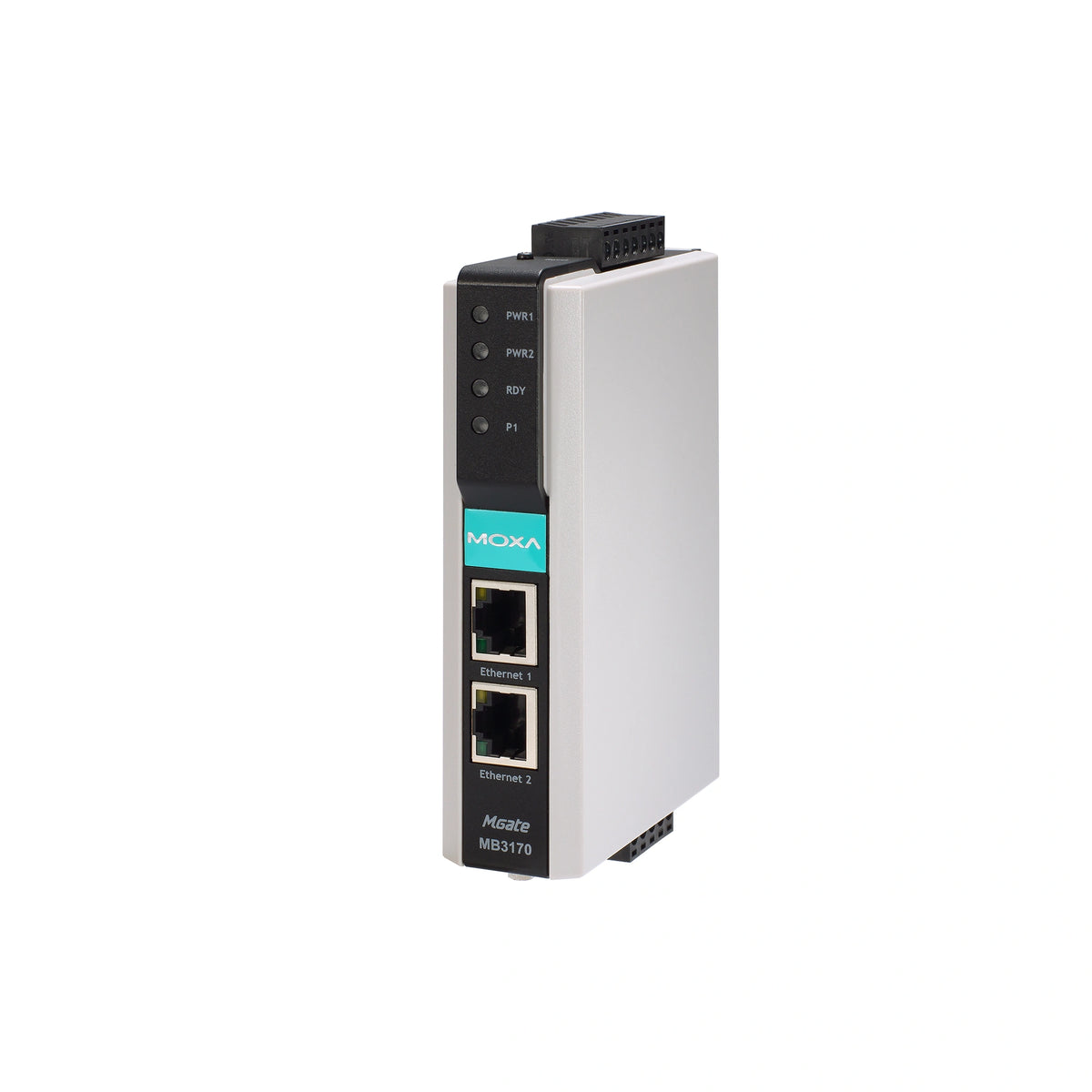

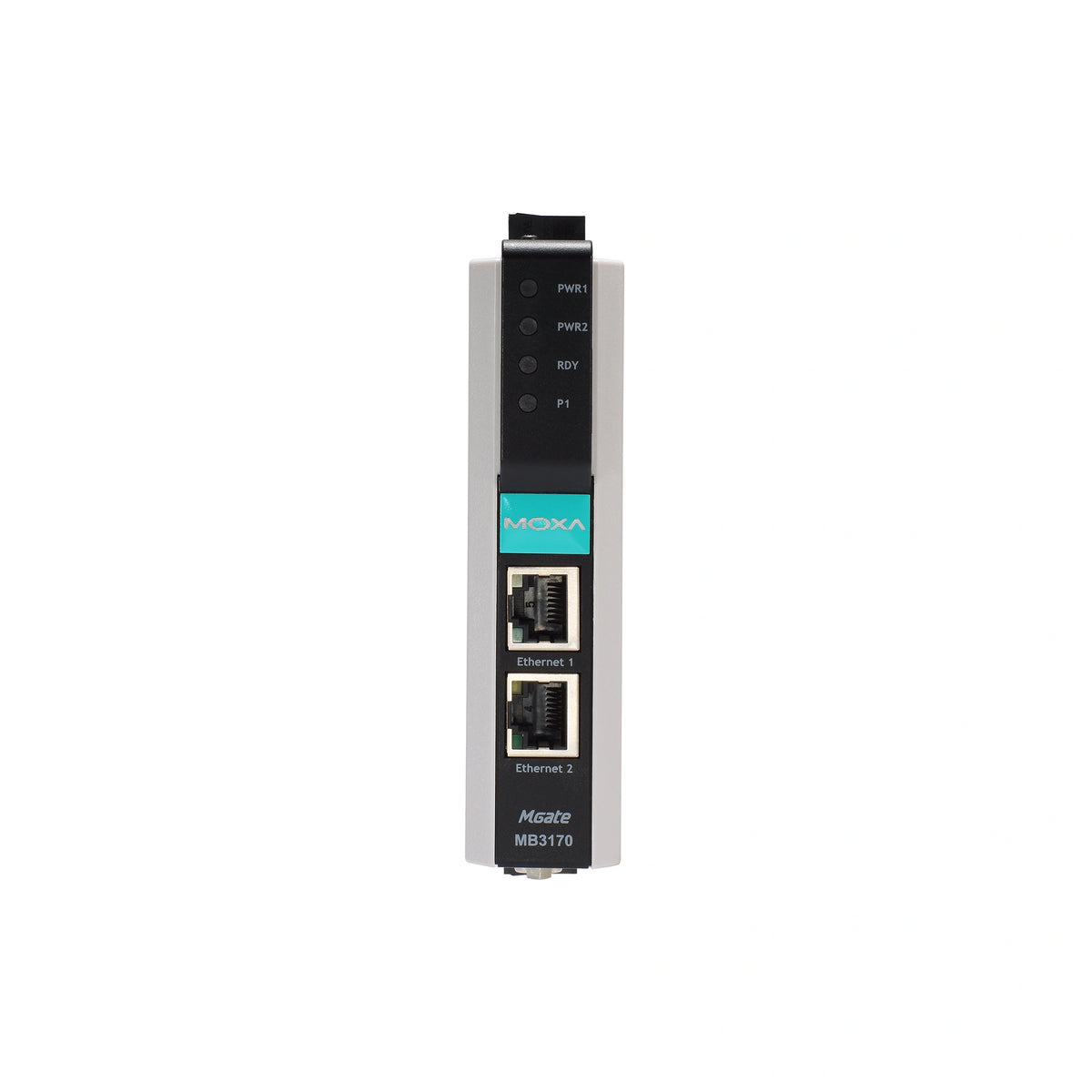

MOXA MGATE MB3170I-T INDUSTRIAL ETHERNET GATEWAY

MOXA MGATE MB3170I-T INDUSTRIAL ETHERNET GATEWAY

$752.00 CAD
$752.00 CAD
Sale Sold out

Features and Benefits

  • Serial to Ethernet Modbus gateway
  • 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 port
  • 12 to 48 VDC input power
  • Plastic body
  • -40 to 75°C operating temperature
  • 2kV isolation
View full details

Description

The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 Series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.

You can buy the MOXA MGate MB3170I-M-SC Industrial Ethernet Gateway, which is applicable in Oil & Gas, Marine industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Data sheet

Specification

10/100Mb RJ45 (Megabit) Ports: Yes: 2 Ports
RS-232 Ports: No
RS-422/485 Ports: No
RS-232/422/485 Ports: Yes: 1 Port
Serial Communication Parameters: Data Bits: 7, 8; Stop Bits: 1, 2; Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR only in RS-232 standard
Data transfer speed (Baudrate): 0.05Kbps to 921.6kbps
RS-485 Flow Control: ADDC
Protection against electrostatic discharge: 15KV
Electrical isolation: 2KV
Ethernet Protocol: Modbus TCP
Serial Protocol: Modbus RTU/ASCII Slave/Master
Management: Web Console, Serial Console, Telnet Console, Windows Utility, MGate Manager
Supported software: Smart Routing, MXview, SNMP v1
Compatible operating systems: Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 x64
Power Consumption (Output Adapter): 12V DC to 48V DC
Type of power input: Terminal
Dimensions: 29x89.2x118.5mm
Standards and Certifications: IP30, Safety: UL 60950-1, EN 60950-1; EMC: CE, FCC; EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A; EMS: EN 55024, EN 61000-4-2 (ESD) Level 2, EN 61000-4-3 (RS) Level 2, EN 61000-4-4 (EFT) Level 2, EN 61000-4-5 (Surge) Level 2, EN 61000-4-6 (CS) Level 2, EN 61000-4-8 (PFMF) Level 1, EN 61000-4-11
Housing: Plastic
Operating Temperature: -40 to 75 °C
Storage Temperature: -40 to 85 °C
Operation Humidity: 5% to %95 Non-condensing
Altitude: -
