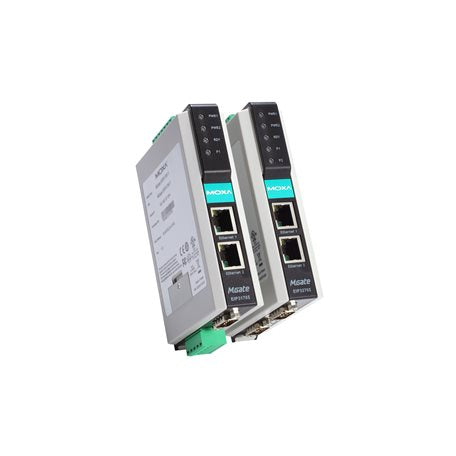

MOXA MGATE EIP3170I INDUSTRIAL ETHERNET GATEWAY

MOXA MGATE EIP3170I INDUSTRIAL ETHERNET GATEWAY

$699.00 CAD
$699.00 CAD
Sale Sold out

Features and Benefits

  • 2 kV Serial Isolation
  • EtherNet/IP-to-DF1 gateway
  • 1 x Serial port (RS-232: DB9 male, RS-422/485: Terminal block)
  • 12 to 48 VDC input power
  • Plastic top cover, metal bottom plate
  • 0 to 60°C operating temperature
View full details

Description

Introduction

MGate™ EIP3000 gateways provide Ethernet/IP-to-DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With several innovative functions, the MGate™ Series overcomes the difficulties of connecting legacy serial devices and SCADA software. Both 1 and 2-port gateways are available for use with different-sized control networks.

Protocol Conversion between DF1 and EtherNet/IP

By supporting PCCC objects on CIP, the MGate™ EIP3000 can communicate seamlessly with SCADA software such as RSLinx. For users who develop control software based on EtherNet/IP, the MGate EIP3000 offers the standard interface for connection.

Support for Multiple EtherNet/IP Connections

MGate™ EIP3000 gateways support up to 16 EtherNet/IP clients and servers simultaneously. Each client can send up to 16 requests at a time, and the multiple connection capability can help establish redundancy for more complex control systems.

Windows Utility for Easy Configuration and Traffic Monitoring

Moxa provides a user-friendly Windows utility with multi-language support. The utility supports a traffic monitoring function for EtherNet/IP and DF1 protocols, and not only logs events initiated by the gateway and records all commands and responses that pass through the gateway. The utility helps users determine the root cause of failures and performance bottlenecks.

You can also find the MGate EIP3170-T, MGate EIP3170I, and MGate EIP3270 models in the MGate EIP3170/MGate EIP3270 Series.


Data sheet

Specification

10/100Mb RJ45 (Megabit) Ports: Yes: 2 Ports
RS-232 Ports: No
RS-422/485 Ports: No
RS-232/422/485 Ports: Yes: 1 Port, DB9 male for RS-232; Terminal block for RS-422/485
Serial Communication Parameters: Data Bits: 8; Stop Bits: 1, 2; Parity: None, Even, Odd
Flow Control: RTS/CTS, DTR/DSR (RS-232 only)
Data transfer speed (Baudrate): 1200 bps to 921.6 kbps
RS-485 Flow Control: -
Protection against electrostatic discharge: -
Electrical isolation: Yes: 2 kV
Ethernet Protocol: Ethernet/IP (PCCC)
Serial Protocol: DF1
Management: ARP, DHCP Client, SNMPv1, TCP/IP, Telnet, UDP
Supported software: SCADA softwares, MGate Manager, Telnet Console
Compatible operating systems: -
Power Consumption (Output Adapter): -
Type of power input: Redundant dual DC power inputs
Dimensions: with ears: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in), without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Standards and Certifications: IP30, Safety: EN 60950-1, UL 508; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS, ATEX, Class I Division 2, IECEx1; DNV-GL; IEC 60068-2-32; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-64; Telcordia SR332
Housing: Plastic top cover, metal bottom plate
Operating Temperature: 0 to 60 °C
Storage Temperature: -40 to 85 °C
Operation Humidity: 5 to 95% (non-condensing)
Altitude: -
