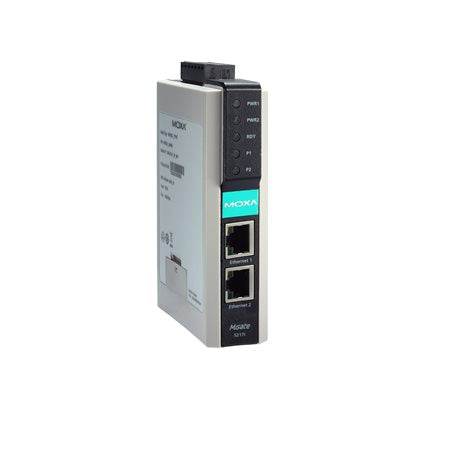

MOXA MGATE 5217I-600-T MODBUS RTU/ASCII/TCP TO BACNET/IP GATEWAY

$1,230.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

600 Data Points
Supports Modbus RTU/ASCII/TCP master/client
Supports BACnet/IP slave/server
Supports COV for fast data communication
Supports virtual nodes designed to make each Modbus device as a separate BACnet/IP device
Configures Modbus commands quickly by editing an Excel spreadsheet
Embedded traffic and diagnostic information for easy troubleshooting
Built-in Ethernet cascading for easy wiring
Industrial design with -40 to 75°C operating temperature range
Serial port with 2 kV isolation protection
Dual AC/DC power supply
Security features based on IEC 62443

View full details

Description

Data sheet

Specification

10/100Mb RJ45 (Megabit) Ports: Yes: 2 Ports
RS-232 Ports: No
RS-422/485 Ports: No
RS-232/422/485 Ports: Yes: 2 DB9-M Ports
Other ports: No
Serial Communication Parameters: Data Bits: 7, 8; Stop Bits: 1, 2; Parity: None, Even, Odd, Space, Mark
Flow Control: RTS Toggle (RS-232 only), RTS/CTS, DTR/DSR
Data transfer speed (Baudrate): 50 bps to 921.6 kbps
RS-485 Flow Control: ADDC® (automatic data direction control)
Protection against electrostatic discharge: -
Electrical isolation: Yes: 2 kV (built-in)
Ethernet Protocol: Modbus TCP Client (Master), BACnet/IP Server (Slave)
Serial Protocol: Modbus RTU/ASCII Master
Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client
Supported software: -
Compatible operating systems: -
Power Consumption (Output Adapter): 12V DC to 48V DC
Type of power input: Screw-fastened Euroblock terminal
Dimensions: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Standards and Certifications: EMC, EMI, EMS, Safety, Freefall, Shock, Vibration
Housing: Plastic
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5% to %95 Non-condensing
Altitude: -
