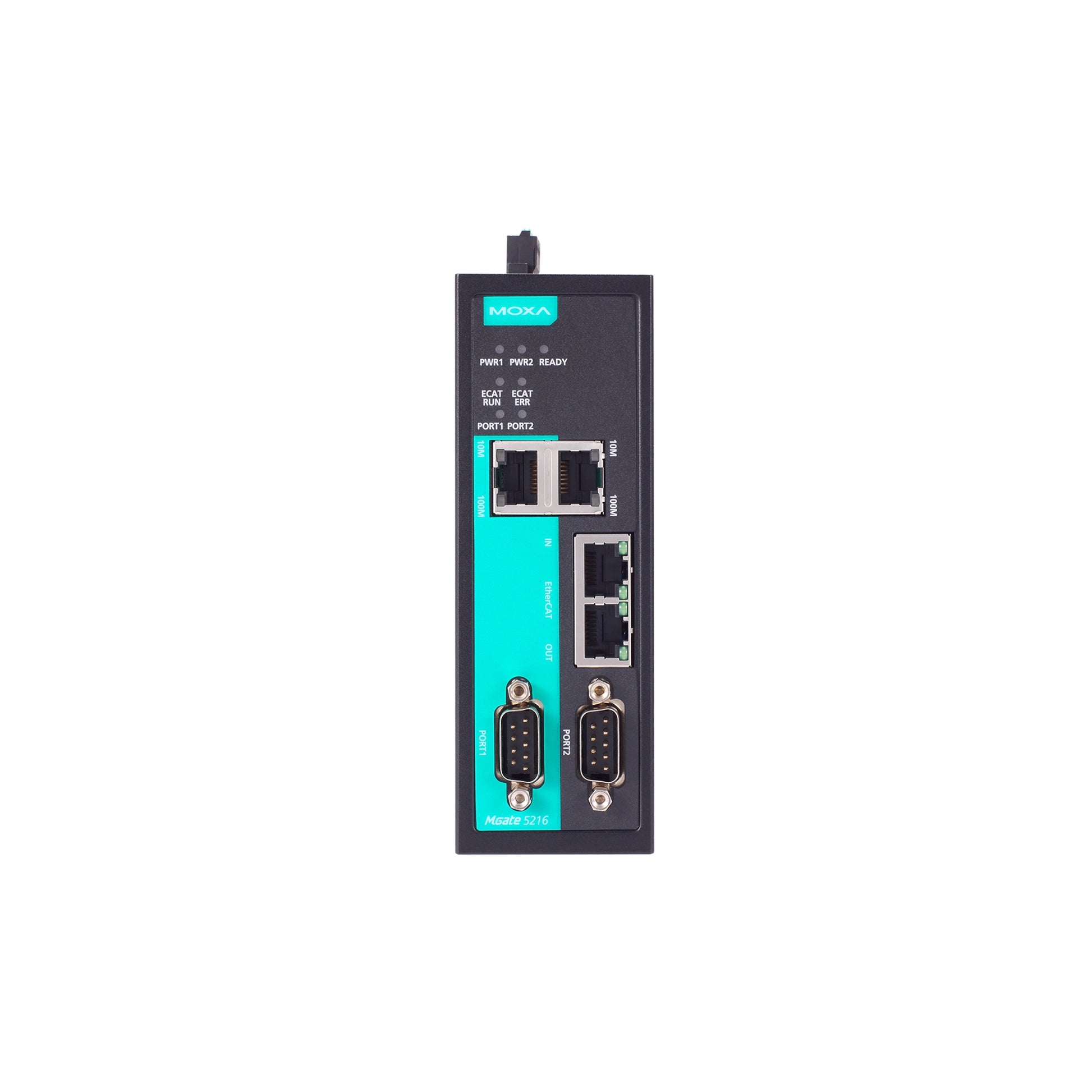

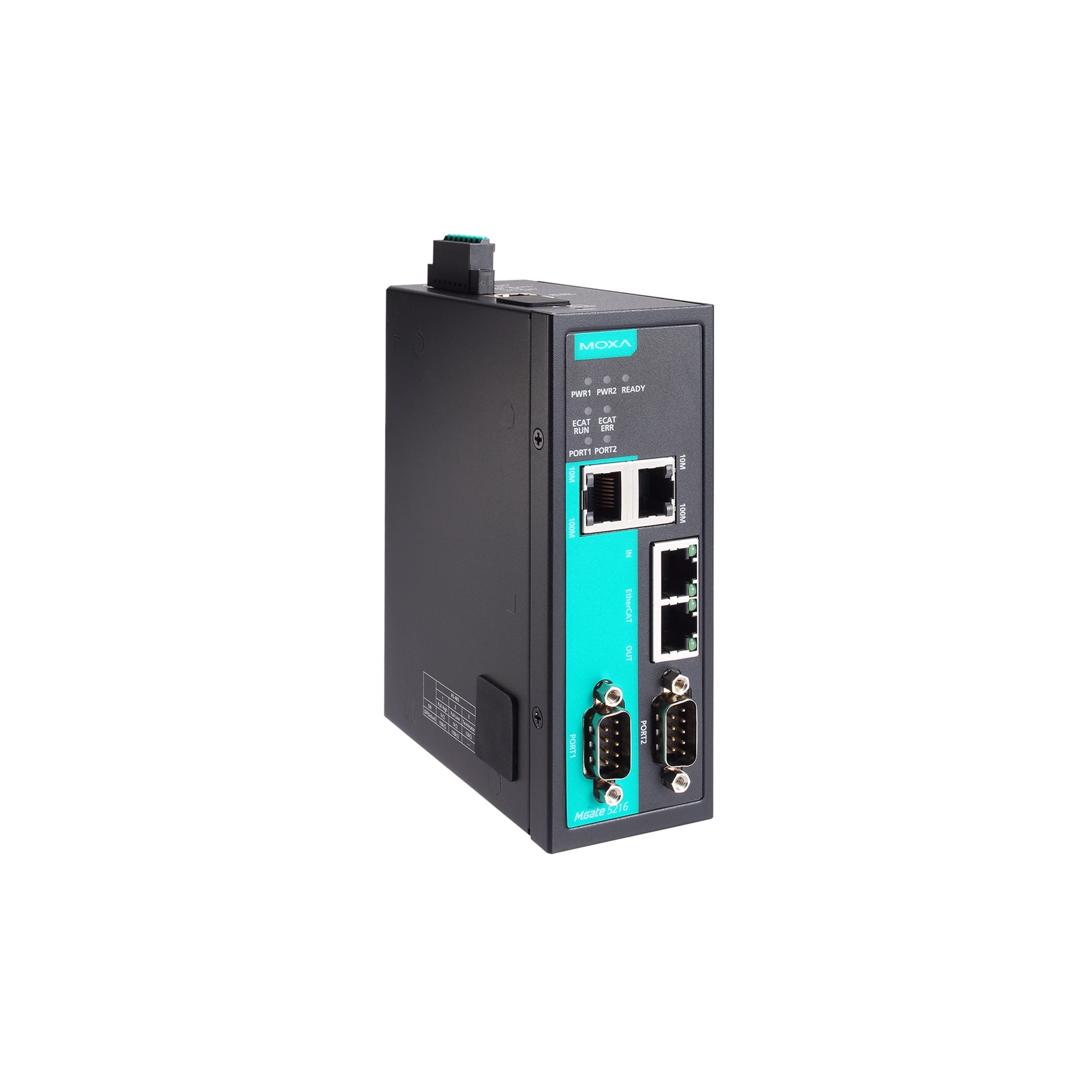

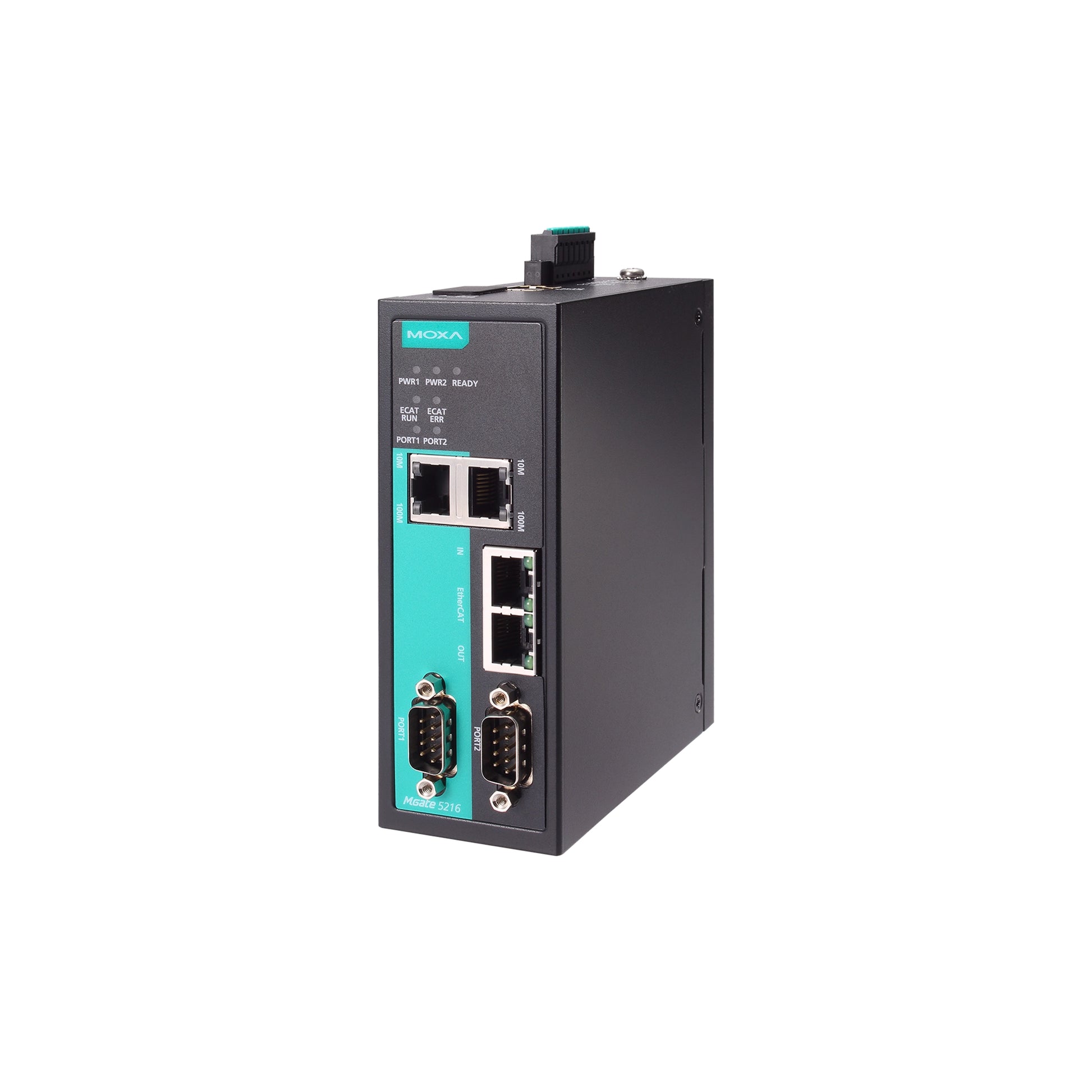

MOXA MGate 5216 Industrial Ethernet Gateway

MOXA MGate 5216 Industrial Ethernet Gateway
$1,565.00 CAD
$1,565.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Converts Serial/Modbus to EtherCAT
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x RS-232/422/485 Serial ports (DB9 male connector)
  • 2 KV isolation protection for Serial ports
  • Supports MicroPython programming for proprietary serial
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • 0 to 60°C operating temperature
View full details

Description

MGate 5216 Series EtherCAT industrial Ethernet gateways convert data between Modbus RTU/ASCII, proprietary serial, and EtherCAT protocols. All models are protected by a rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation.

Modbus is one of the most widely used industrial communication protocols, and EtherCAT is commonly used in factory automation and semiconductor fields. MGate 5216 supports both Modbus RTU/ASCII client and MicroPython, enabling programming in proprietary serial protocol so that you can easily connect your Modbus devices or serial devices to the EtherCAT host.

The MGate 5216 EtherCAT gateways are designed for easy configuration and quick maintenance. An intuitive web console can be used to implement remote maintenance tasks. A comprehensive collection of troubleshooting tools reduces configuration time and system downtime, and the rugged design is suitable for industrial applications.



You can also find the MGate 5216-T model in the Industrial Ethernet Gateways.

Data sheet

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection : 1.5 kV (built-in)
Protocols : Ethernet: EtherCAT Slave; Serial: Modbus RTU/ASCII Client (Master)


Serial Port Specifications
Number of Ports : 2 Ports
Console Port : RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
Connectors : DB9 male
Serial Standards : RS-232/422/485
Isolation : 2 kV (built-in)

Serial Communication Parameters
Data Bits : 7, 8
Stop Bits : 1, 2
Parity : Even, Odd, Space, Mark, None
Flow Control : RTS Toggle (RS-232 only), RTS/CTS
Baudrate : 50 bps to 921.6 kbps

Serial Signals
RS-232 Signals : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals : Data+, Data-, GND
RS-485-4w Signals : Tx+, Tx-, Rx+, Rx-, GND

General
MTBF : 2,305,846 hrs

Memory
microSD Slot : Up to 32 GB (SD 2.0 compatible)

Power Requirements
Input Current : 416 mA (max)
Input Voltage : 12 to 48 VDC
Power Connector : Spring-type Euroblock terminal

Physical Characteristics
Dimensions : 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Housing : Metal
Operating Temperature : 0 to 60°C (32 to 140°F)
Weight : 589 g (1.30 lb)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)
Installation : DIN-rail mounting
