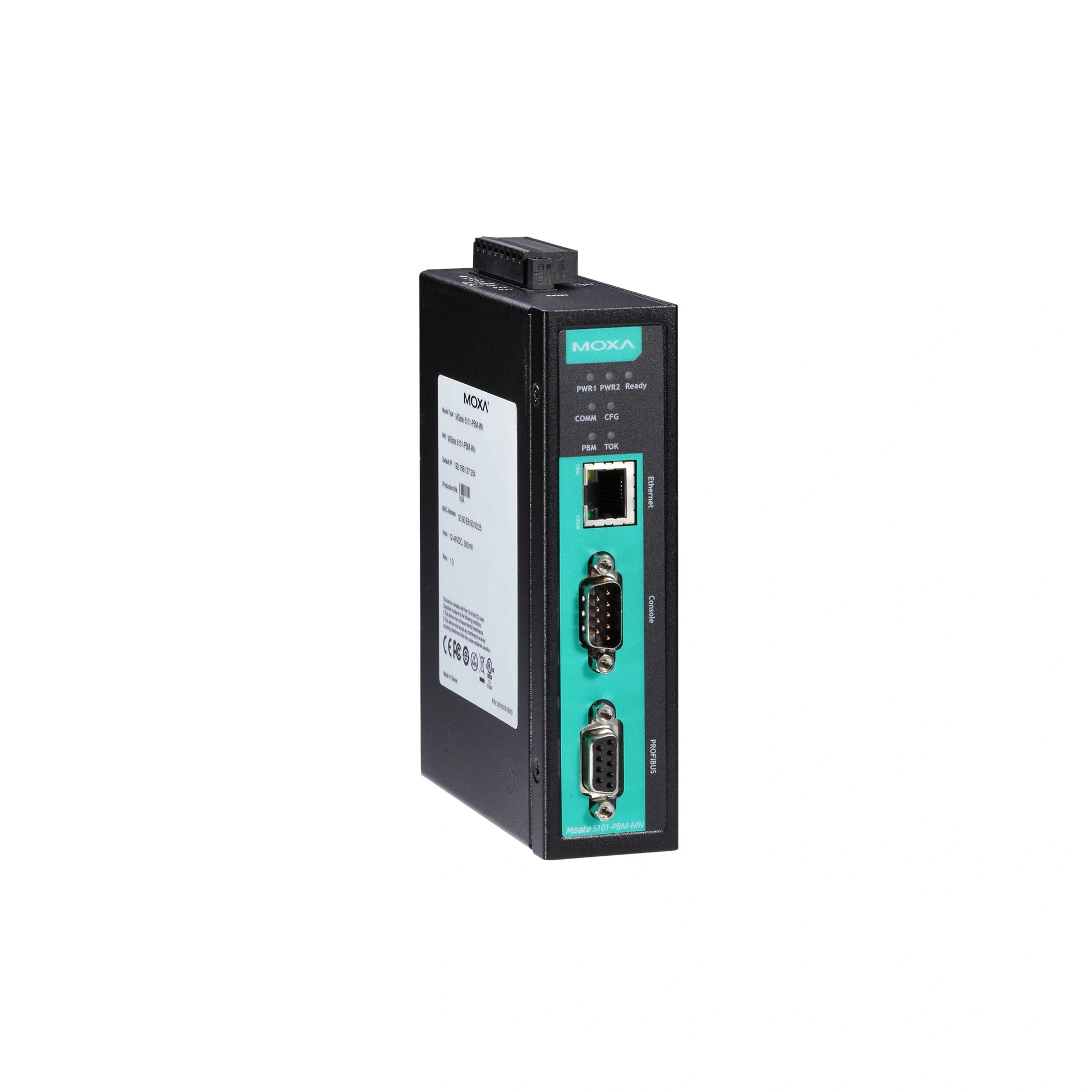

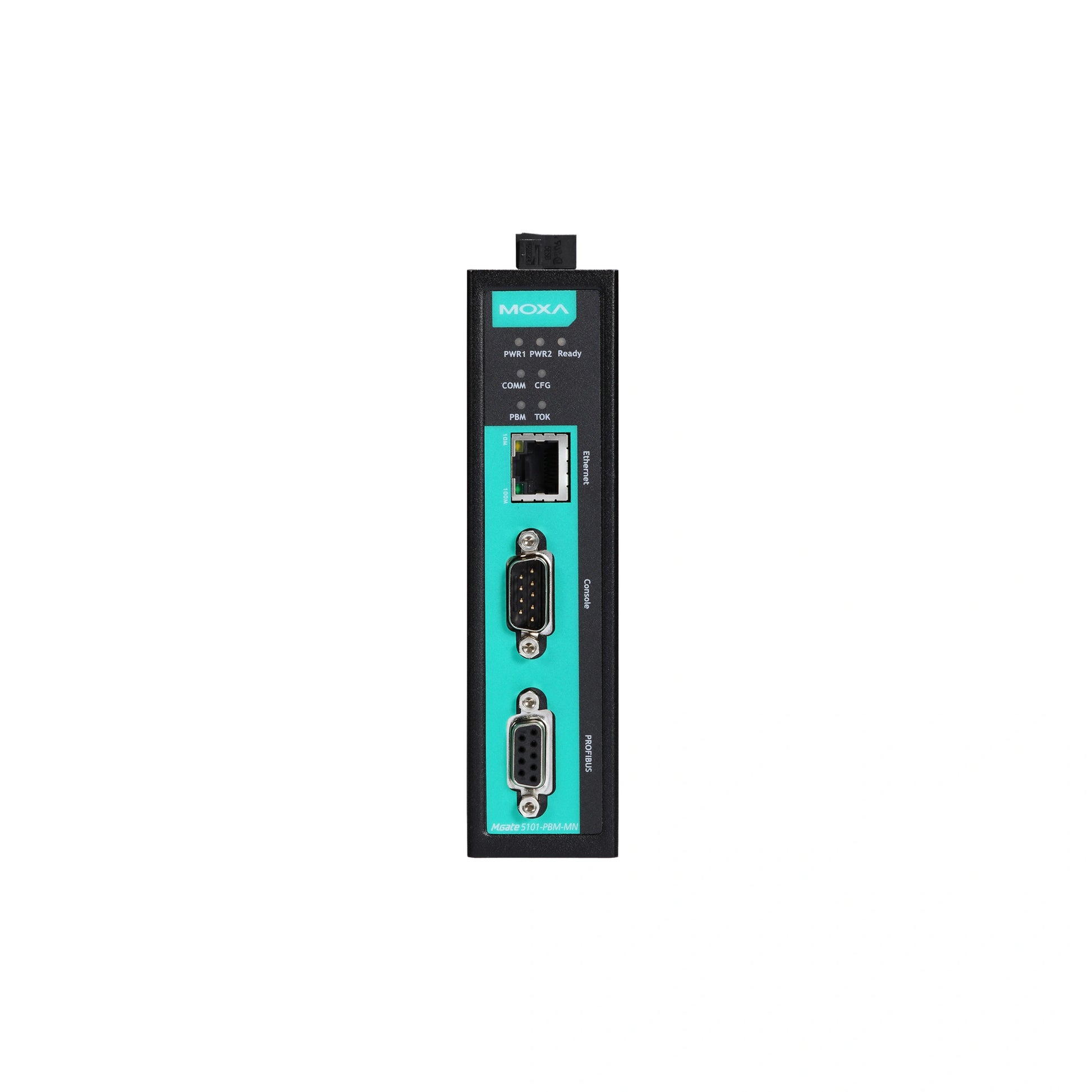

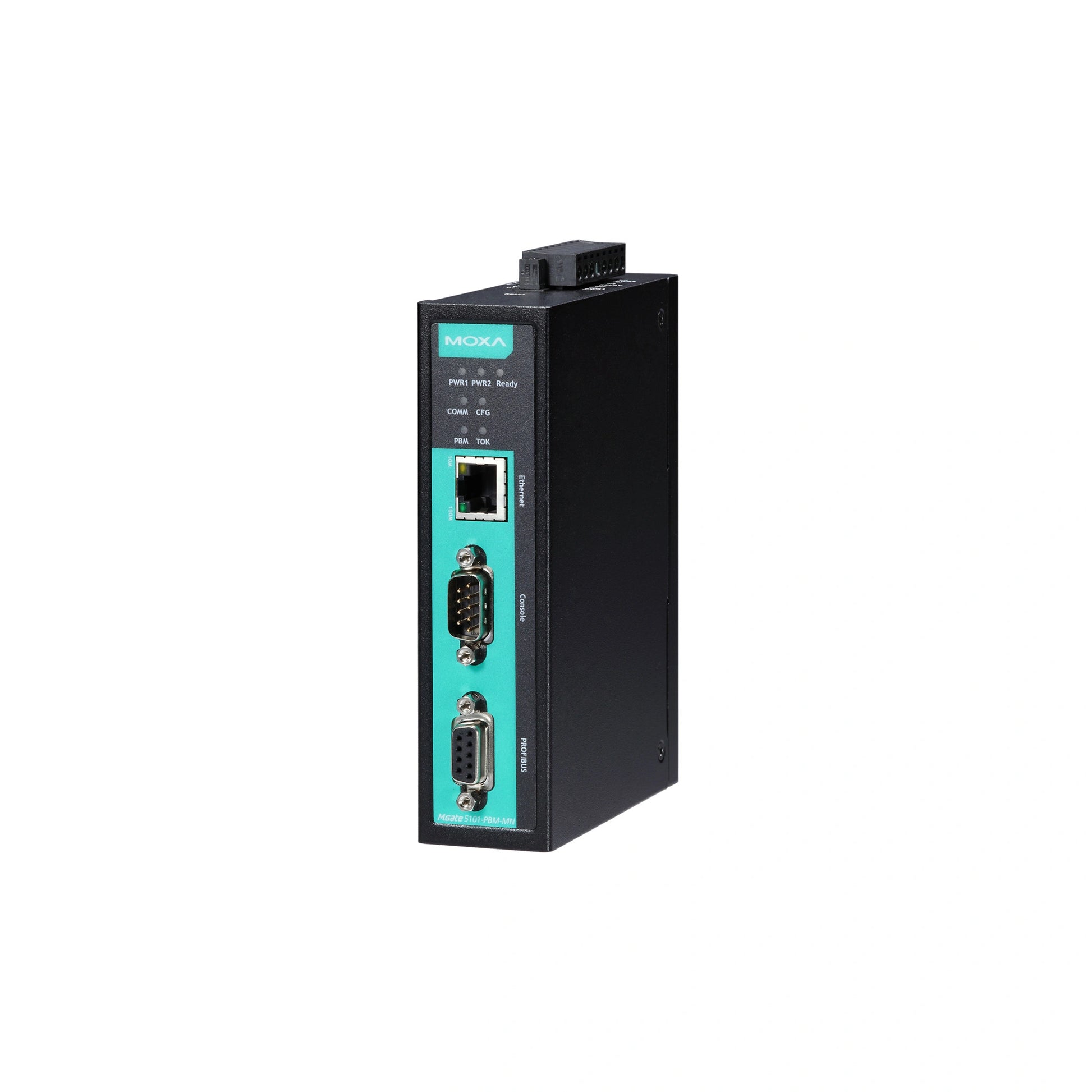

MOXA MGate 5102-PBM-PN-T INDUSTRIAL ETHERNET GATEWAY

MOXA MGate 5102-PBM-PN-T INDUSTRIAL ETHERNET GATEWAY

$2,094.00 CAD
$2,094.00 CAD
Sale Sold out

Features and Benefits

  • Protocol conversion between PROFIBUS and Modbus TCP
  • Supports PROFIBUS DP V1 master
  • Supports Modbus TCP client/server
  • Automatic scan of PROFIBUS devices and easy configuration
  • Web-based GUI for I/O data visualization
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Status monitoring and fault protection for easy maintenance
  • Supports redundant dual DC power inputs and 1 relay output
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443
View full details

Description

The MGate 5101-PBM-MN gateway provides a communication portal between PROFIBUS devices (e.g. PROFIBUS drives or instruments) and Modbus TCP hosts. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil/gas, power, process automation, and factory automation.



You can also find the MGate 5101-PBM-MN-T model in the Industrial Ethernet Gateways.

Data sheet

Specification

Industrial Gateway: Ethernet Interface
Number of Ports: 1
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)
Modbus TCP: Operation Modes: Modbus TCP Client/Server
Industrial Gateway: Serial Port Specifications
RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Industrial Gateway: PROFIBUS Interface
Protocol: PROFIBUS DP-V1 Master
Number of Ports: 1
Data Rate: 9600 bps to 12 Mbps
Connector: DB9 female
Isolation: 2 kV (built-in)
Industrial Gateway: Software
Configuration Options: Serial Console, Windows Utility, Web Console (HTTP/HTTPS), Telnet/SSH Console
Utility: MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Support: AutoScan, MXview, SNMP (v1, v2, v3), Private MIB
Industrial Gateway: General
MTBF: 1,082,881 hrs
Industrial Gateway: Power Requirements
Input Current: 365 mA @ 12 VDC
Input Voltage: 12 to 48 VDC
Power Connector: Terminal block
Industrial Gateway: Physical Characteristics
Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Housing: Metal, IP30
Operating Temperature: -40 to 85°C (32 to 140°F)
Weight: 500 g (1.10 lb)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Vibration: IEC 60068-2-6, IEC 60068-2-64
Shock: IEC 60068-2-27
Drop: IEC 60068-2-32
Industrial Gateway: Safety
Safety: UL 60950-1, EN 60950-1
Hazardous Location: Class 1 Division 2, ATEX, IECEx
Industrial Gateway: EMC
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
Industrial Gateway: EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
