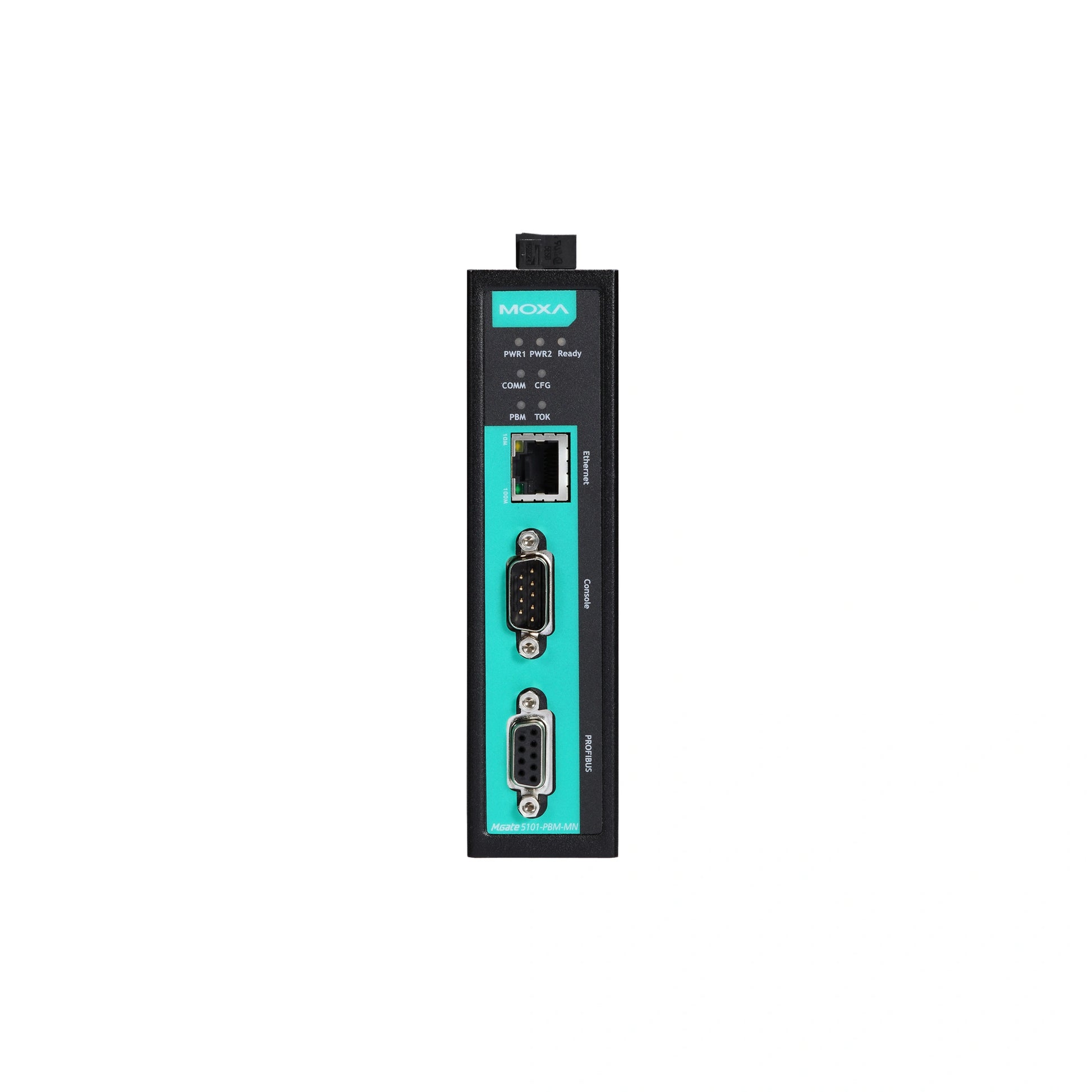

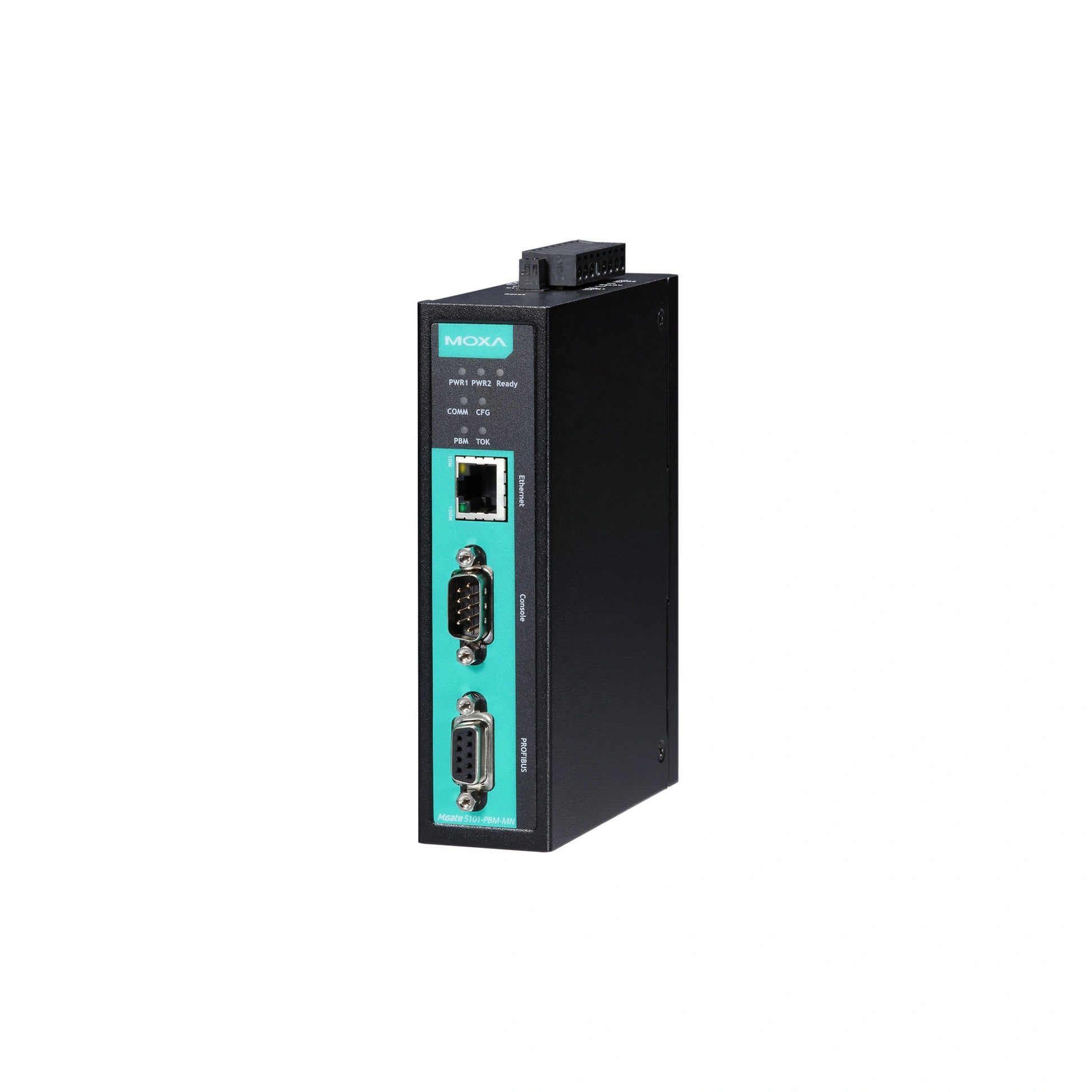

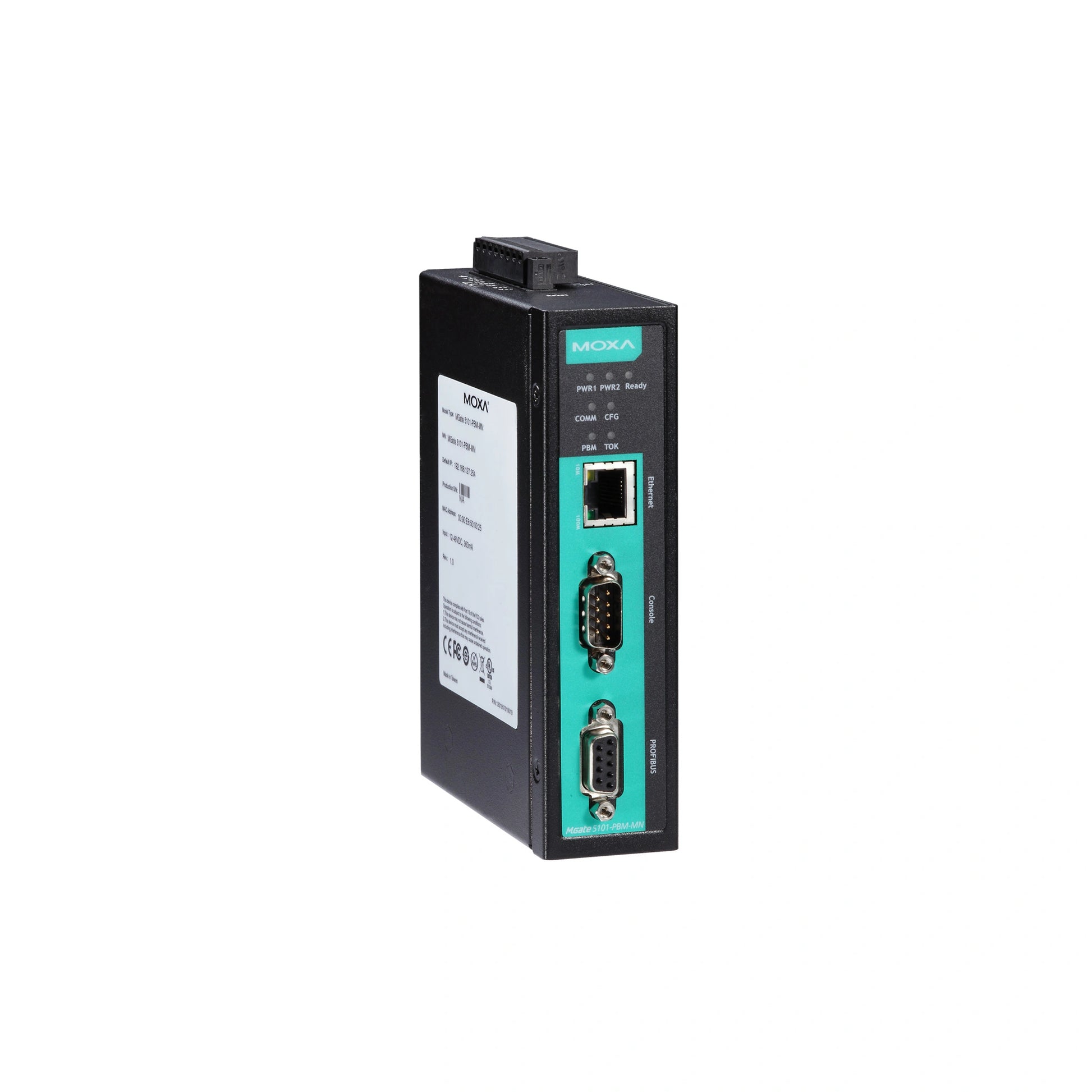

MOXA MGate 5101-PBM-MN Industrial Ethernet Gateway

MOXA MGate 5101-PBM-MN Industrial Ethernet Gateway
$2,003.00 CAD
$2,003.00 CAD
Special Offer Out of Stock

Features and Benefits

  • Converts PROFIBUS to Modbus TCP
  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 1 x PROFIBUS Port (DB9 female connector)
  • 2 KV Isolation protection for PROFIBUS port
  • IP30-rated Metal body design
  • 12 to 48 VDC Redundant dual power inputs
  • 0 to 60°C operating temperature
View full details

Description

The MGate 5101-PBM-MN gateway provides a communication portal between PROFIBUS devices (e.g. PROFIBUS drives or instruments) and Modbus TCP hosts. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil/gas, power, process automation, and factory automation.



You can also find the MGate 5101-PBM-MN-T model in the Industrial Ethernet Gateways.

Data sheet

Specification

Industrial Gateway : Interface
10/100Mb RJ45 (Megabit) Ports : 1 Port (auto MDI/MDI-X connection)
Magnetic Isolation Protection : 1.5 kV (built-in)
Other ports : 1 x PROFIBUS Port with 2 KV isolation (DB9 female connector)
Protocols : Ethernet: Modbus TCP Client (Master), Modbus TCP Server (Slave); Serial: PROFIBUS DP-V1 Master; PROFIBUS: PROFIBUS DP
Number of Ports : -

Industrial Gateway : Serial port specifications
Console Port : RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1)
Connectors : -
Serial Standards : -
Isolation : No

Industrial Gateway : Serial Communication Parameters
Data Bits : -
Stop Bits : -
Parity : -
Flow Control : -
Baudrate : -

Industrial Gateway : Serial Signals
RS-232 Signals : -
RS-422 Signals : -
RS-485-2w Signals : -
RS-485-4w Signals : -

Industrial Gateway : General
Management : ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF : 1,082,881 hrs

Industrial Gateway : Memory
microSD Slot : No

Industrial Gateway : Power Requirements
Input Current : 365 mA @ 12 VDC
Input Voltage : 12 to 48 VDC (Redundant dual power inputs)
Power Connector : Screw-fastened Euroblock terminal

Industrial Gateway : Security
Security : Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Authentication : Local database
Encryption : HTTPS, AES-128, AES-256, SHA-256

Industrial Gateway : Physical Characteristics
Dimensions : 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Standards and Certifications : EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: IEC 60950-1, UL 60950-1, EN 62368-1; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing : Metal
Operating Temperature : 0 to 60°C (32 to 140°F)
Weight : 500 g (1.10 lb)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)
Installation : DIN-rail mounting
