Moxa

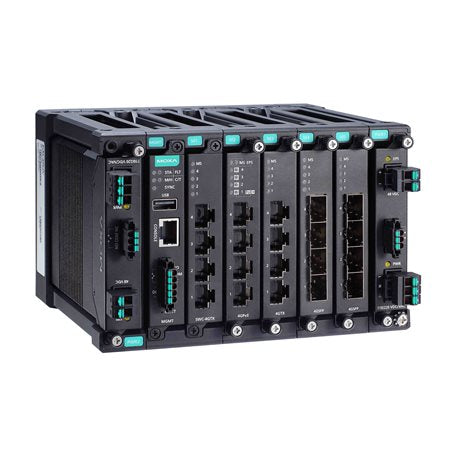

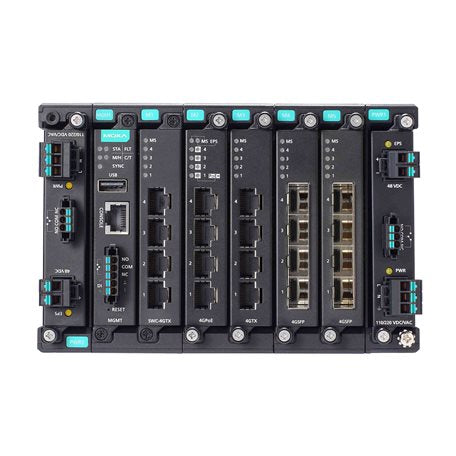

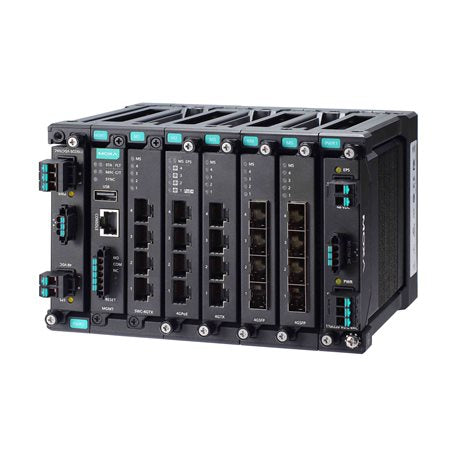

MOXA MDS-G4020-T Modular Managed Ethernet Switch

MOXA MDS-G4020-T Modular Managed Ethernet Switch
$4,287.00 CAD
$4,287.00 CAD
Special Offer Out of Stock

Features and Benefits

  • 4 embedded Gigabit ports, 4 slots for optional 4-port FE/GE modules
  • DIN-rail, Wall mount (with optional kit)
  • -40 to 75°C operating temperature
  • Easy replacement of defect ports to minimize downtime and MTTR
  • Passive backplane to minimize the risk of malfunction
  • Ultra-compact size for easy installation
  • Rugged die-casting design for use in harsh environments
  • HTML5 for a better user experience
View full details

Description

Data sheet

Specification

Switch_And_Hub:
Interface:
Number_Of_Ports: 20 Ports
Ports:
10_100Mb_RJ45_Megabit_Ports: -
10_100_1000Mb_RJ45_Gigabit_Ports: -
100Mb_Fiber_Optic_Multi_Mode_Megabit_Ports: -
100Mb_Fiber_Optic_Single_Mode_Megabit_Ports: -
1000Mb_SFP_Fiber_Optic_Gigabit_Ports: -
10_100Mb_Megabit_POE_Ports: -
100Mb_SFP_Fiber_Optic_Megabit_Ports: -
10_100_1000Mb_Gigabit_POE_Ports: -
Other_Ports: 4 embedded Gigabit ports, 4 slots for optional 4-port FE/GE modules
Features_And_Capabilities:
Backup: -
Led_Indicators:
Led_Per_Port: Yes
Power_Requirements:
Maximum_Power_Consumption: -
Power_Consumption_Output_Adapter: with PWR-LV-P48 installed: 18 to 72 VDC for the switch system, 46 to 57 VDC for PoE systems
Power_Input_Plugin_Redundant: Yes
General:
Fan_Or_Fanless: Fanless
Mtbf: 1,007,790 hrs
Switch_Specifications:
Most_Forwarding_Speed: -
Network_Working_Layers: Layer 2
Switch_Type: Managed
Port_Aggregation: Yes
Physical_Characteristics:
Housing: -
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation_Humidity: 5 to 95% (non-condensing)
Standards_And_Certifications: EMC, EMI, EMS, Safety, EN 50121-4, NEMA TS2, Vibration, Shock, Freefall
Storage_Humidity: -
Standards_And_Protocols:
Protocols_And_Work_Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1D-2004m, IEEE 802.1w, IEEE 802.1p, IEEE 802.1X
Protocols_And_Management_Standards: IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, S
