Moxa

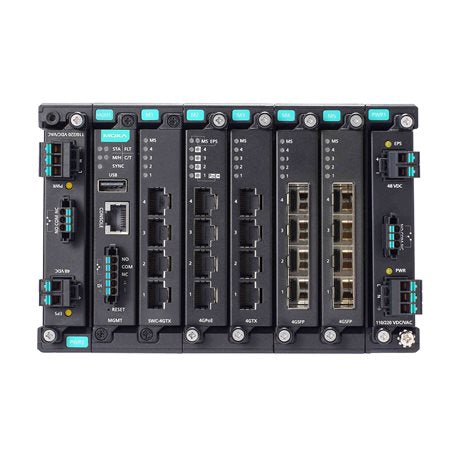

MOXA MDS-G4020 Modular Managed Ethernet Switch

MOXA MDS-G4020 Modular Managed Ethernet Switch

$3,538.00 CAD
$3,538.00 CAD
Sale Sold out

Features and Benefits

  • 4 embedded Gigabit ports, 4 slots for optional 4-port FE/GE modules
  • DIN-rail, Wall mount (with optional kit)
  • -10 to 60°C operating temperature
  • Easy replacement of defect ports to minimize downtime and MTTR
  • Passive backplane to minimize the risk of malfunction
  • Ultra-compact size for easy installation
  • Rugged die-casting design for use in harsh environments
  • HTML5 for a better user experience
View full details

Description

The MDS-G4020 Series modular switches support up to 20 Gigabit ports, including 4 embedded ports, 4 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4000 Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.

The multiple Ethernet modules (RJ45, SFP, and PoE+) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4000 Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and highly durable housing, the MDS-G4000 Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual power modules provides redundancy for high reliability and availability, while LV and HV power module options offer additional flexibility to accommodate the power requirements of different applications.

In addition, the MDS-G4000 Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.

You can also find the MDS-G4020-T model in the MDS-G4020 Series.

Data sheet

Specification

Switch_And_Hub:
Interface:
Number_Of_Ports: 20 Ports
Ports:
10_100Mb_RJ45_Megabit_Ports: "-"
10_100_1000Mb_RJ45_Gigabit_Ports: "-"
100Mb_Fiber_Optic_Multi_Mode_Megabit_Ports: "-"
100Mb_Fiber_Optic_Single_Mode_Megabit_Ports: "-"
1000Mb_SFP_Fiber_Optic_Gigabit_Ports: "-"
10_100Mb_Megabit_POE_Ports: "-"
100Mb_SFP_Fiber_Optic_Megabit_Ports: "-"
10_100_1000Mb_Gigabit_POE_Ports: "-"
Other_Ports: 4 embedded Gigabit ports, 4 slots for optional 4-port FE/GE modules
Features_And_Capabilities:
Backup: "-"
Led_Indicators:
Led_Per_Port: Yes
Power_Requirements:
Maximum_Power_Consumption: "-"
Power_Consumption_Output_Adapter:
With_PWR_LV_P48_Installed: 18 to 72 VDC for the switch system, 46 to 57 VDC for PoE systems
Power_Input_Plug_In_Redundant: Yes
General:
Fan_Or_Fanless: Fanless
Mtbf: 1,007,790 hrs
Switch_Specifications:
Most_Forwarding_Speed: "-"
Network_Working_Layers: Layer 2
Switch_Type: Managed
Port_Aggregation: Yes
Physical_Characteristics:
Housing: "-"
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Operation_Humidity: 5 to 95% (non-condensing)
Standards_And_Certifications: EMC, EMI, EMS, Safety, EN 50121-4, NEMA TS2, Vibration, Shock, Freefall
Storage_Humidity: "-"
Standards_And_Protocols:
Protocols_And_Work_Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1D-2004, IEEE 802.1w, IEEE 802.1p, IEEE 802.1X
Protocols_And_Management_Standards: IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation
Package_Checklist:
Hardware_Installation_Guide: Yes
Power_Adapter: No
Power_Cable: No
