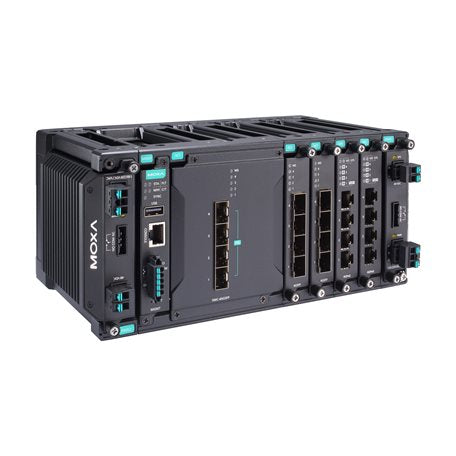

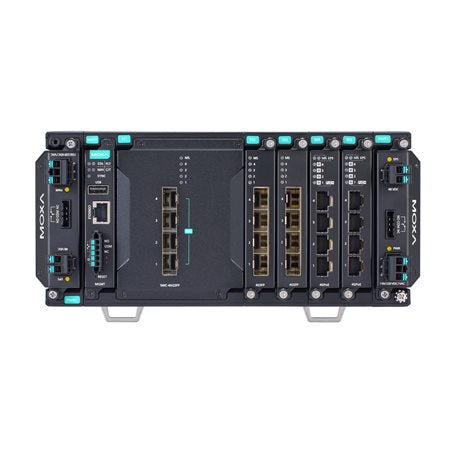

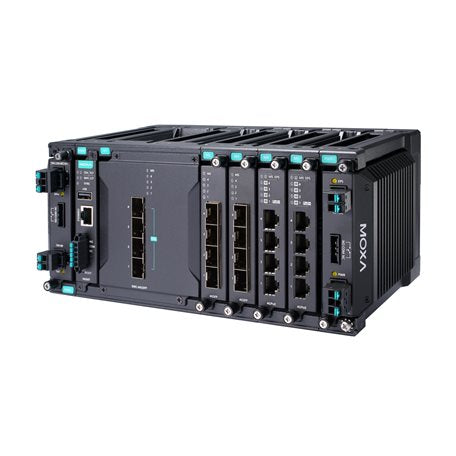

MOXA MDS-G4020-4XGS-T Modular Managed Ethernet Switch

Name: MOXA MDS-G4020-4XGS-T Modular Managed Ethernet Switch
Availability: BackOrder

MOXA MDS-G4020-4XGS-T Modular Managed Ethernet Switch

$8,330.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Pre-installed Modules: 4 embedded 10Gigabit ports
Module: 4 slots for optional 4-port FE/GE modules
Rackmount
Tool-free design for effortlessly adding or replacing modules without shutting down the switch
Support for IEEE 802.3bt PoE for up to 90 W output per port
Ultra-compact size and multiple mounting options for flexible installation
Passive backplane to minimize maintenance efforts
Rugged die-cast design for use in harsh environments
Intuitive, HTML5-based web interface for a seamless experience across different platforms

View full details

Description

The MDS-G4020-4XGS Series modular switches support 4 10GbE + 16 Gigabit ports, including 4 embedded ports, 4 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4020-4XGS Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.

The multiple Ethernet modules (RJ45 and SFP) and power units (24/48 VDC and 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4020-4XGS Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and highly durable housing, the MDS-G4020-4XGS Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual LV or HV power modules provides redundancy for high reliability and availability and also offers flexibility to accommodate the power requirements of different applications.

In addition, the MDS-G4020-4XGS Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.

Data sheet

Specification

Switch_And_Hub:
Interface:
Number_Of_Ports: 20 Ports
Ports:
10_100Mb_RJ45_Megabit_Ports: Yes, Up to 16 ports
10_100_1000Mb_RJ45_Gigabit_Ports: Yes, Up to 16 ports
100Mb_Fiber_Optic_Multi_Mode_Megabit_Ports: No
100Mb_Fiber_Optic_Single_Mode_Megabit_Ports: No
1000Mb_SFP_Fiber_Optic_Gigabit_Ports: Yes, Up to 16 ports
10_100Mb_Megabit_POE_Ports: No
100Mb_SFP_Fiber_Optic_Megabit_Ports: No
10_100_1000Mb_Gigabit_POE_Ports: No
Other_Ports: Yes, 4 x 10G SFP+ Slots
Features_And_Capabilities:
Backup: -
Led_Indicators:
Led_Per_Port: Yes
Power_Requirements:
Maximum_Power_Consumption:
With_PWR_HV_P48_A_PWR_HV_NP: Max. 41.8 W @ 110 VDC, Max. 37.4 W @ 220 VDC, Max. 44.15 W @ 110 VAC, Max. 39.63 W @ 220 VAC
With_PWR_LV_P48_A_PWR_LV_NP: Max. 79.2 W @ 24 VDC, Max. 35.0 W @ 48 VDC
Power_Consumption_Output_Adapter: Same as above
Power_Input_Plugin_Redundant: Yes
General:
Fan_Or_Fanless: Fanless
Mtbf: 794,302 hrs
Switch_Specifications:
Most_Forwarding_Speed: -
Network_Working_Layers: Layer 2
Switch_Type: Managed
Port_Aggregation: Yes
Physical_Characteristics:
Housing: -
Installation: DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)
Operation_Humidity: 5 to 95% (non-condensing)
Standards_And_Certifications: EMC, EMI, EMS, EN 50121-4, NEMA TS2, Vibration, Shock, Safety, Freefall, Hazardous Locations Class I Division 2, ATEX, IEEE 1613, IEC 61850-3
Storage_Humidity: -
Emc: EN 55032/35, EN 61000-6-2/-6-4
Emi: CISPR 32, FCC Part 15B Class A
Standards_And_Protocols:
Protocols_And_Work_Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1D-2004, IEEE 802.1w, IEEE 802.1p, IEEE 802.1X
Protocols_And_Management_Standards: IPv4, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Loopback interface
Package_Checklist:
Hardware_Installation_Guide: Yes
Power_Adapter: No
Power_Cable: No
