Moxa

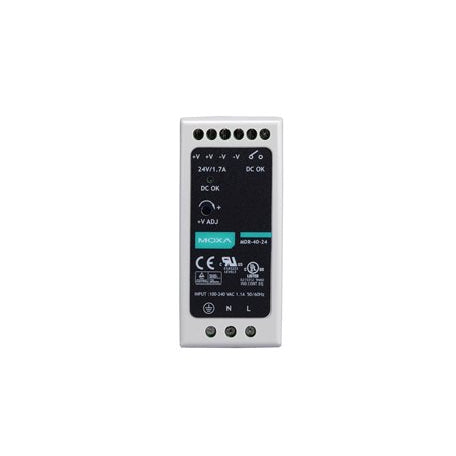

MOXA MDR-40-24 DIN-RAIL POWER SUPPLY

MOXA MDR-40-24 DIN-RAIL POWER SUPPLY

$152.00 CAD
$152.00 CAD
Sale Sold out
We have 1 in stock

Features and Benefits

  • Input power 85V AC to 264V AC or 120V AC to 370V AC
  • Output power 24V DC
  • 40W
  • DIN-rail
View full details

Description

The MDR Power Supply Series supports inrush current protection of 30 A at 115 VAC and 60 A at 230 VAC. The series has an operating temperature range of -20 to 70°C and a three year warranty, which ensures suitability for operating in harsh environments. In addition, the MDR Series has passed a 100% full load burn-in test, is UL/CUL listed, TÜV/CB certified, and CE marked. There are also models available with output ratings from 40 W to 60 W with 24 VDC output.

Data sheet

Specification

Power: 40 W
Input: 85-264 VAC (47-63 Hz) or 120-370 VDC
Output: 40 W, 24 VDC, 0-1.7 A
Over-voltage Protection: 31.2-36 V
Overload Protection: 105-150%
Type: Constant Current Limiting
Reset: Auto Recovery
Inrush Current: 30A at 115 VAC, 60 A at 230 VAC
Dimension: 40 x 90 x 100 mm
Weight: 260 g
Operating Temperature: -20 to 70°C (-4 to 158°F)
Relative Humidity: 20 to 90% RH
Safety: TÜV EN60950-1, UL508 Approved
EMC: CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2
