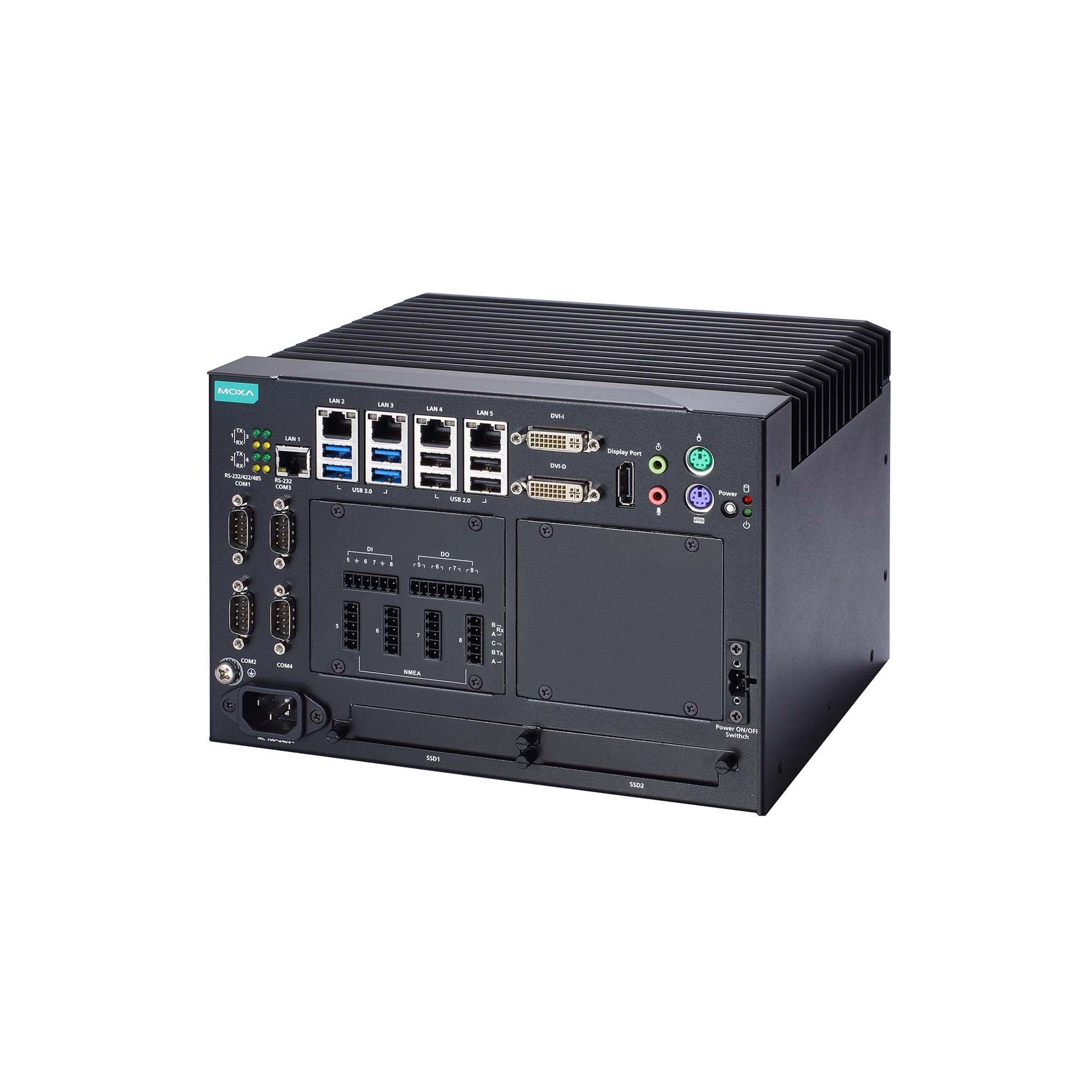

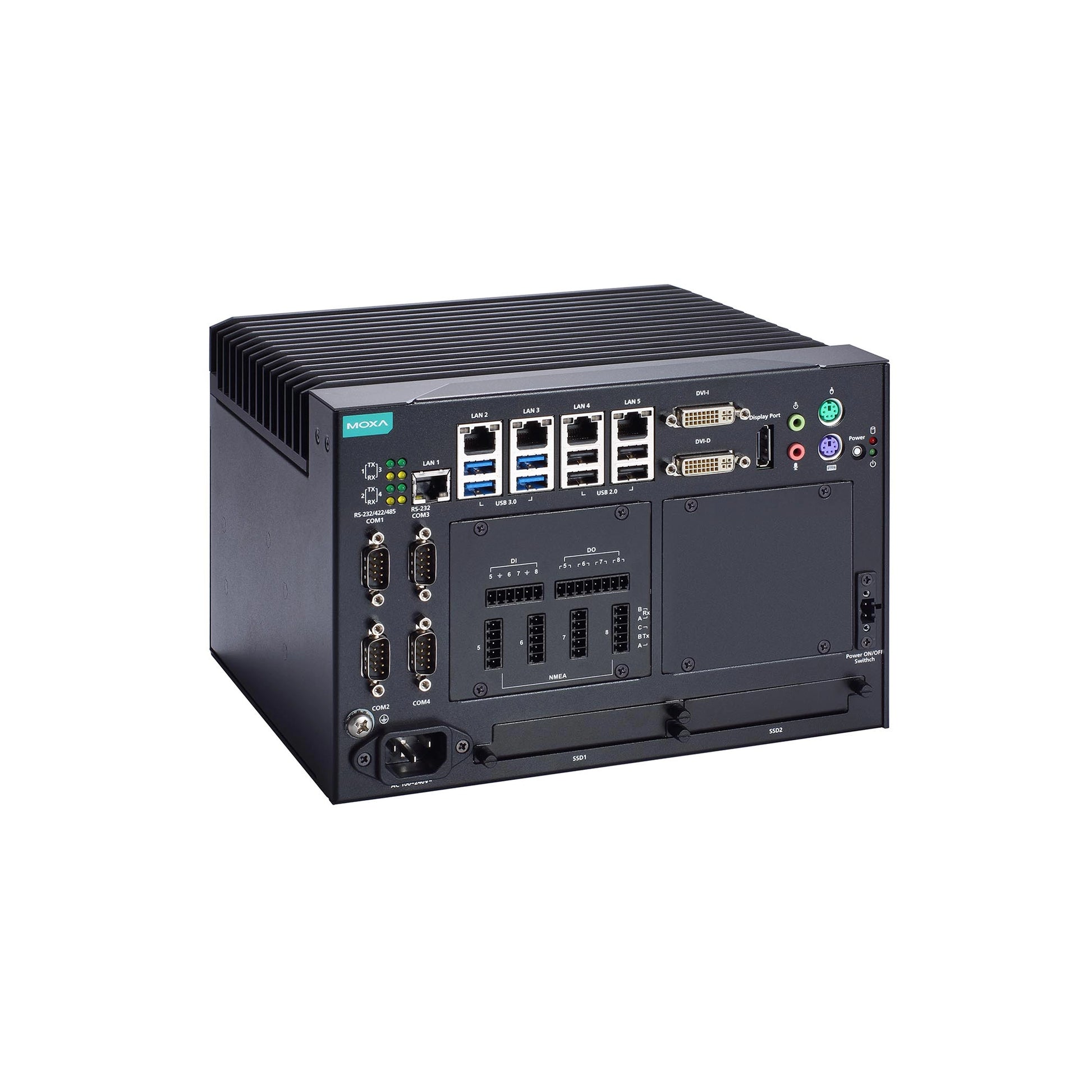

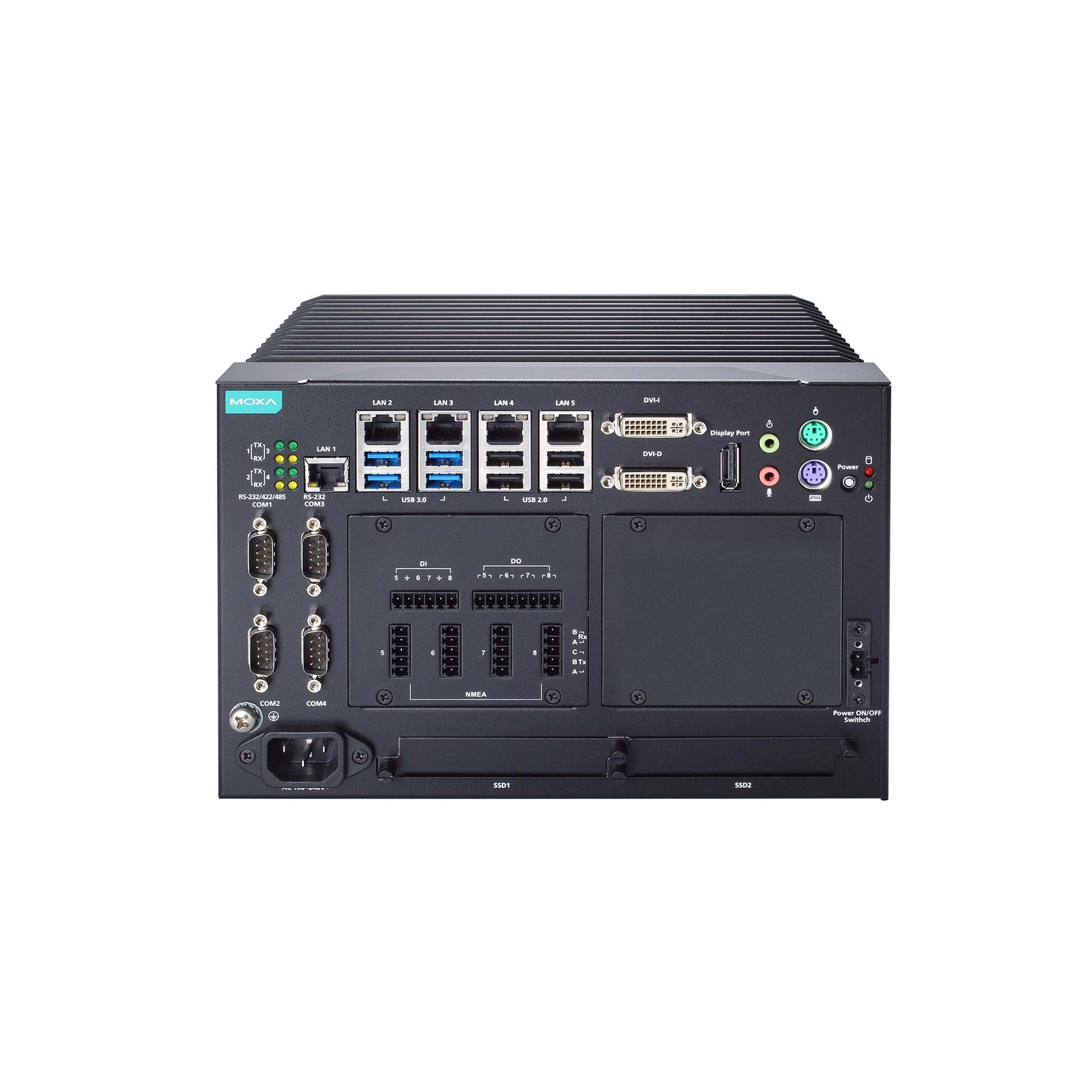

MOXA MC-7420-C7-DC Industrial Computer

MOXA MC-7420-C7-DC Industrial Computer
$7,277.00 CAD
$7,277.00 CAD
Special Offer Out of Stock

Features and Benefits

  • CPU: Intel® Core™ i7-6822EQ Processor
  • 5 x 10/100/1000 Mbps Ethernet ports
  • 2 x RS-232 and 2 x RS-232/422/485 Serial ports
  • 4 x DIs and 4 x DOs, 4 x NMEA Ports
  • Metal body design
  • 24VDC input power range
  • -20 to 55°C operating temperature range
View full details

Description

Introduction
The MC-7400 Series marine computers are powered by the 6th generation Intel® Core™ i5/i7 processor, delivering a full range of I/O connectivity, including NMEA 0183 ports, serial ports, Gigabit Ethernet ports, as well as USB 2.0/3.0 ports and a miniPCI slot for extensions. The MC-7400 is designed to provide outstanding PC performance, bringing a new level of flexibility and control to marine applications.

Proactive Monitoring Function
Moxa Proactive Monitoring is a small, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

Data sheet

Specification

Computer
CPU : Intel® Core™ i7-6822EQ Processor (6M Cache, up to 2.80 GHz)
System Memory : SODIMM DDR4 slot x 2
Graphics Controller : Intel® HD Graphics 530
Storage Slot : 2.5" HDD/SSD slots x 2

Interface
LAN : 5 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Digital Input/Output Channels : 4 x Digital inputs, 4 x Digital outputs
Serial Ports : 2 x RS-232 ports (DB9 male),
2 x RS-232/422/485 ports, software selectable (DB9 male)
USB : 5 x USB 2.0 hosts, type-A connectors,
4 x USB 3.0 hosts, type-A connectors
Expansion Slot : 1 x Mini PCIe

Serial Communication Parameters
Baudrate : 50 bps to 115.2 kbps
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : Even, Odd, Space, Mark, None

LED Indicators
System : Power x 1, Storage x 1
LAN : 2 per port (10/100/1000 Mbps)
Serial : 2 per port (Tx, Rx)

Power Requirements
Input Voltage : 24 VDC
Power Consumption : 100 W

General
Automatic Reboot Trigger : Built-in WDT

Physical Characteristics
Dimensions : 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in)
Housing : Metal
Operating temperature : -25 to 55°C (-13 to 131°F)
Storage Temperature : -30 to 60°C (-22 to 140°F)
Relative humidity : 5 to 95% (non-condensing)
Weight : 6000 g (13.23 lb)
Mounting : Wall mounting
