Moxa

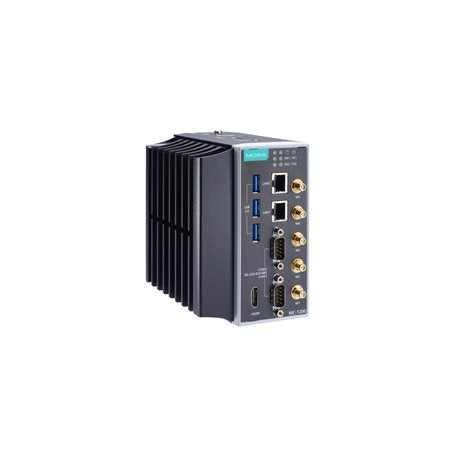

MOXA MC-1220-KL7-T-S Wide Temperature Computer

MOXA MC-1220-KL7-T-S Wide Temperature Computer

$5,297.00 CAD
$5,297.00 CAD
Sale Sold out

Features and Benefits

  • 3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
  • 7th Gen Intel® Core™ processor (Kaby Lake U)
  • 2 built-in DDR4 memory slots; total capacity up to 32 GB
  • Built-in TPM 2.0 module
  • Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports
  • -40 to 70°C operating temperature
View full details

Description

The MC-1200 Series computers are built around a 7th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The MC-1200 is equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module.

Additional value and convenience are provided through a modular design with three independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules.

With UL Class 1 Division 2 compliance, the MC-1200 is sure to deliver stable and reliable system operation for oil and gas applications. Class 1 Division 2 (C1D2) is a certification issued to products that allow them to be used in potentially hazardous environments. Examples of hazardous work settings include locations where flammable or explosive gasses, certain chemicals, airborne fibers, or vapors could be excessive under abnormal circumstances.

The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges, making them perfect for heavy industry, solar grid, water/wastewater, oil and gas, and transportation applications.

You can also find the MC-1220-KL7-T-S, MC-1220-KL5-T, and MC-1220-KL1-T-S models in the MC-1200 Series.

Data sheet

Specification

CPU: Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz)
System Memory: SODIMM DDR4 slot x 2, up to 32 GB max
USB: USB 3.0 hosts x 3, type-A connectors
Operating System: Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS); Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)
Storage: mSATA slots x 1, SATA 3.0, internal mini-PCIe socket
LAN: 2 10/100/1000BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Standards: RS-232/422/485 (software selectable)
Serial Ports: 2 x RS-232/422/485
Graphics Controller: Intel® HD Graphics 610
Display Interface: HDMI x 1, up to 3840 x 2160 resolution at 30 Hz
Input Channels: -
Input Voltage: 9 to 36 VDC
Output Channels: -
Output Voltage: -
Output Clamping Current: -
Data Bits: -
Stop Bits: -
Parity: -
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 115.2 kbps
RS-232: TxD, RxD, RTS, CTS, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
System: Power x 1
LAN: -
Serial: 2 per port (Tx, Rx)
Input Voltage: 9 to 36 VDC
Power Consumption: 72 W
Automatic Reboot Trigger: -
MTBF: 510,913 hrs
Dimensions: 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
Housing: Metal
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Relative Humidity: 5 to 95% (non-condensing)
EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A
Safety: UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: IEC 60068-2-27
EMI: -
EMS: -
Mounting: Wall mounting (with optional kit), DIN-rail mounting
