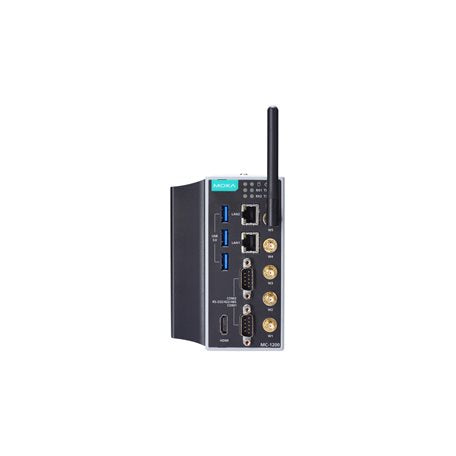

MOXA MC-1220-KL5-T Wide Temperature Computer

$5,396.00 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
7th Gen Intel® Core™ processor (Kaby Lake U)
2 built-in DDR4 memory slots; total capacity up to 32 GB
Built-in TPM 2.0 module
Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports
-40 to 70°C operating temperature

View full details

Description

Data sheet

Specification

CPU: "Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)"
System_Memory: "Up to 32 GB, SODIMM DDR4 x 2"
USB: "USB 3.0 x 3 (Type-A connectors)"
Storage: "mSATA slot x 1, SATA 3.0, internal mini-PCIe socket"
LAN: "2 10/100/1000BaseT(X) Ports (RJ45 connector)"
Magnetic_Isolation_Protection: "1.5 kV (built-in)"
Serial_Standards: "RS-232/422/485 (software selectable)"
Serial_Ports: "2 x RS-232/422/485"
Graphics_Controller: "Intel® HD Graphics 610"
Display_Interface: "HDMI x 1, up to 3840 x 2160 resolution at 30 Hz"
Operating_System: "Linux Debian 9, Windows 10 Enterprise LTSC 1809 64-bit (optional)"
Input_Voltage: "9 to 36 VDC"
Power_Consumption: "72 W"
MTBF: "510,913 hrs"
Dimensions: "134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)"
Housing: "Metal"
Operating_Temperature: "-40 to 70°C (-40 to 158°F)"
Storage_Temperature: "-40 to 75°C (-40 to 167°F)"
Relative_Humidity: "5 to 95% (non-condensing)"
EMC: "EN 55032/35, CISPR 32, FCC Part 15B Class A"
Weight: "1.40 kg (0.63 lb)"
Safety: "UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1"
Green_Product: "RoHS, CRoHS, WEEE"
Anti_Shock: "IEC 60068-2-27"
Mounting: "Wall mounting (optional kit), DIN-rail mounting"
