Moxa

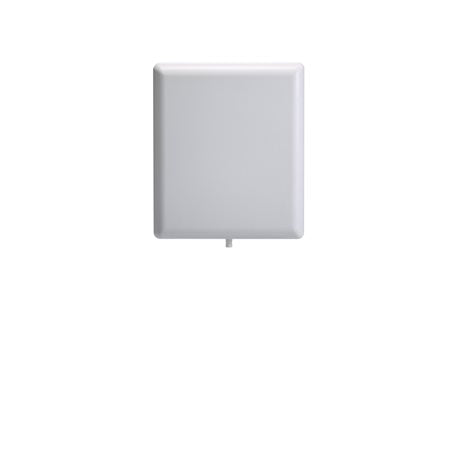

MOXA MAT-WDB-PA-NF-2-0708 WLAN ANTENNA

MOXA MAT-WDB-PA-NF-2-0708 WLAN ANTENNA

$427.00 CAD
$427.00 CAD
Sale Sold out

Features and Benefits

  • Lightweight
  • Compact form factor
  • Pole-mounting support
  • -40 to 75°C operating temperature range
View full details

Description

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with an RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.



You can also find the MAT-WDB-DA-RM-2-0203-1m model in the Antennas.

Data sheet

Specification

Antenna: Antenna Characteristics
Frequency: 2.4 to 2.5, 4.9 to 5.9 GHz
Antenna Type: MIMO 2x2, Directional, Panel
Antenna Gain: 7/8 dBi
Connector: N-type (female)
Impedance: 50 ohms
Polarization: Vertical, Vertical
Power Handling: 2 W (max.)

Antenna: Physical Characteristics
Weight: 935 g (2.06 lb)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
