Moxa

MOXA MAT-WDB-DA-RM-2-0203-1m WLAN ANTENNA

MOXA MAT-WDB-DA-RM-2-0203-1m WLAN ANTENNA

Regular price $128.00 CAD
Regular price Sale price $128.00 CAD
Sale Sold out

Features and Benefits

  • RP-SMA-type (male) connector
  • Lightweight
  • Easy to mount on the ceiling
  • -40 to 75°C operating temperature range
View full details

Description

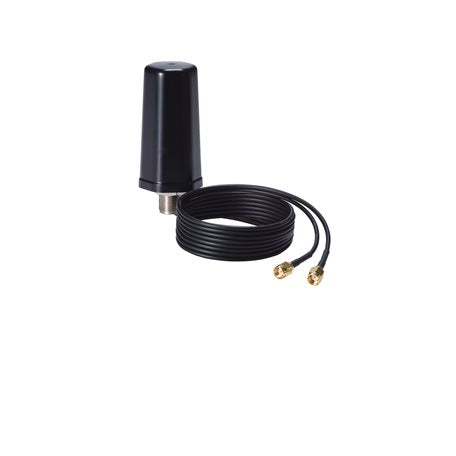

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with an RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.



You can also find the MAT-WDB-DA-RM-2-0203-1m model in the Antennas.

Specification

Antenna: Antenna Characteristics
Frequency: 2.4 to 2.5, 4.9 to 5.85 GHz
Antenna Type: MIMO 2x2, Omni-directional
Antenna Gain: 2/3 dBi
Connector: RP-SMA (male)
Impedance: 50 ohms
Polarization: Linear, Vertical
Power Handling: 2 W (max.)
Antenna: Physical Characteristics
Weight: 156 g (0.34 lb)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
