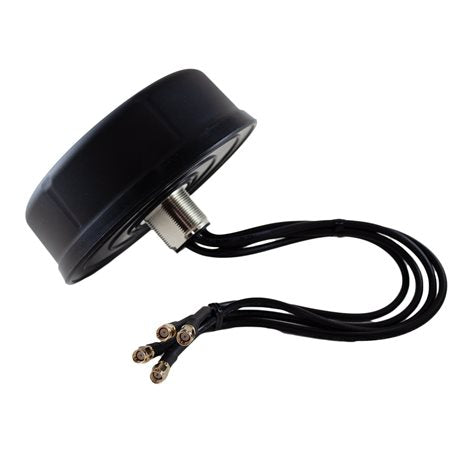

MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna

MOXA MAT-5G-PA-SM-4-05-1m Wireless MIMO Panel Antenna

$775.00 CAD
$775.00 CAD
Sale Out of Stock

Features and Benefits

  • Supports all global LTE bands
  • 3-in-1 LTE+GNSS combination design
  • High-gain antenna to enhance performance
  • Flexible installation
  • 3-meter cable
  • SMA connector (male) supported
View full details

Description

Introduction
The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

Data sheet

Specification

Antenna Characteristics
Frequency: 698 to 960, 1710 to 2700, 3300 to 5925 MHz
Antenna Type: Panel
Typical Antenna Gain: 3 dBi @ 698 to 960 MHz, 4 dBi @ 1710 to 2700 MHz, 5 dBi @ 3300 to 5925 MHz
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Linear, Vertical

Physical Characteristics
Dimensions: φ141.3 x 50 mm (φ5.56 x 1.97 in)
Radome Color: Black
Radome Material: Plastic
Installation: Pole mount, Screw mount
Cable: J195
Cable Length: 1 m
IP Rating: IP67

Environmental Limits
Operating Temperature: -30 to 70°C (-22 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty
Warranty Period: 1 year
