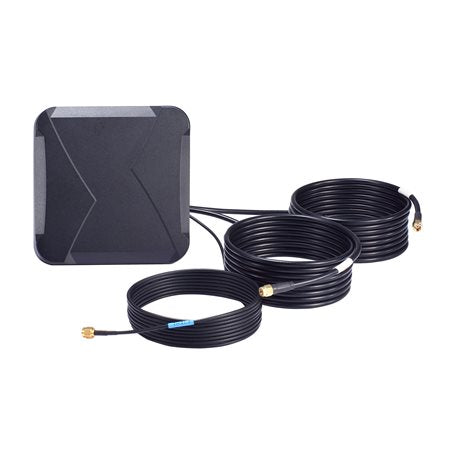

MOXA MAT-5G-PA-SM-3-06-3m Wireless MIMO Panel Antenna

MOXA MAT-5G-PA-SM-3-06-3m Wireless MIMO Panel Antenna

Regular price $822.00 CAD
Regular price Sale price $822.00 CAD
Sale Out of Stock

Features and Benefits

  • Supports all global LTE bands
  • 3-in-1 LTE+GNSS combination design
  • High-gain antenna to enhance performance
  • Flexible installation
  • 3-meter cable
  • SMA connector (male) supported
View full details

Description

Introduction
The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

Specification

Antenna Characteristics:
Frequency: 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
Antenna Type: Panel
Typical Antenna Gain:
1.55 dBi @ 617 to 698 MHz (5G NR n71), 4.32 dBi @ 698 to 824 MHz (LTE 700), 5.18 dBi @ 824 to 960 MHz (GSM 850/900), 6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76), 6.80 dBi @ 1710 to 1880 MHz (DCS), 7.10 dBi @ 1850 to 1990 MHz (PCS), 7.10 dBi @ 1920 to 2170 MHz (UMTS1), 5.41 dBi @ 2300 to 2690 MHz (LTE 2600)
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Linear, Vertical
Physical Characteristics:
Dimensions: 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
Radome Color: Black
Radome Material: Plastic
Installation: Screw mount
Cable: SNC200
Cable Length: 3 m
IP Rating: IPx9K

Environmental Limits:
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty:
Warranty Period: 1 year
