Moxa

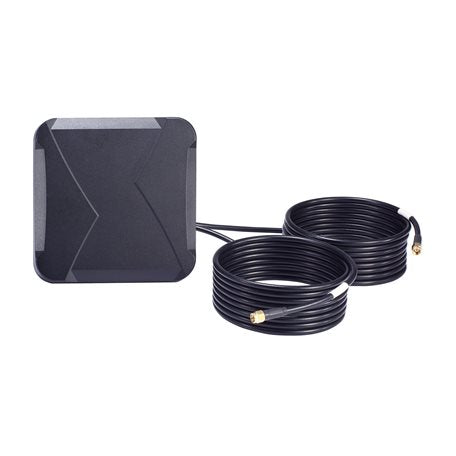

MOXA MAT-5G-PA-SM-2-06-3M WIRELESS MIMO PANEL ANTENNA

$615.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

Supports all global LTE bands
High-gain antenna to enhance performance
2-in-1 LTE combination design
Flexible installation
3-meter cable
SMA connector (male) supported

View full details

Description

Introduction
The MAT-5G-PA-SM-2-06-3m Series is a 2-in-1 panel antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

Place your order for industrial automation products, including the MOXA MAT-5G-PA-SM-2-06-3m Wireless MIMO Panel Antenna at a reasonable price, and explore convenient options to buy online through our website or inquire at our office. Enjoy the ease of online shopping and transactions for all your industrial needs.

Data sheet

Specification

Antenna Characteristics:
Frequency: 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
Antenna Type: Panel
Typical Antenna Gain:
1.55 dBi @ 617 to 698 MHz (5G NR n71), 4.32 dBi @ 698 to 824 MHz (LTE 700), 5.18 dBi @ 824 to 960 MHz (GSM 850/900), 6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76), 6.80 dBi @ 1710 to 1880 MHz (DCS), 7.10 dBi @ 1850 to 1990 MHz (PCS), 7.10 dBi @ 1920 to 2170 MHz (UMTS1), 5.41 dBi @ 2300 to 2690 MHz (LTE 2600)
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Linear, Vertical
Physical Characteristics:
Dimensions: 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
Radome Color: Black
Radome Material: Plastic
Installation: Screw mount
Cable: SNC200
Cable Length: 3 m
IP Rating: IPx9K

Environmental Limits:
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty:
Warranty Period: 1 year
