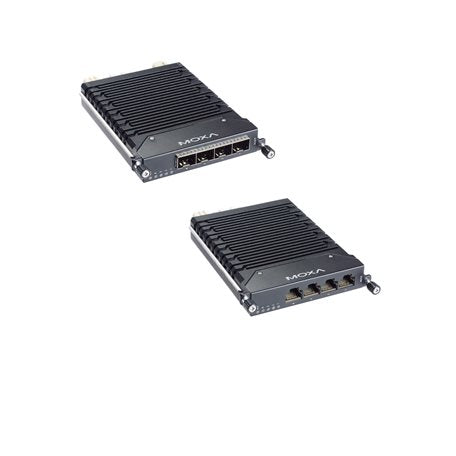

MOXA LM-7000H-4TX ETHERNET MODULE

$647.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

4 x 10/100BaseT(X) Ports
IEC 61850-3 and IEEE 1613 compliant
-45 to 75°C operating temperature

View full details

Description

The LM-7000H Module Series hot-swappable line modules are designed for the PT-G7828 Layer 3 and PT-G7728 Layer 2 IEC 61850-3 Ethernet switches. The line modules allow greater flexibility by letting you add 4 Gigabit Ethernet ports or PoE ports per module.

You can also find the LM-7000H-4GSFP models in the LM-7000H Module Series.

Explore the wide variety of industrial automation products we have for sale at lower prices. Choose and buy MOXA LM-7000H-4PoE Ethernet Module the ideal solutions that meet your specific needs.

Data sheet

Specification

Ethernet Interface:
PoE Ports (100/1000BaseT(X), RJ45 connector): LM-7000H-4GPoE: 4
10/100BaseT(X) Ports (RJ45 connector): 4
PoE Ports (10/100BaseT(X), RJ45 connector): -
100/1000BaseSFP Slots: LM-7000H-4GSFP: -
10/100/1000BaseT(X) Ports (RJ45 connector): -
Combo Ports (100/1000BaseT(X) PRP/HSR or 100/1000BaseSFP PRP/HSR): -
Power Parameters:
Power Consumption: 1.85 W (max.)
Physical Characteristics:
Weight: 0.24 kg (0.53 lb)
MTBF Time: 2,640,462 hrs
Standards: Telcordia (Bellcore), GB
Warranty: 5 years
