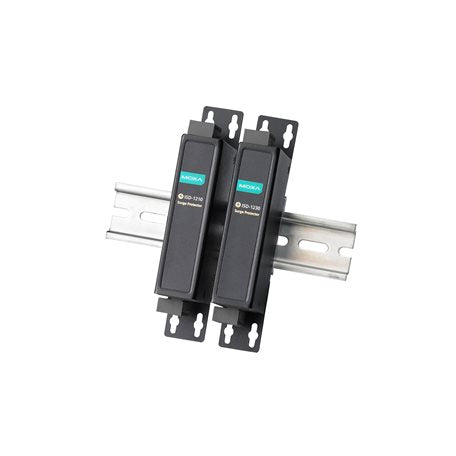

MOXA ISD-1230-T DATA LINE SURGE PROTECTORS

MOXA ISD-1230-T DATA LINE SURGE PROTECTORS

$240.00 CAD
$240.00 CAD
Sale Sold out

Features and Benefits

  • Plug and play
  •  IEC 61643-21 C2 20-kV surge protection for serial data lines
  •  Supports RS-232 or RS-422/485
  •  Compact size for easy installation
  •  Wide-temperature model available for -40 to 85°C environments
View full details

Description

The ISD-1210-T/1230-T Series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1210-T/1230-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.

Data sheet

Specification

Connector: Terminal block
Serial_standards: ISD-1230-T: RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps
Serial_signals: RS-232: TxD, RxD, RTS, CTS, GND, RS-422: Tx+, Tx-, Rx+, Rx-, GND, RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND, RS-485-2w: Data+, Data-, GND
Housing: Metal
IP Rating: IP30
Dimensions: 95 x 53 x 25 mm (3.74 x 2.01 x 0.98 in)
Weight: Packaged: 274 g (0.60 lb), Product only: 212 g (0.46 lb)
Installation: DIN-rail mounting
