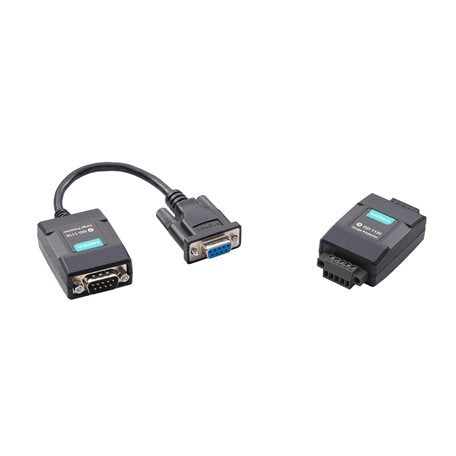

MOXA ISD-1110-T DATA LINE SURGE PROTECTORS

MOXA ISD-1110-T DATA LINE SURGE PROTECTORS

$95.00 CAD
$95.00 CAD
Sale Sold out

Features and Benefits

  •  Plug and play
  •  EN 61000-4-5 Level 4 surge protection for serial data lines
  •  Supports RS-232 or RS-422/485
  •  Compact size for easy installation
  •  Wide-temperature model available for -40 to 85°C environments
View full details

Description

The ISD-1110-T/1130-T Series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1110-T/1130-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.

Data sheet

Specification

Connector: DB9 male
Serial Standards: RS-232
Baudrate: 50 bps to 921.6 kbps
Serial Signals:
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Housing: Plastic
IP Rating: IP30
Dimensions: 53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in)
Installation: Desktop
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (Package Included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
EMS: IEC 61000-4-5 Surge: Signal: 4 kV
Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3
Safety: EN 60950-1, IEC 60950-1
Vibration: IEC 60068-2-6
MTBF: 62,642,538 hrs
Warranty Period: 5 years
