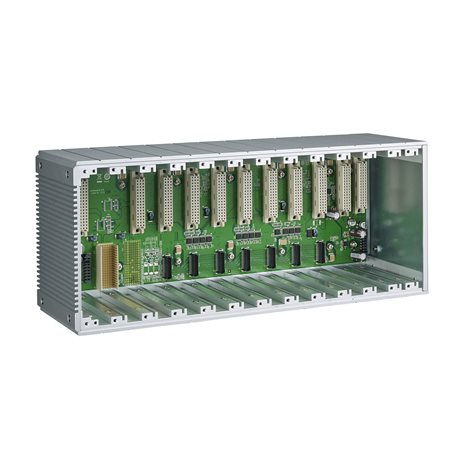

Modular Controller Overview:
Computer:
CPU: Not specified
Operating System: Not specified
Clock: Real-time clock with battery backup
RAM: 512 MB DDR3(L)
microSD Slot: Up to 32 GB (SD 2.0 compatible)
Control Logic:
Programming Language: Not specified
Ethernet Interface:
LAN Ports: Not specified
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface:
Number of Ports: 1 x RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Serial Standards: RS-232
Power Requirements:
Input Voltage: 24 to 110 VDC
Power Consumption: 223 mA @ 24 VDC
Power Connector: Spring-type Euroblock terminal
General Information:
MTBF: 1,358,656 hours
Standards and Certifications: EMC, EMI, EMS, EN 50121-4, EN 50155, Safety, Shock, Vibration
Supported Protocols:
Modbus TCP Client: Master
Modbus TCP Server: Slave
Moxa AOPC: Active Tag
SNMPv1 v2c Trap: Yes
SNMPv1 v2c v3: Yes
BOOTP: Yes
IPv4: Yes
SMTP: Yes
UDP: Yes
TCP IP: Yes
Physical Characteristics:
Housing: Metal
Dimensions: 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in)
Weight: 2,560 g (5.64 lb)
Installation: Wall mounting (with optional kit)
Environmental Conditions:
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
