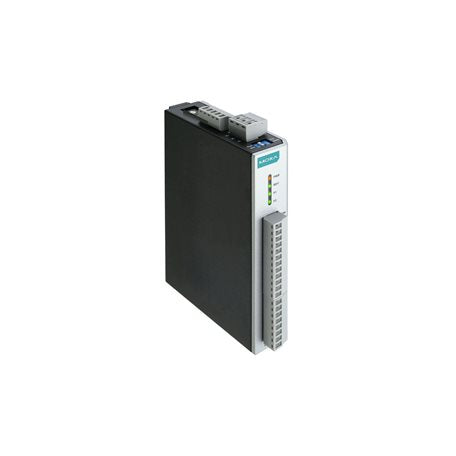

MOXA IOLOGIK R1241-T ETHERNET REMOTE I/O

MOXA IOLOGIK R1241-T ETHERNET REMOTE I/O

$643.00 CAD
$643.00 CAD
Sale Sold out

Features and Benefits

  • 4 x AO
  • 2 x RS-485 serial ports
  • 12 to 48 VDC power input
  • Plastic body
  • -40 to 85°C operating temperature
View full details

Description

process control I/O system. Remote serial I/O products offer process engineers the benefit of simple wiring, as they only require two wires to communicate with the controller and other RS-485 devices while adopting the EIA/TIA RS-485 communication protocol to transmit and receive data at high speed over long distances. In addition to communication configuration by software or USB and dual RS-485 port design, Moxa’s remote I/O devices eliminate the nightmare of extensive labor associated with the setup and maintenance of data acquisition and automation systems. Moxa also offers different I/O combinations, which provide greater flexibility and are compatible with many different applications.

Data sheet

Specification

Digital Input and Output: No
Adjustable Digital Input and Output: No
Analog Input and Output: Yes (4 analog outputs)
Relay Output: No
Thermal Sensor Input (RTD): No
Thermocouple Input: No
LAN: No
Serial Port: Yes (2 RS-485 terminal connections)
Protocols: Modbus RTU (slave)
Compatible Softwares: ioSearch
Standards/Certifications: Safety: UL 508; EMC: EN 55022/24, EMI: CISPR 22, FCC Part 15B Class A, EMS: IEC 61000-4-2; ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3; RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8; Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6, Green Product: RoHS; CRoHS; WEEE
Operating Temperature: -40 to 85 °C
Storage Temperature: -40 to 85 °C
Operation Humidity: 5% to 95% Non-condensing
