Moxa

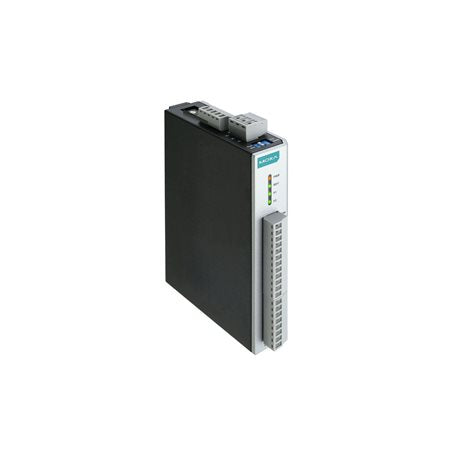

MOXA IOLOGIK R1212-T ETHERNET REMOTE I/O

MOXA IOLOGIK R1212-T ETHERNET REMOTE I/O

Regular price $346.00 CAD
Regular price Sale price $346.00 CAD
Sale Sold out

Features and Benefits

  • 8 x DI, 8 x DIO
  • 2 x RS-485 serial ports
  • 12 to 48 VDC power input
  • Plastic body
  • -40 to 85°C operating temperature
View full details

Description

process control I/O system. Remote serial I/O products offer process engineers the benefit of simple wiring, as they only require two wires to communicate with the controller and other RS-485 devices while adopting the EIA/TIA RS-485 communication protocol to transmit and receive data at high speed over long distances. In addition to communication configuration by software or USB and dual RS-485 port design, Moxa’s remote I/O devices eliminate the nightmare of extensive labor associated with the setup and maintenance of data acquisition and automation systems. Moxa also offers different I/O combinations, which provide greater flexibility and are compatible with many different applications.

Specification

Digital Input: Yes (8 inputs)
Adjustable Digital I/O: Yes (8 inputs/outputs)
Analog I/O: No
Relay Output: No
Thermal Sensor (RTD): No
Thermocouple Input: No
LAN: No
Serial Port: RS-485 (2 connections)
Protocols: Modbus RTU (Slave)
Compatible Software: ioSearch
Standards/Certifications: UL 508, EN 55022/24, CISPR 22, FCC Part 15B Class A, IEC 61000-4-2/3/4/5/6/8, IEC 60068-2-27/6; RoHS, CRoHS, WEEE
Operating Temperature: -40 to 85 °C
Storage Temperature: -40 to 85 °C
Operation Humidity: 5% to 95% Non-condensing
